Inheritance diagram for ripple::NodeStore::NuDBBackend:

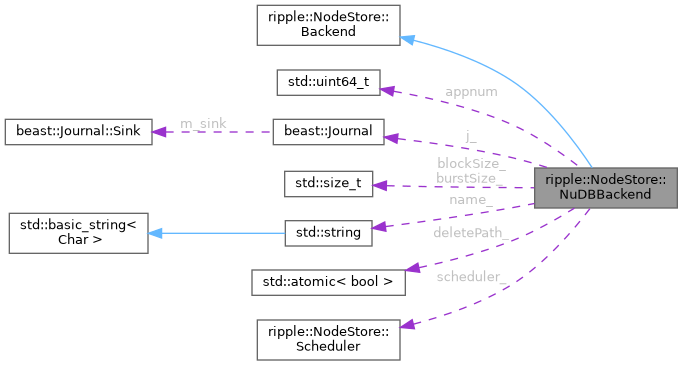

Collaboration diagram for ripple::NodeStore::NuDBBackend:

[legend]

Public Member Functions
	NuDBBackend (size_t keyBytes, Section const &keyValues, std::size_t burstSize, Scheduler &scheduler, beast::Journal journal)

	NuDBBackend (size_t keyBytes, Section const &keyValues, std::size_t burstSize, Scheduler &scheduler, nudb::context &context, beast::Journal journal)

	~NuDBBackend () override

std::string	getName () override
	Get the human-readable name of this backend.

std::optional< std::size_t >	getBlockSize () const override
	Get the block size for backends that support it.

void	open (bool createIfMissing, uint64_t appType, uint64_t uid, uint64_t salt) override
	Open the backend.

bool	isOpen () override
	Returns true is the database is open.

void	open (bool createIfMissing) override
	Open the backend.

void	close () override
	Close the backend.

Status	fetch (void const key, std::shared_ptr< NodeObject > pno) override
	Fetch a single object.

std::pair< std::vector< std::shared_ptr< NodeObject > >, Status >	fetchBatch (std::vector< uint256 const * > const &hashes) override
	Fetch a batch synchronously.

void	do_insert (std::shared_ptr< NodeObject > const &no)

void	store (std::shared_ptr< NodeObject > const &no) override
	Store a single object.

void	storeBatch (Batch const &batch) override
	Store a group of objects.

void	sync () override

void	for_each (std::function< void(std::shared_ptr< NodeObject >)> f) override
	Visit every object in the database This is usually called during import.

int	getWriteLoad () override
	Estimate the number of write operations pending.

void	setDeletePath () override
	Remove contents on disk upon destruction.

void	verify () override
	Perform consistency checks on database.

int	fdRequired () const override
	Returns the number of file descriptors the backend expects to need.

Public Attributes
beast::Journal const	j_

size_t const	keyBytes_

std::size_t const	burstSize_

std::string const	name_

std::size_t const	blockSize_

nudb::store	db_

std::atomic< bool >	deletePath_

Scheduler &	scheduler_

Static Public Attributes
static constexpr std::uint64_t	appnum = 1

Static Private Member Functions
static std::size_t	parseBlockSize (std::string const &name, Section const &keyValues, beast::Journal journal)

Detailed Description

Definition at line 23 of file NuDBFactory.cpp.

Constructor & Destructor Documentation

◆ NuDBBackend() [1/2]

ripple::NodeStore::NuDBBackend::NuDBBackend	(	size_t	keyBytes,
		Section const &	keyValues,
		std::size_t	burstSize,
		Scheduler &	scheduler,
		beast::Journal	journal
	)

Definition at line 41 of file NuDBFactory.cpp.

◆ NuDBBackend() [2/2]

ripple::NodeStore::NuDBBackend::NuDBBackend	(	size_t	keyBytes,
		Section const &	keyValues,
		std::size_t	burstSize,
		Scheduler &	scheduler,
		nudb::context &	context,
		beast::Journal	journal
	)

Definition at line 60 of file NuDBFactory.cpp.

◆ ~NuDBBackend()

ripple::NodeStore::NuDBBackend::~NuDBBackend ( )

override

Definition at line 81 of file NuDBFactory.cpp.

Member Function Documentation

◆ getName()

std::string ripple::NodeStore::NuDBBackend::getName ( )

overridevirtual

Get the human-readable name of this backend.

This is used for diagnostic output.

Implements ripple::NodeStore::Backend.

Definition at line 96 of file NuDBFactory.cpp.

◆ getBlockSize()

std::optional< std::size_t > ripple::NodeStore::NuDBBackend::getBlockSize ( ) const

overridevirtual

Get the block size for backends that support it.

Reimplemented from ripple::NodeStore::Backend.

Definition at line 102 of file NuDBFactory.cpp.

◆ open() [1/2]

void ripple::NodeStore::NuDBBackend::open	(	bool	createIfMissing,
		uint64_t	appType,
		uint64_t	uid,
		uint64_t	salt
	)

overridevirtual

Open the backend.

Parameters

createIfMissing	Create the database files if necessary.
appType	Deterministic appType used to create a backend.
uid	Deterministic uid used to create a backend.
salt	Deterministic salt used to create a backend.

Exceptions

std::runtime_error is function is called not for NuDB backend.

Reimplemented from ripple::NodeStore::Backend.

Definition at line 108 of file NuDBFactory.cpp.

◆ isOpen()

bool ripple::NodeStore::NuDBBackend::isOpen ( )

overridevirtual

Returns true is the database is open.

Implements ripple::NodeStore::Backend.

Definition at line 156 of file NuDBFactory.cpp.

◆ open() [2/2]

void ripple::NodeStore::NuDBBackend::open ( bool createIfMissing )

overridevirtual

Open the backend.

Parameters

createIfMissing Create the database files if necessary. This allows the caller to catch exceptions.

Implements ripple::NodeStore::Backend.

Definition at line 162 of file NuDBFactory.cpp.

◆ close()

void ripple::NodeStore::NuDBBackend::close ( )

overridevirtual

Close the backend.

This allows the caller to catch exceptions.

Implements ripple::NodeStore::Backend.

Definition at line 168 of file NuDBFactory.cpp.

◆ fetch()

Status ripple::NodeStore::NuDBBackend::fetch	(	void const *	key,
		std::shared_ptr< NodeObject > *	pObject
	)

overridevirtual

Fetch a single object.

If the object is not found or an error is encountered, the result will indicate the condition.

Note: This will be called concurrently.

Parameters

key	A pointer to the key data.
pObject	[out] The created object if successful.

Returns: The result of the operation.

Implements ripple::NodeStore::Backend.

Definition at line 194 of file NuDBFactory.cpp.

◆ fetchBatch()

std::pair< std::vector< std::shared_ptr< NodeObject > >, Status > ripple::NodeStore::NuDBBackend::fetchBatch ( std::vector< uint256 const * > const & hashes )

overridevirtual

Fetch a batch synchronously.

Implements ripple::NodeStore::Backend.

Definition at line 222 of file NuDBFactory.cpp.

◆ do_insert()

void ripple::NodeStore::NuDBBackend::do_insert ( std::shared_ptr< NodeObject > const & no )

Definition at line 240 of file NuDBFactory.cpp.

◆ store()

void ripple::NodeStore::NuDBBackend::store ( std::shared_ptr< NodeObject > const & object )

overridevirtual

Store a single object.

Depending on the implementation this may happen immediately or deferred using a scheduled task.

Note: This will be called concurrently.

Parameters

object The object to store.

Implements ripple::NodeStore::Backend.

Definition at line 252 of file NuDBFactory.cpp.

◆ storeBatch()

void ripple::NodeStore::NuDBBackend::storeBatch ( Batch const & batch )

overridevirtual

Store a group of objects.

Note: This function will not be called concurrently with itself or store.

Implements ripple::NodeStore::Backend.

Definition at line 264 of file NuDBFactory.cpp.

◆ sync()

void ripple::NodeStore::NuDBBackend::sync ( )

overridevirtual

Implements ripple::NodeStore::Backend.

Definition at line 277 of file NuDBFactory.cpp.

◆ for_each()

void ripple::NodeStore::NuDBBackend::for_each ( std::function< void(std::shared_ptr< NodeObject >)> f )

overridevirtual

Visit every object in the database This is usually called during import.

Note: This routine will not be called concurrently with itself or other methods.

See also: import

Implements ripple::NodeStore::Backend.

Definition at line 282 of file NuDBFactory.cpp.

◆ getWriteLoad()

int ripple::NodeStore::NuDBBackend::getWriteLoad ( )

overridevirtual

Estimate the number of write operations pending.

Implements ripple::NodeStore::Backend.

Definition at line 319 of file NuDBFactory.cpp.

◆ setDeletePath()

void ripple::NodeStore::NuDBBackend::setDeletePath ( )

overridevirtual

Remove contents on disk upon destruction.

Implements ripple::NodeStore::Backend.

Definition at line 325 of file NuDBFactory.cpp.

◆ verify()

void ripple::NodeStore::NuDBBackend::verify ( )

overridevirtual

Perform consistency checks on database.

This method is implemented only by NuDBBackend. It is not yet called anywhere, but it might be a good idea to one day call it at startup to avert a crash.

Reimplemented from ripple::NodeStore::Backend.

Definition at line 331 of file NuDBFactory.cpp.

◆ fdRequired()

int ripple::NodeStore::NuDBBackend::fdRequired ( ) const

overridevirtual

Returns the number of file descriptors the backend expects to need.

Implements ripple::NodeStore::Backend.

Definition at line 350 of file NuDBFactory.cpp.

◆ parseBlockSize()

static std::size_t ripple::NodeStore::NuDBBackend::parseBlockSize	(	std::string const &	name,
		Section const &	keyValues,
		beast::Journal	journal
	)

staticprivate

Definition at line 357 of file NuDBFactory.cpp.

Member Data Documentation

◆ appnum

constexpr std::uint64_t ripple::NodeStore::NuDBBackend::appnum = 1

staticconstexpr

Definition at line 30 of file NuDBFactory.cpp.

◆ j_

beast::Journal const ripple::NodeStore::NuDBBackend::j_

Definition at line 32 of file NuDBFactory.cpp.

◆ keyBytes_

size_t const ripple::NodeStore::NuDBBackend::keyBytes_

Definition at line 33 of file NuDBFactory.cpp.

◆ burstSize_

std::size_t const ripple::NodeStore::NuDBBackend::burstSize_

Definition at line 34 of file NuDBFactory.cpp.

◆ name_

std::string const ripple::NodeStore::NuDBBackend::name_

Definition at line 35 of file NuDBFactory.cpp.

◆ blockSize_

std::size_t const ripple::NodeStore::NuDBBackend::blockSize_

Definition at line 36 of file NuDBFactory.cpp.

◆ db_

nudb::store ripple::NodeStore::NuDBBackend::db_

Definition at line 37 of file NuDBFactory.cpp.

◆ deletePath_

std::atomic<bool> ripple::NodeStore::NuDBBackend::deletePath_

Definition at line 38 of file NuDBFactory.cpp.

◆ scheduler_

Scheduler& ripple::NodeStore::NuDBBackend::scheduler_

Definition at line 39 of file NuDBFactory.cpp.
