ripple::detail::BasicFullBelowCache Class Reference

Remembers which tree keys have all descendants resident. More...

#include <FullBelowCache.h>

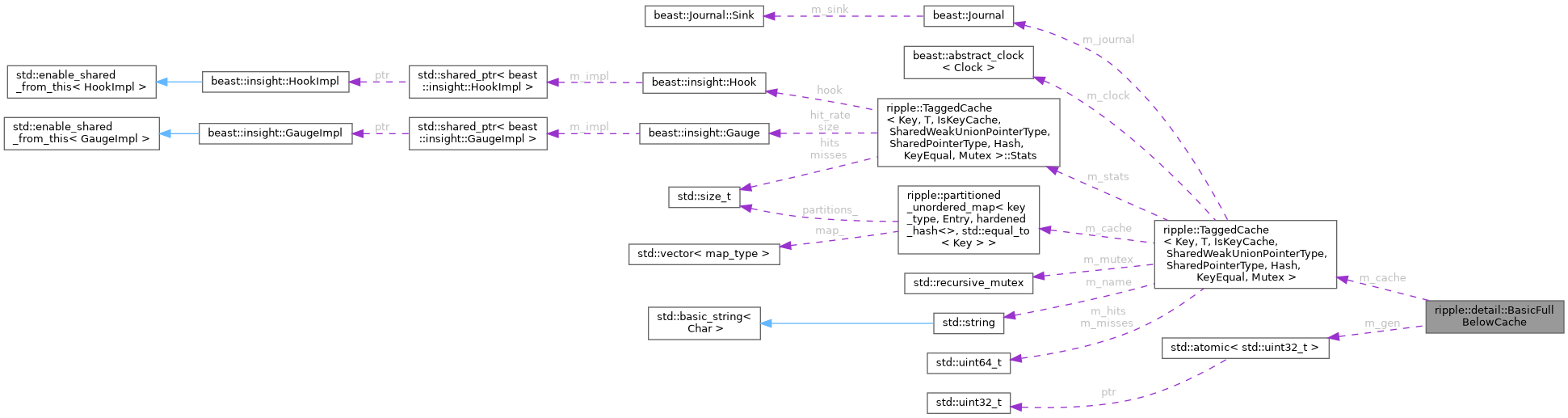

Collaboration diagram for ripple::detail::BasicFullBelowCache:

Public Types
enum	{ defaultCacheTargetSize = 0 }
using	key_type = uint256
using	clock_type = typename CacheType::clock_type

Public Member Functions
	BasicFullBelowCache (std::string const &name, clock_type &clock, beast::Journal j, beast::insight::Collector::ptr const &collector=beast::insight::NullCollector::New(), std::size_t target_size=defaultCacheTargetSize, std::chrono::seconds expiration=std::chrono::minutes{2})
	Construct the cache.
clock_type &	clock ()
	Return the clock associated with the cache.
std::size_t	size () const
	Return the number of elements in the cache.
void	sweep ()
	Remove expired cache items.
bool	touch_if_exists (key_type const &key)
	Refresh the last access time of an item, if it exists.
void	insert (key_type const &key)
	Insert a key into the cache.
std::uint32_t	getGeneration (void) const
	generation determines whether cached entry is valid
void	clear ()
void	reset ()

Private Types
using	CacheType = KeyCache

Private Attributes
CacheType	m_cache
std::atomic< std::uint32_t >	m_gen

Detailed Description

Remembers which tree keys have all descendants resident.

This optimizes the process of acquiring a complete tree.

Definition at line 39 of file FullBelowCache.h.

Member Typedef Documentation

CacheType

using ripple::detail::BasicFullBelowCache::CacheType = KeyCache

private

Definition at line 42 of file FullBelowCache.h.

key_type

using ripple::detail::BasicFullBelowCache::key_type = uint256

Definition at line 47 of file FullBelowCache.h.

clock_type

using ripple::detail::BasicFullBelowCache::clock_type = typename CacheType::clock_type

Definition at line 48 of file FullBelowCache.h.

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
defaultCacheTargetSize

Definition at line 45 of file FullBelowCache.h.

Constructor & Destructor Documentation

BasicFullBelowCache()

ripple::detail::BasicFullBelowCache::BasicFullBelowCache	(	std::string const &	name,
		clock_type &	clock,
		beast::Journal	j,
		beast::insight::Collector::ptr const &	collector = beast::insight::NullCollector::New(),
		std::size_t	target_size = defaultCacheTargetSize,
		std::chrono::seconds	expiration = std::chrono::minutes{2}
	)

Construct the cache.

Parameters

name	A label for diagnostics and stats reporting.
collector	The collector to use for reporting stats.
targetSize	The cache target size.
targetExpirationSeconds	The expiration time for items.

Definition at line 57 of file FullBelowCache.h.

Member Function Documentation

clock()

clock_type & ripple::detail::BasicFullBelowCache::clock

(

)

Return the clock associated with the cache.

Definition at line 71 of file FullBelowCache.h.

size()

std::size_t ripple::detail::BasicFullBelowCache::size

(

)

const

Return the number of elements in the cache.

Thread safety: Safe to call from any thread.

Definition at line 81 of file FullBelowCache.h.

sweep()

void ripple::detail::BasicFullBelowCache::sweep

(

)

Remove expired cache items.

Thread safety: Safe to call from any thread.

Definition at line 91 of file FullBelowCache.h.

touch_if_exists()

bool ripple::detail::BasicFullBelowCache::touch_if_exists

(

key_type const &

key

)

Refresh the last access time of an item, if it exists.

Thread safety: Safe to call from any thread.

Parameters

key	The key to refresh.

Returns

true If the key exists.

Definition at line 103 of file FullBelowCache.h.

insert()

void ripple::detail::BasicFullBelowCache::insert

(

key_type const &

key

)

Insert a key into the cache.

If the key already exists, the last access time will still be refreshed. Thread safety: Safe to call from any thread.

Parameters

key	The key to insert.

Definition at line 116 of file FullBelowCache.h.

getGeneration()

std::uint32_t ripple::detail::BasicFullBelowCache::getGeneration

(

void

)

const

generation determines whether cached entry is valid

Definition at line 123 of file FullBelowCache.h.

clear()

void ripple::detail::BasicFullBelowCache::clear

(

)

Definition at line 129 of file FullBelowCache.h.

reset()

void ripple::detail::BasicFullBelowCache::reset

(

)

Definition at line 136 of file FullBelowCache.h.

Member Data Documentation

m_cache

CacheType ripple::detail::BasicFullBelowCache::m_cache

private

Definition at line 143 of file FullBelowCache.h.

m_gen

std::atomic<std::uint32_t> ripple::detail::BasicFullBelowCache::m_gen

private

Definition at line 144 of file FullBelowCache.h.
