Slot is associated with a specific validator via validator's public key. More...

#include <Slot.h>

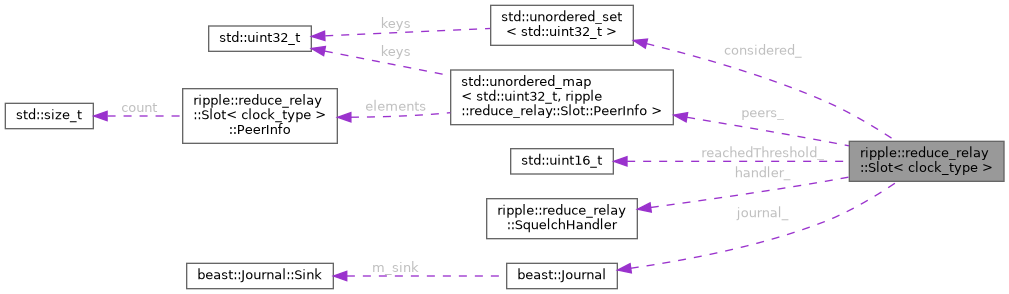

Collaboration diagram for ripple::reduce_relay::Slot< clock_type >:

[legend]

Classes
struct	PeerInfo
	Data maintained for each peer. More...

Private Types
using	id_t = Peer::id_t

using	time_point = typename clock_type::time_point

using	ignored_squelch_callback = std::function< void()>

Private Member Functions
	Slot (SquelchHandler const &handler, beast::Journal journal, uint16_t maxSelectedPeers)
	Constructor.

void	update (PublicKey const &validator, id_t id, protocol::MessageType type, ignored_squelch_callback callback)
	Update peer info.

void	deletePeer (PublicKey const &validator, id_t id, bool erase)
	Handle peer deletion when a peer disconnects.

time_point const &	getLastSelected () const
	Get the time of the last peer selection round.

std::uint16_t	inState (PeerState state) const
	Return number of peers in state.

std::uint16_t	notInState (PeerState state) const
	Return number of peers not in state.

SlotState	getState () const
	Return Slot's state.

std::set< id_t >	getSelected () const
	Return selected peers.

std::unordered_map< id_t, std::tuple< PeerState, uint16_t, uint32_t, uint32_t > >	getPeers () const
	Get peers info.

void	deleteIdlePeer (PublicKey const &validator)
	Check if peers stopped relaying messages.

std::chrono::seconds	getSquelchDuration (std::size_t npeers)
	Get random squelch duration between MIN_UNSQUELCH_EXPIRE and min(max(MAX_UNSQUELCH_EXPIRE_DEFAULT, SQUELCH_PER_PEER * npeers), MAX_UNSQUELCH_EXPIRE_PEERS)

void	resetCounts ()
	Reset counts of peers in Selected or Counting state.

void	initCounting ()
	Initialize slot to Counting state.

Private Attributes
std::unordered_map< id_t, PeerInfo >	peers_

std::unordered_set< id_t >	considered_

std::uint16_t	reachedThreshold_

clock_type::time_point	lastSelected_

SlotState	state_

SquelchHandler const &	handler_

beast::Journal const	journal_

uint16_t const	maxSelectedPeers_

Friends
class	Slots< clock_type >

Detailed Description

template<typename clock_type>
class ripple::reduce_relay::Slot< clock_type >

Slot is associated with a specific validator via validator's public key.

Slot counts messages from a validator, selects peers to be the source of the messages, and communicates the peers to be squelched. Slot can be in the following states: 1) Counting. This is the peer selection state when Slot counts the messages and selects the peers; 2) Selected. Slot doesn't count messages in Selected state. A message received from unsquelched, disconnected peer, or idling peer may transition Slot to Counting state.

Definition at line 86 of file overlay/Slot.h.

Member Typedef Documentation

◆ id_t

template<typename clock_type >

using ripple::reduce_relay::Slot< clock_type >::id_t = Peer::id_t

private

Definition at line 90 of file overlay/Slot.h.

◆ time_point

template<typename clock_type >

using ripple::reduce_relay::Slot< clock_type >::time_point = typename clock_type::time_point

private

Definition at line 91 of file overlay/Slot.h.

◆ ignored_squelch_callback

template<typename clock_type >

using ripple::reduce_relay::Slot< clock_type >::ignored_squelch_callback = std::function<void()>

private

Definition at line 94 of file overlay/Slot.h.

Constructor & Destructor Documentation

◆ Slot()

template<typename clock_type >

ripple::reduce_relay::Slot< clock_type >::Slot	(	SquelchHandler const &	handler,
		beast::Journal	journal,
		uint16_t	maxSelectedPeers
	)

private

Constructor.

Parameters

journal	Journal for logging
handler	Squelch/Unsquelch implementation
maxSelectedPeers	the maximum number of peers to be selected as validator message source

Definition at line 102 of file overlay/Slot.h.

Member Function Documentation

◆ update()

template<typename clock_type >

void ripple::reduce_relay::Slot< clock_type >::update	(	PublicKey const &	validator,
		id_t	id,
		protocol::MessageType	type,
		ignored_squelch_callback	callback
	)

private

Update peer info.

If the message is from a new peer or from a previously expired squelched peer then switch the peer's and slot's state to Counting. If time of last selection round is > 2 * MAX_UNSQUELCH_EXPIRE_DEFAULT then switch the slot's state to Counting. If the number of messages for the peer is > MIN_MESSAGE_THRESHOLD then add peer to considered peers pool. If the number of considered peers who reached MAX_MESSAGE_THRESHOLD is maxSelectedPeers_ then randomly select maxSelectedPeers_ from considered peers, and call squelch handler for each peer, which is not selected and not already in Squelched state. Set the state for those peers to Squelched and reset the count of all peers. Set slot's state to Selected. Message count is not updated when the slot is in Selected state.

Parameters

validator	Public key of the source validator
id	Peer id which received the message
type	Message type (Validation and Propose Set only, others are ignored, future use)
callback	A callback to report ignored squelches

Definition at line 268 of file overlay/Slot.h.

◆ deletePeer()

template<typename clock_type >

void ripple::reduce_relay::Slot< clock_type >::deletePeer	(	PublicKey const &	validator,
		id_t	id,
		bool	erase
	)

private

Handle peer deletion when a peer disconnects.

If the peer is in Selected state then call unsquelch handler for every peer in squelched state and reset every peer's state to Counting. Switch Slot's state to Counting.

Parameters

validator	Public key of the source validator
id	Deleted peer id
erase	If true then erase the peer. The peer is not erased when the peer when is idled. The peer is deleted when it disconnects

Definition at line 425 of file overlay/Slot.h.

◆ getLastSelected()

template<typename clock_type >

time_point const & ripple::reduce_relay::Slot< clock_type >::getLastSelected ( ) const

private

Get the time of the last peer selection round.

Definition at line 156 of file overlay/Slot.h.

◆ inState()

template<typename clock_type >

std::uint16_t ripple::reduce_relay::Slot< clock_type >::inState ( PeerState state ) const

private

Return number of peers in state.

Definition at line 495 of file overlay/Slot.h.

◆ notInState()

template<typename clock_type >

std::uint16_t ripple::reduce_relay::Slot< clock_type >::notInState ( PeerState state ) const

private

Return number of peers not in state.

Definition at line 504 of file overlay/Slot.h.

◆ getState()

template<typename clock_type >

SlotState ripple::reduce_relay::Slot< clock_type >::getState ( ) const

private

Return Slot's state.

Definition at line 171 of file overlay/Slot.h.

◆ getSelected()

template<typename clock_type >

std::set< typename Peer::id_t > ripple::reduce_relay::Slot< clock_type >::getSelected ( ) const

private

Return selected peers.

Definition at line 513 of file overlay/Slot.h.

◆ getPeers()

template<typename clock_type >

std::unordered_map< typename Peer::id_t, std::tuple< PeerState, uint16_t, uint32_t, uint32_t > > ripple::reduce_relay::Slot< clock_type >::getPeers ( ) const

private

Get peers info.

Return map of peer's state, count, squelch expiration milsec, and last message time milsec.

Definition at line 526 of file overlay/Slot.h.

◆ deleteIdlePeer()

template<typename clock_type >

void ripple::reduce_relay::Slot< clock_type >::deleteIdlePeer ( PublicKey const & validator )

private

Check if peers stopped relaying messages.

If a peer is selected peer then call unsquelch handler for all currently squelched peers and switch the slot to Counting state.

Parameters

validator Public key of the source validator

Definition at line 245 of file overlay/Slot.h.

◆ getSquelchDuration()

template<typename clock_type >

std::chrono::seconds ripple::reduce_relay::Slot< clock_type >::getSquelchDuration ( std::size_t npeers )

private

Get random squelch duration between MIN_UNSQUELCH_EXPIRE and min(max(MAX_UNSQUELCH_EXPIRE_DEFAULT, SQUELCH_PER_PEER * npeers), MAX_UNSQUELCH_EXPIRE_PEERS)

Parameters

npeers number of peers that can be squelched in the Slot

Definition at line 409 of file overlay/Slot.h.

◆ resetCounts()

template<typename clock_type >

void ripple::reduce_relay::Slot< clock_type >::resetCounts ( )

private

Reset counts of peers in Selected or Counting state.

Definition at line 474 of file overlay/Slot.h.

◆ initCounting()

template<typename clock_type >

void ripple::reduce_relay::Slot< clock_type >::initCounting ( )

private

Initialize slot to Counting state.

Definition at line 485 of file overlay/Slot.h.

Friends And Related Symbol Documentation

◆ Slots< clock_type >

template<typename clock_type >

friend class Slots< clock_type >

friend

Definition at line 72 of file overlay/Slot.h.

Member Data Documentation

◆ peers_

template<typename clock_type >

std::unordered_map<id_t, PeerInfo> ripple::reduce_relay::Slot< clock_type >::peers_

private

Definition at line 222 of file overlay/Slot.h.

◆ considered_

template<typename clock_type >

std::unordered_set<id_t> ripple::reduce_relay::Slot< clock_type >::considered_

private

Definition at line 226 of file overlay/Slot.h.

◆ reachedThreshold_

template<typename clock_type >

std::uint16_t ripple::reduce_relay::Slot< clock_type >::reachedThreshold_

private

Definition at line 229 of file overlay/Slot.h.

◆ lastSelected_

template<typename clock_type >

clock_type::time_point ripple::reduce_relay::Slot< clock_type >::lastSelected_

private

Definition at line 232 of file overlay/Slot.h.

◆ state_

template<typename clock_type >

SlotState ripple::reduce_relay::Slot< clock_type >::state_

private

Definition at line 234 of file overlay/Slot.h.

◆ handler_

template<typename clock_type >

SquelchHandler const& ripple::reduce_relay::Slot< clock_type >::handler_

private

Definition at line 235 of file overlay/Slot.h.

◆ journal_

template<typename clock_type >

beast::Journal const ripple::reduce_relay::Slot< clock_type >::journal_

private

Definition at line 236 of file overlay/Slot.h.

◆ maxSelectedPeers_

template<typename clock_type >

uint16_t const ripple::reduce_relay::Slot< clock_type >::maxSelectedPeers_

private

Definition at line 240 of file overlay/Slot.h.
