Slots is a container for validator's Slot and handles Slot update when a message is received from a validator. More...

#include <Slot.h>

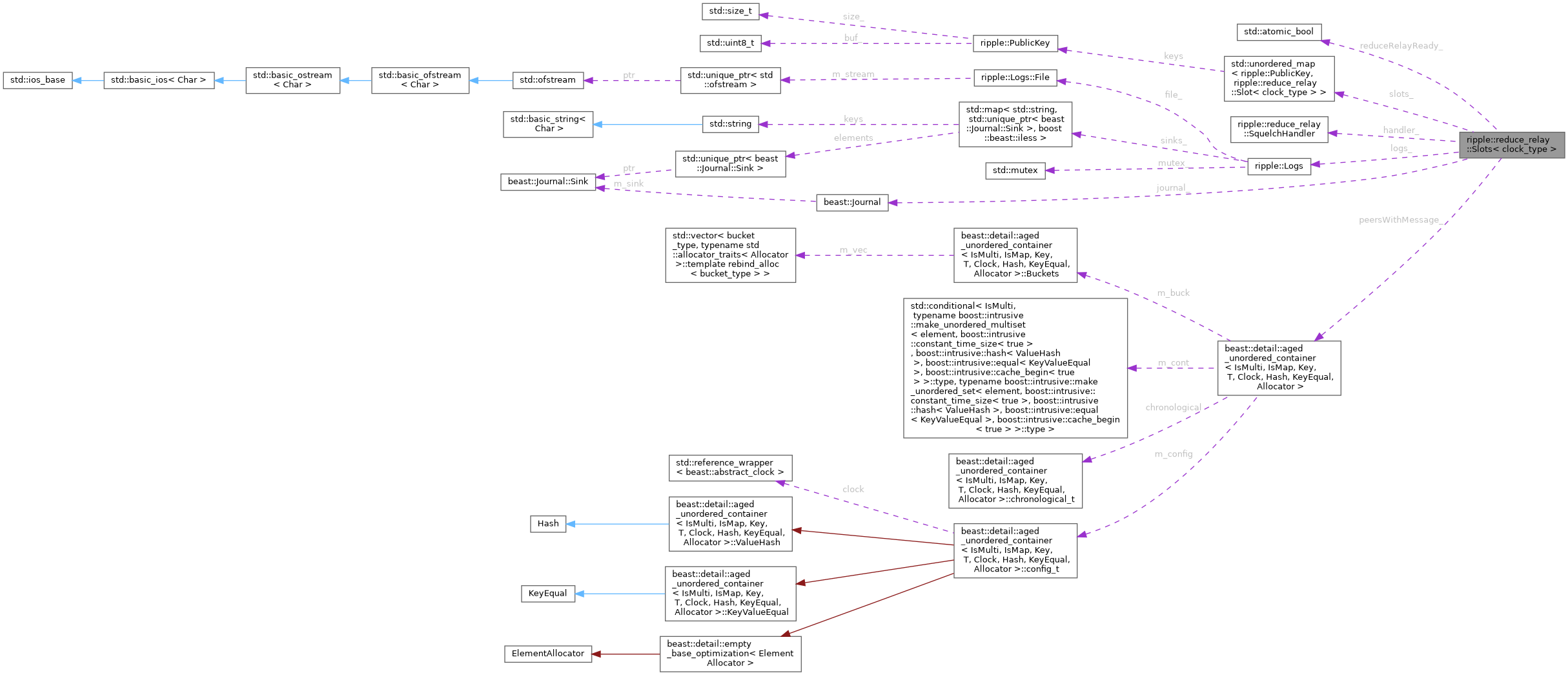

Collaboration diagram for ripple::reduce_relay::Slots< clock_type >:

[legend]

Public Member Functions
	Slots (Logs &logs, SquelchHandler const &handler, Config const &config)

	~Slots ()=default

bool	baseSquelchReady ()
	Check if base squelching feature is enabled and ready.

bool	reduceRelayReady ()
	Check if reduce_relay::WAIT_ON_BOOTUP time passed since startup.

void	updateSlotAndSquelch (uint256 const &key, PublicKey const &validator, id_t id, protocol::MessageType type)
	Calls Slot::update of Slot associated with the validator, with a noop callback.

void	updateSlotAndSquelch (uint256 const &key, PublicKey const &validator, id_t id, protocol::MessageType type, typename Slot< clock_type >::ignored_squelch_callback callback)
	Calls Slot::update of Slot associated with the validator.

void	deleteIdlePeers ()
	Check if peers stopped relaying messages and if slots stopped receiving messages from the validator.

std::optional< std::uint16_t >	inState (PublicKey const &validator, PeerState state) const
	Return number of peers in state.

std::optional< std::uint16_t >	notInState (PublicKey const &validator, PeerState state) const
	Return number of peers not in state.

bool	inState (PublicKey const &validator, SlotState state) const
	Return true if Slot is in state.

std::set< id_t >	getSelected (PublicKey const &validator)
	Get selected peers.

std::unordered_map< typename Peer::id_t, std::tuple< PeerState, uint16_t, uint32_t, std::uint32_t > >	getPeers (PublicKey const &validator)
	Get peers info.

std::optional< SlotState >	getState (PublicKey const &validator)
	Get Slot's state.

void	deletePeer (id_t id, bool erase)
	Called when a peer is deleted.

Private Types
using	time_point = typename clock_type::time_point

using	id_t = typename Peer::id_t

using	messages = beast::aged_unordered_map< uint256, std::unordered_set< Peer::id_t >, clock_type, hardened_hash< strong_hash > >

Private Member Functions
bool	addPeerMessage (uint256 const &key, id_t id)
	Add message/peer if have not seen this message from the peer.

Private Attributes
std::atomic_bool	reduceRelayReady_ {false}

hash_map< PublicKey, Slot< clock_type > >	slots_

SquelchHandler const &	handler_

Logs &	logs_

beast::Journal const	journal_

bool const	baseSquelchEnabled_

uint16_t const	maxSelectedPeers_

Static Private Attributes
static messages	peersWithMessage_

Detailed Description

template<typename clock_type>
class ripple::reduce_relay::Slots< clock_type >

Slots is a container for validator's Slot and handles Slot update when a message is received from a validator.

It also handles Slot aging and checks for peers which are disconnected or stopped relaying the messages.

Definition at line 550 of file overlay/Slot.h.

Member Typedef Documentation

◆ time_point

template<typename clock_type >

using ripple::reduce_relay::Slots< clock_type >::time_point = typename clock_type::time_point

private

Definition at line 552 of file overlay/Slot.h.

◆ id_t

template<typename clock_type >

using ripple::reduce_relay::Slots< clock_type >::id_t = typename Peer::id_t

private

Definition at line 553 of file overlay/Slot.h.

◆ messages

template<typename clock_type >

using ripple::reduce_relay::Slots< clock_type >::messages = beast::aged_unordered_map< uint256, std::unordered_set<Peer::id_t>, clock_type, hardened_hash<strong_hash> >

private

Definition at line 554 of file overlay/Slot.h.

Constructor & Destructor Documentation

◆ Slots()

template<typename clock_type >

ripple::reduce_relay::Slots< clock_type >::Slots	(	Logs &	logs,
		SquelchHandler const &	handler,
		Config const &	config
	)

Parameters

logs	reference to the logger
handler	Squelch/unsquelch implementation
config	reference to the global config

Definition at line 566 of file overlay/Slot.h.

◆ ~Slots()

template<typename clock_type >

ripple::reduce_relay::Slots< clock_type >::~Slots ( )

default

Member Function Documentation

◆ baseSquelchReady()

template<typename clock_type >

bool ripple::reduce_relay::Slots< clock_type >::baseSquelchReady ( )

Check if base squelching feature is enabled and ready.

Definition at line 578 of file overlay/Slot.h.

◆ reduceRelayReady()

template<typename clock_type >

bool ripple::reduce_relay::Slots< clock_type >::reduceRelayReady ( )

Check if reduce_relay::WAIT_ON_BOOTUP time passed since startup.

Definition at line 585 of file overlay/Slot.h.

◆ updateSlotAndSquelch() [1/2]

template<typename clock_type >

void ripple::reduce_relay::Slots< clock_type >::updateSlotAndSquelch	(	uint256 const &	key,
		PublicKey const &	validator,
		id_t	id,
		protocol::MessageType	type
	)

Calls Slot::update of Slot associated with the validator, with a noop callback.

Parameters

key	Message's hash
validator	Validator's public key
id	Peer's id which received the message
type	Received protocol message type

Definition at line 603 of file overlay/Slot.h.

◆ updateSlotAndSquelch() [2/2]

template<typename clock_type >

void ripple::reduce_relay::Slots< clock_type >::updateSlotAndSquelch	(	uint256 const &	key,
		PublicKey const &	validator,
		id_t	id,
		protocol::MessageType	type,
		typename Slot< clock_type >::ignored_squelch_callback	callback
	)

Calls Slot::update of Slot associated with the validator.

Parameters

key	Message's hash
validator	Validator's public key
id	Peer's id which received the message
type	Received protocol message type
callback	A callback to report ignored validations

Definition at line 766 of file overlay/Slot.h.

◆ deleteIdlePeers()

template<typename clock_type >

void ripple::reduce_relay::Slots< clock_type >::deleteIdlePeers ( )

Check if peers stopped relaying messages and if slots stopped receiving messages from the validator.

Definition at line 804 of file overlay/Slot.h.

◆ inState() [1/2]

template<typename clock_type >

std::optional< std::uint16_t > ripple::reduce_relay::Slots< clock_type >::inState	(	PublicKey const &	validator,
		PeerState	state
	)		const

Return number of peers in state.

Definition at line 635 of file overlay/Slot.h.

◆ notInState()

template<typename clock_type >

std::optional< std::uint16_t > ripple::reduce_relay::Slots< clock_type >::notInState	(	PublicKey const &	validator,
		PeerState	state
	)		const

Return number of peers not in state.

Definition at line 645 of file overlay/Slot.h.

◆ inState() [2/2]

template<typename clock_type >

bool ripple::reduce_relay::Slots< clock_type >::inState	(	PublicKey const &	validator,
		SlotState	state
	)		const

Return true if Slot is in state.

Definition at line 655 of file overlay/Slot.h.

◆ getSelected()

template<typename clock_type >

std::set< id_t > ripple::reduce_relay::Slots< clock_type >::getSelected ( PublicKey const & validator )

Get selected peers.

Definition at line 665 of file overlay/Slot.h.

◆ getPeers()

template<typename clock_type >

std::unordered_map< typename Peer::id_t, std::tuple< PeerState, uint16_t, uint32_t, std::uint32_t > > ripple::reduce_relay::Slots< clock_type >::getPeers ( PublicKey const & validator )

Get peers info.

Return map of peer's state, count, and squelch expiration milliseconds.

Definition at line 679 of file overlay/Slot.h.

◆ getState()

template<typename clock_type >

std::optional< SlotState > ripple::reduce_relay::Slots< clock_type >::getState ( PublicKey const & validator )

Get Slot's state.

Definition at line 689 of file overlay/Slot.h.

◆ deletePeer()

template<typename clock_type >

void ripple::reduce_relay::Slots< clock_type >::deletePeer	(	id_t	id,
		bool	erase
	)

Called when a peer is deleted.

If the peer was selected to be the source of messages from the validator then squelched peers have to be unsquelched.

Parameters

id	Peer's id
erase	If true then erase the peer

Definition at line 796 of file overlay/Slot.h.

◆ addPeerMessage()

template<typename clock_type >

bool ripple::reduce_relay::Slots< clock_type >::addPeerMessage	(	uint256 const &	key,
		id_t	id
	)

private

Add message/peer if have not seen this message from the peer.

A message is aged after IDLED seconds. Return true if added

Definition at line 733 of file overlay/Slot.h.

Member Data Documentation

◆ reduceRelayReady_

template<typename clock_type >

std::atomic_bool ripple::reduce_relay::Slots< clock_type >::reduceRelayReady_ {false}

private

Definition at line 713 of file overlay/Slot.h.

◆ slots_

template<typename clock_type >

hash_map<PublicKey, Slot<clock_type> > ripple::reduce_relay::Slots< clock_type >::slots_

private

Definition at line 715 of file overlay/Slot.h.

◆ handler_

template<typename clock_type >

SquelchHandler const& ripple::reduce_relay::Slots< clock_type >::handler_

private

Definition at line 716 of file overlay/Slot.h.

◆ logs_

template<typename clock_type >

Logs& ripple::reduce_relay::Slots< clock_type >::logs_

private

Definition at line 717 of file overlay/Slot.h.

◆ journal_

template<typename clock_type >

beast::Journal const ripple::reduce_relay::Slots< clock_type >::journal_

private

Definition at line 718 of file overlay/Slot.h.

◆ baseSquelchEnabled_

template<typename clock_type >

bool const ripple::reduce_relay::Slots< clock_type >::baseSquelchEnabled_

private

Definition at line 720 of file overlay/Slot.h.

◆ maxSelectedPeers_

template<typename clock_type >

uint16_t const ripple::reduce_relay::Slots< clock_type >::maxSelectedPeers_

private

Definition at line 721 of file overlay/Slot.h.

◆ peersWithMessage_

template<typename clock_type >

messages ripple::reduce_relay::Slots< clock_type >::peersWithMessage_

staticprivate

Initial value:

{

beast::get_abstract_clock<clock_type>()}

Definition at line 727 of file overlay/Slot.h.
