Wraps a DigestAwareReadView to provide caching. More...

#include <CachedView.h>

Inheritance diagram for xrpl::CachedView< Base >:

[legend]

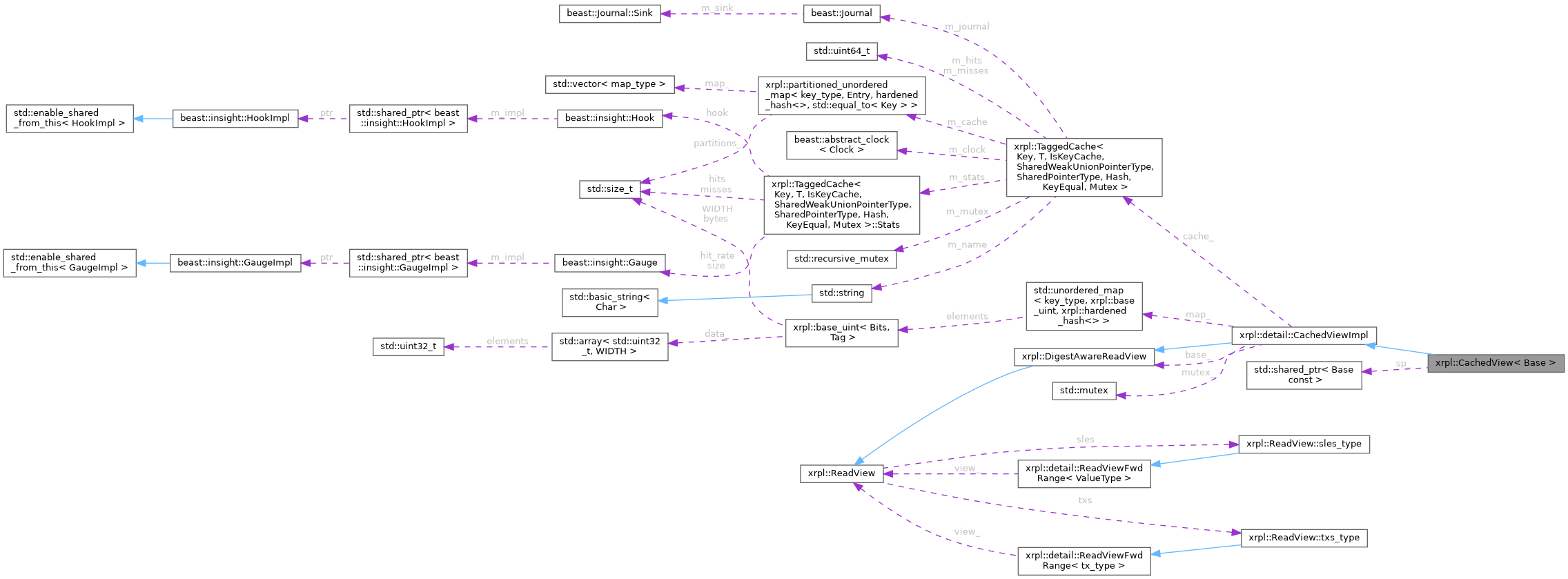

Collaboration diagram for xrpl::CachedView< Base >:

[legend]

Public Types
using	base_type = Base

using	digest_type = uint256

using	tx_type = std::pair< std::shared_ptr< STTx const >, std::shared_ptr< STObject const > >

using	key_type = uint256

using	mapped_type = std::shared_ptr< SLE const >

Public Member Functions
	CachedView ()=delete

	CachedView (CachedView const &)=delete

CachedView &	operator= (CachedView const &)=delete

	CachedView (std::shared_ptr< Base const > const &base, CachedSLEs &cache)

std::shared_ptr< Base const > const &	base () const
	Returns the base type.

bool	exists (Keylet const &k) const override
	Determine if a state item exists.

std::shared_ptr< SLE const >	read (Keylet const &k) const override
	Return the state item associated with a key.

bool	open () const override
	Returns true if this reflects an open ledger.

LedgerHeader const &	header () const override
	Returns information about the ledger.

Fees const &	fees () const override
	Returns the fees for the base ledger.

Rules const &	rules () const override
	Returns the tx processing rules.

std::optional< key_type >	succ (key_type const &key, std::optional< key_type > const &last=std::nullopt) const override
	Return the key of the next state item.

std::unique_ptr< sles_type::iter_base >	slesBegin () const override

std::unique_ptr< sles_type::iter_base >	slesEnd () const override

std::unique_ptr< sles_type::iter_base >	slesUpperBound (uint256 const &key) const override

virtual std::unique_ptr< sles_type::iter_base >	slesUpperBound (key_type const &key) const =0

std::unique_ptr< txs_type::iter_base >	txsBegin () const override

std::unique_ptr< txs_type::iter_base >	txsEnd () const override

bool	txExists (key_type const &key) const override
	Returns `true` if a tx exists in the tx map.

tx_type	txRead (key_type const &key) const override
	Read a transaction from the tx map.

std::optional< digest_type >	digest (key_type const &key) const override
	Return the digest associated with the key.

NetClock::time_point	parentCloseTime () const
	Returns the close time of the previous ledger.

LedgerIndex	seq () const
	Returns the sequence number of the base ledger.

virtual STAmount	balanceHook (AccountID const &account, AccountID const &issuer, STAmount const &amount) const

virtual std::uint32_t	ownerCountHook (AccountID const &account, std::uint32_t count) const

Public Attributes
sles_type	sles
	Iterable range of ledger state items.

txs_type	txs

Private Attributes
std::shared_ptr< Base const >	sp_

DigestAwareReadView const &	base_

CachedSLEs &	cache_

std::mutex	mutex_

std::unordered_map< key_type, uint256, hardened_hash<> >	map_

Detailed Description

template<class Base>
class xrpl::CachedView< Base >

Wraps a DigestAwareReadView to provide caching.

Template Parameters

Base	A subclass of DigestAwareReadView

Definition at line 132 of file CachedView.h.

Member Typedef Documentation

◆ base_type

template<class Base >

using xrpl::CachedView< Base >::base_type = Base

Definition at line 140 of file CachedView.h.

◆ digest_type

using xrpl::DigestAwareReadView::digest_type = uint256

inherited

Definition at line 231 of file ReadView.h.

◆ tx_type

using xrpl::ReadView::tx_type = std::pair<std::shared_ptr<STTx const>, std::shared_ptr<STObject const> >

inherited

Definition at line 33 of file ReadView.h.

◆ key_type

using xrpl::ReadView::key_type = uint256

inherited

Definition at line 35 of file ReadView.h.

◆ mapped_type

using xrpl::ReadView::mapped_type = std::shared_ptr<SLE const>

inherited

Definition at line 37 of file ReadView.h.

Constructor & Destructor Documentation

◆ CachedView() [1/3]

template<class Base >

xrpl::CachedView< Base >::CachedView ( )

delete

◆ CachedView() [2/3]

template<class Base >

xrpl::CachedView< Base >::CachedView ( CachedView< Base > const & )

delete

◆ CachedView() [3/3]

template<class Base >

xrpl::CachedView< Base >::CachedView	(	std::shared_ptr< Base const > const &	base,
		CachedSLEs &	cache
	)

Definition at line 147 of file CachedView.h.

Member Function Documentation

◆ operator=()

template<class Base >

CachedView & xrpl::CachedView< Base >::operator= ( CachedView< Base > const & )

delete

◆ base()

template<class Base >

std::shared_ptr< Base const > const & xrpl::CachedView< Base >::base ( ) const

Returns the base type.

Note: This breaks encapsulation and bypasses the cache.

Definition at line 157 of file CachedView.h.

◆ exists()

bool xrpl::detail::CachedViewImpl::exists ( Keylet const & k ) const

overridevirtualinherited

Determine if a state item exists.

Note: This can be more efficient than calling read.

Returns: true if a SLE is associated with the specified key.

Implements xrpl::ReadView.

Definition at line 8 of file CachedView.cpp.

◆ read()

std::shared_ptr< SLE const > xrpl::detail::CachedViewImpl::read ( Keylet const & k ) const

overridevirtualinherited

Return the state item associated with a key.

Effects: If the key exists, gives the caller ownership of the non-modifiable corresponding SLE.

Note: While the returned SLE is const from the perspective of the caller, it can be changed by other callers through raw operations.

Returns: nullptr if the key is not present or if the type does not match.

Implements xrpl::ReadView.

Definition at line 14 of file CachedView.cpp.

◆ open()

bool xrpl::detail::CachedViewImpl::open ( ) const

overridevirtualinherited

Returns true if this reflects an open ledger.

Implements xrpl::ReadView.

Definition at line 43 of file CachedView.h.

◆ header()

LedgerHeader const & xrpl::detail::CachedViewImpl::header ( ) const

overridevirtualinherited

Returns information about the ledger.

Implements xrpl::ReadView.

Definition at line 49 of file CachedView.h.

◆ fees()

Fees const & xrpl::detail::CachedViewImpl::fees ( ) const

overridevirtualinherited

Returns the fees for the base ledger.

Implements xrpl::ReadView.

Definition at line 55 of file CachedView.h.

◆ rules()

Rules const & xrpl::detail::CachedViewImpl::rules ( ) const

overridevirtualinherited

Returns the tx processing rules.

Implements xrpl::ReadView.

Definition at line 61 of file CachedView.h.

◆ succ()

std::optional< key_type > xrpl::detail::CachedViewImpl::succ	(	key_type const &	key,
		std::optional< key_type > const &	last = `std::nullopt`
	)		const

overridevirtualinherited

Return the key of the next state item.

This returns the key of the first state item whose key is greater than the specified key. If no such key is present, std::nullopt is returned.

If last is engaged, returns std::nullopt when the key returned would be outside the open interval (key, last).

Implements xrpl::ReadView.

Definition at line 67 of file CachedView.h.

◆ slesBegin()

std::unique_ptr< sles_type::iter_base > xrpl::detail::CachedViewImpl::slesBegin ( ) const

overridevirtualinherited

Implements xrpl::ReadView.

Definition at line 73 of file CachedView.h.

◆ slesEnd()

std::unique_ptr< sles_type::iter_base > xrpl::detail::CachedViewImpl::slesEnd ( ) const

overridevirtualinherited

Implements xrpl::ReadView.

Definition at line 79 of file CachedView.h.

◆ slesUpperBound() [1/2]

std::unique_ptr< sles_type::iter_base > xrpl::detail::CachedViewImpl::slesUpperBound ( uint256 const & key ) const

overrideinherited

Definition at line 85 of file CachedView.h.

◆ slesUpperBound() [2/2]

virtual std::unique_ptr< sles_type::iter_base > xrpl::ReadView::slesUpperBound ( key_type const & key ) const

pure virtualinherited

◆ txsBegin()

std::unique_ptr< txs_type::iter_base > xrpl::detail::CachedViewImpl::txsBegin ( ) const

overridevirtualinherited

Implements xrpl::ReadView.

Definition at line 91 of file CachedView.h.

◆ txsEnd()

std::unique_ptr< txs_type::iter_base > xrpl::detail::CachedViewImpl::txsEnd ( ) const

overridevirtualinherited

Implements xrpl::ReadView.

Definition at line 97 of file CachedView.h.

◆ txExists()

bool xrpl::detail::CachedViewImpl::txExists ( key_type const & key ) const

overridevirtualinherited

Returns true if a tx exists in the tx map.

A tx exists in the map if it is part of the base ledger, or if it is a newly inserted tx.

Implements xrpl::ReadView.

Definition at line 103 of file CachedView.h.

◆ txRead()

tx_type xrpl::detail::CachedViewImpl::txRead ( key_type const & key ) const

overridevirtualinherited

Read a transaction from the tx map.

If the view represents an open ledger, the metadata object will be empty.

Returns: A pair of nullptr if the key is not found in the tx map.

Implements xrpl::ReadView.

Definition at line 109 of file CachedView.h.

◆ digest()

std::optional< digest_type > xrpl::detail::CachedViewImpl::digest ( key_type const & key ) const

overridevirtualinherited

Return the digest associated with the key.

Returns: std::nullopt if the item does not exist.

Implements xrpl::DigestAwareReadView.

Definition at line 119 of file CachedView.h.

◆ parentCloseTime()

NetClock::time_point xrpl::ReadView::parentCloseTime ( ) const

inherited

Returns the close time of the previous ledger.

Definition at line 90 of file ReadView.h.

◆ seq()

LedgerIndex xrpl::ReadView::seq ( ) const

inherited

Returns the sequence number of the base ledger.

Definition at line 97 of file ReadView.h.

◆ balanceHook()

virtual STAmount xrpl::ReadView::balanceHook	(	AccountID const &	account,
		AccountID const &	issuer,
		STAmount const &	amount
	)		const

virtualinherited

Reimplemented in xrpl::PaymentSandbox.

Definition at line 155 of file ReadView.h.

◆ ownerCountHook()

virtual std::uint32_t xrpl::ReadView::ownerCountHook	(	AccountID const &	account,
		std::uint32_t	count
	)		const

virtualinherited

Reimplemented in xrpl::PaymentSandbox.

Definition at line 166 of file ReadView.h.

Member Data Documentation

◆ sp_

template<class Base >

std::shared_ptr<Base const> xrpl::CachedView< Base >::sp_

private

Definition at line 137 of file CachedView.h.

◆ base_

DigestAwareReadView const& xrpl::detail::CachedViewImpl::base_

privateinherited

Definition at line 17 of file CachedView.h.

◆ cache_

CachedSLEs& xrpl::detail::CachedViewImpl::cache_

privateinherited

Definition at line 18 of file CachedView.h.

◆ mutex_

std::mutex xrpl::detail::CachedViewImpl::mutex_

mutableprivateinherited

Definition at line 19 of file CachedView.h.

◆ map_

std::unordered_map<key_type, uint256, hardened_hash<> > xrpl::detail::CachedViewImpl::map_

mutableprivateinherited

Definition at line 20 of file CachedView.h.

◆ sles

sles_type xrpl::ReadView::sles

inherited

Iterable range of ledger state items.

Note: Visiting each state entry in the ledger can become quite expensive as the ledger grows.

Definition at line 219 of file ReadView.h.

◆ txs

txs_type xrpl::ReadView::txs

inherited

Definition at line 222 of file ReadView.h.
