Manages a client's subscription to data feeds. More...

#include <InfoSub.h>

Inheritance diagram for xrpl::InfoSub:

[legend]

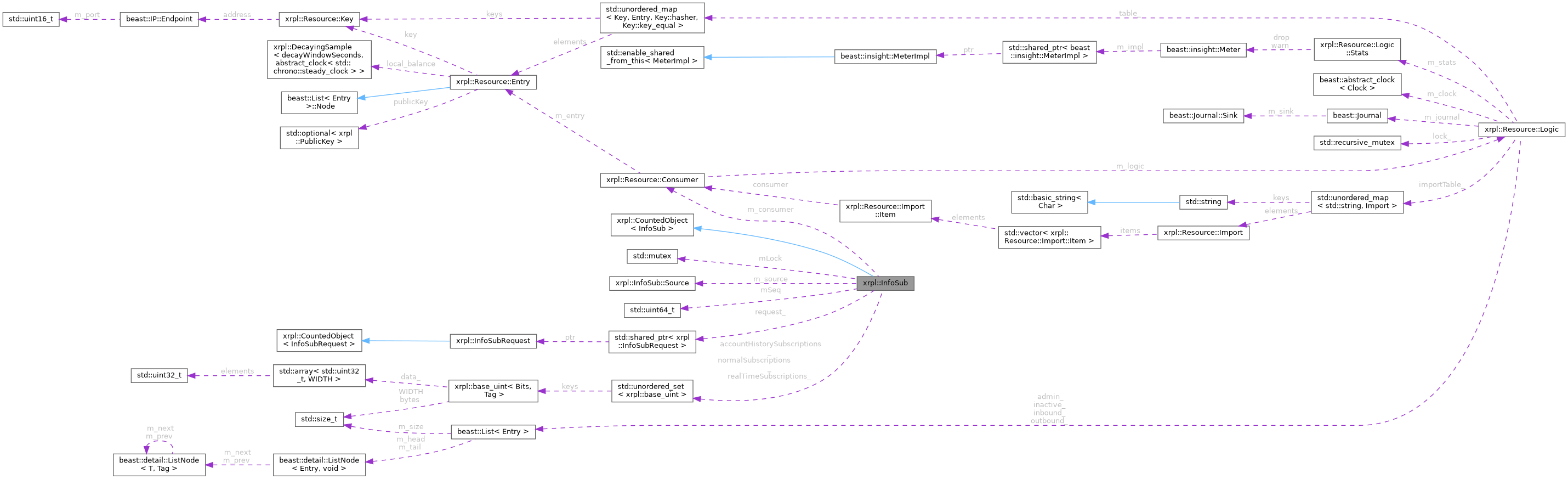

Collaboration diagram for xrpl::InfoSub:

[legend]

Classes
class	Source
	Abstracts the source of subscription data. More...

Public Types
using	pointer = std::shared_ptr<InfoSub>
using	Wptr = std::weak_ptr<InfoSub>
using	Ref = std::shared_ptr<InfoSub> const&
using	Consumer = resource::Consumer

Public Member Functions
	InfoSub (Source &source)
	InfoSub (Source &source, Consumer consumer)
virtual	~InfoSub ()
Consumer &	getConsumer ()
virtual void	send (json::Value const &jvObj, bool broadcast)=0
std::uint64_t	getSeq () const
std::size_t	totalSubscriptionCount () const
	Return the number of subscriptions currently tracked on this connection.
bool	tryReserveAccountSubscriptions (HashSet< AccountID > const &proposedAccounts, HashSet< AccountID > const &normalAccounts, std::size_t cap)
	Enforce the cap and reserve a request's net-new accounts, atomically.
bool	tryReserveMPTSubscriptions (HashSet< MPTID > const &mptIDs, std::size_t cap)
	Enforce the cap and reserve a request's net-new MPT issuances, atomically.
bool	hasAccountHistorySubscription (AccountID const &account) const
	Whether this connection already tracks an account-history for `account`.
void	onSendEmpty ()
void	insertSubAccountInfo (AccountID const &account, bool rt)
void	deleteSubAccountInfo (AccountID const &account, bool rt)
void	insertBookSubscription (Book const &book)
	Record that this subscriber is following `book`.
void	deleteBookSubscription (Book const &book)
	Stop tracking `book` for this subscriber.
bool	insertSubAccountHistory (AccountID const &account)
void	deleteSubAccountHistory (AccountID const &account)
void	clearRequest ()
void	setRequest (std::shared_ptr< InfoSubRequest > const &req)
std::shared_ptr< InfoSubRequest > const &	getRequest ()
void	setApiVersion (unsigned int apiVersion)
unsigned int	getApiVersion () const noexcept
void	insertSubMPTInfo (MPTID const &mptID)
void	deleteSubMPTInfo (MPTID const &mptID)

Public Attributes
friend	Object

Protected Attributes
std::mutex	lock_

Private Types
using	ScopedLock = std::scoped_lock<decltype(lock_)>

Private Member Functions
std::size_t	subscriptionCount (ScopedLock const &lock) const
	The combined tally the per-connection cap is enforced against.

Static Private Member Functions
static int	assignId ()
static auto &	getCounter () noexcept

Private Attributes
Consumer	consumer_
Source &	source_
HashSet< AccountID >	realTimeSubscriptions_
HashSet< AccountID >	normalSubscriptions_
std::shared_ptr< InfoSubRequest >	request_
std::uint64_t	seq_
HashSet< AccountID >	accountHistorySubscriptions_
HashSet< Book >	bookSubscriptions_
HashSet< MPTID >	mptSubscriptions_
unsigned int	apiVersion_ = 0

Detailed Description

Manages a client's subscription to data feeds.

An InfoSub holds a non-owning reference to its Source (typically the process-wide NetworkOPsImp). The destructor reaches back into the Source to remove this subscriber from every server-side subscription map.

Note: Lifetime contract: every InfoSub instance MUST be destroyed before the backing Source. NetworkOPsImp shutdown drops all subscriber strong refs before its own teardown to satisfy this.; Thread-safety: per-instance state is guarded by lock_. The destructor reads tracking sets without taking lock_ because the strong-pointer ref-count is zero at destruction time, so no other thread can be calling the public mutators.

Definition at line 89 of file InfoSub.h.

Member Typedef Documentation

◆ pointer

using xrpl::InfoSub::pointer = std::shared_ptr<InfoSub>

Definition at line 92 of file InfoSub.h.

◆ Wptr

using xrpl::InfoSub::Wptr = std::weak_ptr<InfoSub>

Definition at line 96 of file InfoSub.h.

◆ Ref

using xrpl::InfoSub::Ref = std::shared_ptr<InfoSub> const&

Definition at line 98 of file InfoSub.h.

◆ Consumer

using xrpl::InfoSub::Consumer = resource::Consumer

Definition at line 100 of file InfoSub.h.

◆ ScopedLock

using xrpl::InfoSub::ScopedLock = std::scoped_lock<decltype(lock_)>

private

Definition at line 469 of file InfoSub.h.

Constructor & Destructor Documentation

◆ InfoSub() [1/2]

xrpl::InfoSub::InfoSub ( Source & source )

Definition at line 76 of file libxrpl/server/InfoSub.cpp.

◆ InfoSub() [2/2]

xrpl::InfoSub::InfoSub	(	Source &	source,
		Consumer	consumer )

Definition at line 80 of file libxrpl/server/InfoSub.cpp.

◆ ~InfoSub()

xrpl::InfoSub::~InfoSub ( )

virtual

Definition at line 85 of file libxrpl/server/InfoSub.cpp.

Member Function Documentation

◆ getConsumer()

resource::Consumer & xrpl::InfoSub::getConsumer ( )

Definition at line 160 of file libxrpl/server/InfoSub.cpp.

◆ send()

virtual void xrpl::InfoSub::send	(	json::Value const &	jvObj,
		bool	broadcast )

pure virtual

Implemented in xrpl::RPCSubImp, and xrpl::WSInfoSub.

◆ getSeq()

std::uint64_t xrpl::InfoSub::getSeq ( ) const

nodiscard

Definition at line 166 of file libxrpl/server/InfoSub.cpp.

◆ totalSubscriptionCount()

std::size_t xrpl::InfoSub::totalSubscriptionCount ( ) const

nodiscard

Return the number of subscriptions currently tracked on this connection.

The combined size of the per-connection account, real-time account, account-history, and MPT issuance subscription sets. doSubscribe reads this to enforce the per-connection subscription cap before admitting more.

Returns: The total tracked subscription count for this connection.

Note: Thread-safe: takes lock_ for the read; read-only.

Definition at line 184 of file libxrpl/server/InfoSub.cpp.

◆ tryReserveAccountSubscriptions()

bool xrpl::InfoSub::tryReserveAccountSubscriptions	(	HashSet< AccountID > const &	proposedAccounts,
		HashSet< AccountID > const &	normalAccounts,
		std::size_t	cap )

nodiscard

Enforce the cap and reserve a request's net-new accounts, atomically.

Under one hold of lock_: count the net-new entries in the two sets, check the total against cap, and insert them only if it fits. All-or-nothing. Doing check and insert together stops two concurrent requests sharing an InfoSub (the admin subscribe-by-url path) from both passing the check before either records its accounts. The server-side maps are populated afterwards by subAccount, whose re-insert is a no-op.

Parameters

proposedAccounts	Real-time (accounts_proposed) ids to reserve.
normalAccounts	Normal (accounts) ids to reserve.
cap	The effective per-connection cap.

Returns: true if reserved; false if the request must be rejected.

Note: Thread-safe: takes lock_.

Definition at line 194 of file libxrpl/server/InfoSub.cpp.

◆ tryReserveMPTSubscriptions()

bool xrpl::InfoSub::tryReserveMPTSubscriptions	(	HashSet< MPTID > const &	mptIDs,
		std::size_t	cap )

nodiscard

Enforce the cap and reserve a request's net-new MPT issuances, atomically.

The MPT analogue of tryReserveAccountSubscriptions: under one hold of lock_, count the net-new issuances, check the total against cap, and insert them only if it fits. All-or-nothing, so a rejected request records nothing. Doing check and insert together stops two concurrent requests sharing an InfoSub (the admin subscribe-by-url path) from both passing the check before either records its issuances. The server-side map is populated afterwards by subMPT, whose re-insert is a no-op.

Parameters

mptIDs	The MPT issuance ids to reserve.
cap	The effective per-connection cap.

Returns: true if reserved; false if the request must be rejected.

Note: Thread-safe: takes lock_.

Definition at line 214 of file libxrpl/server/InfoSub.cpp.

◆ hasAccountHistorySubscription()

bool xrpl::InfoSub::hasAccountHistorySubscription ( AccountID const & account ) const

nodiscard

Whether this connection already tracks an account-history for account.

doSubscribe reads this to charge the cap for an account_history_tx_stream only when it is net-new, matching the account branches.

Parameters

account The account an account_history_tx_stream would add.

Returns: true if account is already in the account-history set.

Note: Thread-safe: takes lock_; read-only.

Definition at line 271 of file libxrpl/server/InfoSub.cpp.

◆ onSendEmpty()

void xrpl::InfoSub::onSendEmpty ( )

Definition at line 172 of file libxrpl/server/InfoSub.cpp.

◆ insertSubAccountInfo()

void xrpl::InfoSub::insertSubAccountInfo	(	AccountID const &	account,
		bool	rt )

Definition at line 227 of file libxrpl/server/InfoSub.cpp.

◆ deleteSubAccountInfo()

void xrpl::InfoSub::deleteSubAccountInfo	(	AccountID const &	account,
		bool	rt )

Definition at line 242 of file libxrpl/server/InfoSub.cpp.

◆ insertBookSubscription()

void xrpl::InfoSub::insertBookSubscription ( Book const & book )

Record that this subscriber is following book.

Called by NetworkOPsImp::subBook so that ~InfoSub() can issue a matching unsubBook for every book this subscriber is tracking, keeping per-subscriber state symmetric with the server-side map.

Parameters

book	The order book this subscriber has just subscribed to.

Note: Idempotent: re-inserting an already-tracked book is a no-op.; Thread-safe: takes InfoSub::lock_.

Definition at line 278 of file libxrpl/server/InfoSub.cpp.

◆ deleteBookSubscription()

void xrpl::InfoSub::deleteBookSubscription ( Book const & book )

Stop tracking book for this subscriber.

Called by the unsubscribe RPC handler so that the book is not re-unsubscribed by ~InfoSub(). Pairs with insertBookSubscription.

Parameters

book	The order book to forget.

Note: No-op if book was not previously inserted.; Thread-safe: takes InfoSub::lock_.

Definition at line 285 of file libxrpl/server/InfoSub.cpp.

◆ insertSubAccountHistory()

bool xrpl::InfoSub::insertSubAccountHistory ( AccountID const & account )

Definition at line 257 of file libxrpl/server/InfoSub.cpp.

◆ deleteSubAccountHistory()

void xrpl::InfoSub::deleteSubAccountHistory ( AccountID const & account )

Definition at line 264 of file libxrpl/server/InfoSub.cpp.

◆ clearRequest()

void xrpl::InfoSub::clearRequest ( )

Definition at line 292 of file libxrpl/server/InfoSub.cpp.

◆ setRequest()

void xrpl::InfoSub::setRequest ( std::shared_ptr< InfoSubRequest > const & req )

Definition at line 298 of file libxrpl/server/InfoSub.cpp.

◆ getRequest()

std::shared_ptr< InfoSubRequest > const & xrpl::InfoSub::getRequest ( )

Definition at line 304 of file libxrpl/server/InfoSub.cpp.

◆ setApiVersion()

void xrpl::InfoSub::setApiVersion ( unsigned int apiVersion )

Definition at line 310 of file libxrpl/server/InfoSub.cpp.

◆ getApiVersion()

unsigned int xrpl::InfoSub::getApiVersion ( ) const

nodiscardnoexcept

Definition at line 316 of file libxrpl/server/InfoSub.cpp.

◆ insertSubMPTInfo()

void xrpl::InfoSub::insertSubMPTInfo ( MPTID const & mptID )

Definition at line 323 of file libxrpl/server/InfoSub.cpp.

◆ deleteSubMPTInfo()

void xrpl::InfoSub::deleteSubMPTInfo ( MPTID const & mptID )

Definition at line 331 of file libxrpl/server/InfoSub.cpp.

◆ subscriptionCount()

std::size_t xrpl::InfoSub::subscriptionCount ( ScopedLock const & lock ) const

nodiscardprivate

The combined tally the per-connection cap is enforced against.

Parameters

lock	Proof that lock_ is held; unused otherwise.

Definition at line 177 of file libxrpl/server/InfoSub.cpp.

◆ assignId()

int xrpl::InfoSub::assignId ( )

staticprivate

Definition at line 491 of file InfoSub.h.

◆ getCounter()

auto & xrpl::CountedObject< InfoSub >::getCounter ( )

staticprivatenoexceptinherited

Definition at line 113 of file CountedObject.h.

Member Data Documentation

◆ lock_

std::mutex xrpl::InfoSub::lock_

mutableprotected

Definition at line 465 of file InfoSub.h.

◆ consumer_

Consumer xrpl::InfoSub::consumer_

private

Definition at line 479 of file InfoSub.h.

◆ source_

Source& xrpl::InfoSub::source_

private

Definition at line 480 of file InfoSub.h.

◆ realTimeSubscriptions_

HashSet<AccountID> xrpl::InfoSub::realTimeSubscriptions_

private

Definition at line 481 of file InfoSub.h.

◆ normalSubscriptions_

HashSet<AccountID> xrpl::InfoSub::normalSubscriptions_

private

Definition at line 482 of file InfoSub.h.

◆ request_

std::shared_ptr<InfoSubRequest> xrpl::InfoSub::request_

private

Definition at line 483 of file InfoSub.h.

◆ seq_

std::uint64_t xrpl::InfoSub::seq_

private

Definition at line 484 of file InfoSub.h.

◆ accountHistorySubscriptions_

HashSet<AccountID> xrpl::InfoSub::accountHistorySubscriptions_

private

Definition at line 485 of file InfoSub.h.

◆ bookSubscriptions_

HashSet<Book> xrpl::InfoSub::bookSubscriptions_

private

Definition at line 486 of file InfoSub.h.

◆ mptSubscriptions_

HashSet<MPTID> xrpl::InfoSub::mptSubscriptions_

private

Definition at line 487 of file InfoSub.h.

◆ apiVersion_

unsigned int xrpl::InfoSub::apiVersion_ = 0

private

Definition at line 488 of file InfoSub.h.

◆ Object

friend xrpl::CountedObject< InfoSub >::InfoSub

inherited

Definition at line 138 of file CountedObject.h.

Classes

Public Types

Public Member Functions

Public Attributes

Protected Attributes

Private Types

Private Member Functions

Static Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ pointer

◆ Wptr

◆ Ref

◆ Consumer

◆ ScopedLock

Constructor & Destructor Documentation

◆ InfoSub() [1/2]

◆ InfoSub() [2/2]

◆ ~InfoSub()

Member Function Documentation

◆ getConsumer()

◆ send()

◆ getSeq()

◆ totalSubscriptionCount()

◆ tryReserveAccountSubscriptions()

◆ tryReserveMPTSubscriptions()

◆ hasAccountHistorySubscription()

◆ onSendEmpty()

◆ insertSubAccountInfo()

◆ deleteSubAccountInfo()

◆ insertBookSubscription()

◆ deleteBookSubscription()

◆ insertSubAccountHistory()

◆ deleteSubAccountHistory()

◆ clearRequest()

◆ setRequest()

◆ getRequest()

◆ setApiVersion()

◆ getApiVersion()

◆ insertSubMPTInfo()

◆ deleteSubMPTInfo()

◆ subscriptionCount()

◆ assignId()

◆ getCounter()

Member Data Documentation

◆ lock_

◆ consumer_

◆ source_

◆ realTimeSubscriptions_

◆ normalSubscriptions_

◆ request_

◆ seq_

◆ accountHistorySubscriptions_

◆ bookSubscriptions_

◆ mptSubscriptions_

◆ apiVersion_

◆ Object
