Inheritance diagram for xrpl::RPCSubImp:

[legend]

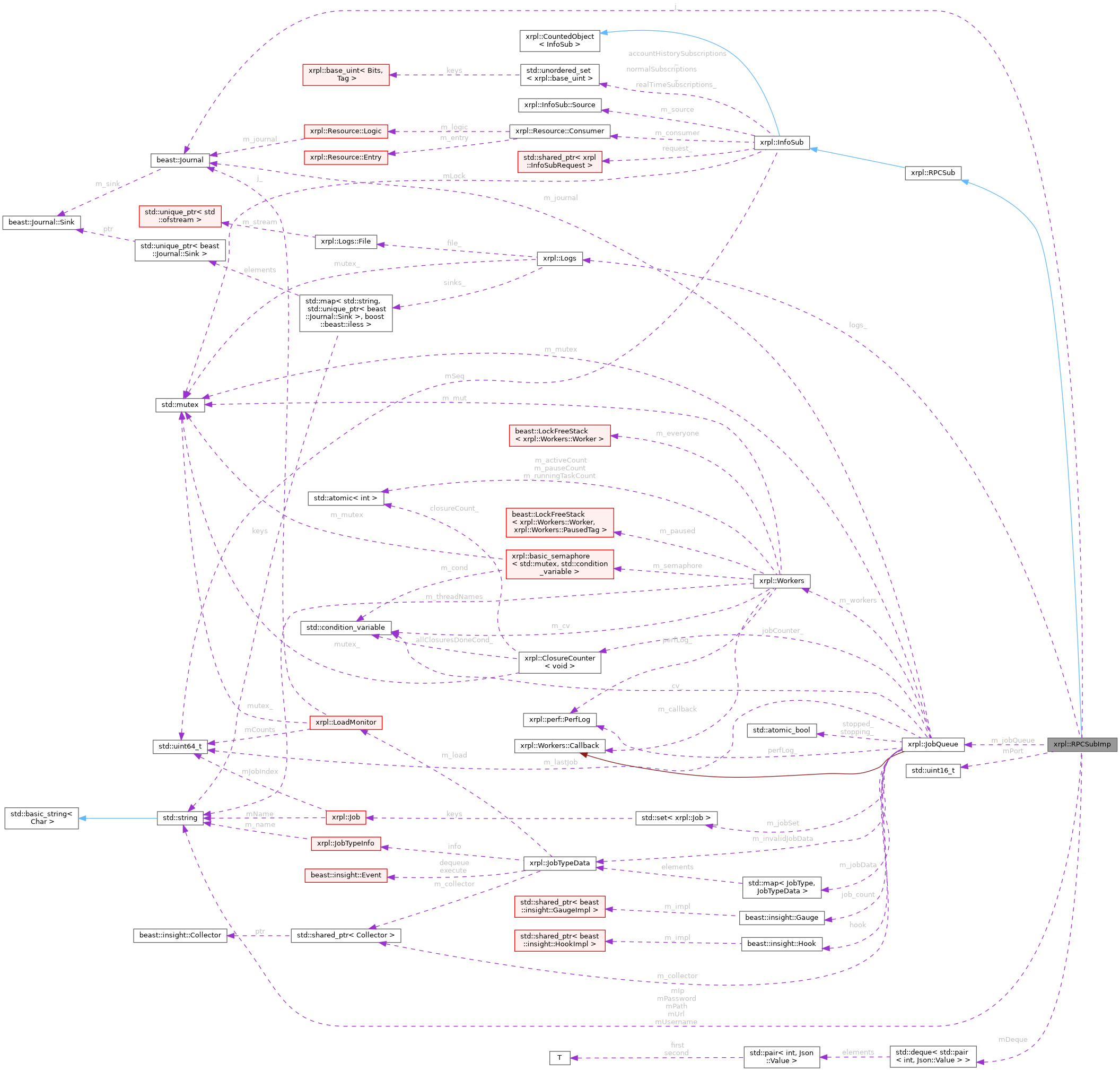

Collaboration diagram for xrpl::RPCSubImp:

[legend]

Public Types
using	pointer = std::shared_ptr<InfoSub>
using	wptr = std::weak_ptr<InfoSub>
using	ref = std::shared_ptr<InfoSub> const&
using	Consumer = resource::Consumer

Public Member Functions
	RPCSubImp (InfoSub::Source &source, boost::asio::io_context &ioContext, JobQueue &jobQueue, std::string const &strUrl, std::string strUsername, std::string strPassword, ServiceRegistry &registry)
	~RPCSubImp () override=default
void	send (json::Value const &jvObj, bool broadcast) override
void	setUsername (std::string const &strUsername) override
void	setPassword (std::string const &strPassword) override
Consumer &	getConsumer ()
std::uint64_t	getSeq () const
std::size_t	totalSubscriptionCount () const
	Return the number of subscriptions currently tracked on this connection.
bool	tryReserveAccountSubscriptions (hash_set< AccountID > const &proposedAccounts, hash_set< AccountID > const &normalAccounts, std::size_t cap)
	Enforce the cap and reserve a request's net-new accounts, atomically.
bool	hasAccountHistorySubscription (AccountID const &account) const
	Whether this connection already tracks an account-history for `account`.
void	onSendEmpty ()
void	insertSubAccountInfo (AccountID const &account, bool rt)
void	deleteSubAccountInfo (AccountID const &account, bool rt)
void	insertBookSubscription (Book const &book)
	Record that this subscriber is following `book`.
void	deleteBookSubscription (Book const &book)
	Stop tracking `book` for this subscriber.
bool	insertSubAccountHistory (AccountID const &account)
void	deleteSubAccountHistory (AccountID const &account)
void	clearRequest ()
void	setRequest (std::shared_ptr< InfoSubRequest > const &req)
std::shared_ptr< InfoSubRequest > const &	getRequest ()
void	setApiVersion (unsigned int apiVersion)
unsigned int	getApiVersion () const noexcept

Public Attributes
friend	Object

Protected Attributes
std::mutex	lock_

Private Member Functions
void	sendThread ()

Static Private Member Functions
static int	assignId ()
static auto &	getCounter () noexcept

Private Attributes
boost::asio::io_context &	ioContext_
JobQueue &	jobQueue_
std::string	url_
std::string	ip_
std::uint16_t	port_
bool	ssl_ {false}
std::string	username_
std::string	password_
std::string	path_
int	seq_
bool	sending_ {false}
std::deque< std::pair< int, json::Value > >	deque_
beast::Journal const	j_
Logs &	logs_
Consumer	consumer_
Source &	source_
hash_set< AccountID >	realTimeSubscriptions_
hash_set< AccountID >	normalSubscriptions_
std::shared_ptr< InfoSubRequest >	request_
hash_set< AccountID >	accountHistorySubscriptions_
hash_set< Book >	bookSubscriptions_
unsigned int	apiVersion_ = 0

Detailed Description

Definition at line 30 of file RPCSub.cpp.

Member Typedef Documentation

◆ pointer

using xrpl::InfoSub::pointer = std::shared_ptr<InfoSub>

inherited

Definition at line 91 of file InfoSub.h.

◆ wptr

using xrpl::InfoSub::wptr = std::weak_ptr<InfoSub>

inherited

Definition at line 95 of file InfoSub.h.

◆ ref

using xrpl::InfoSub::ref = std::shared_ptr<InfoSub> const&

inherited

Definition at line 97 of file InfoSub.h.

◆ Consumer

using xrpl::InfoSub::Consumer = resource::Consumer

inherited

Definition at line 99 of file InfoSub.h.

Constructor & Destructor Documentation

◆ RPCSubImp()

xrpl::RPCSubImp::RPCSubImp	(	InfoSub::Source &	source,
		boost::asio::io_context &	ioContext,
		JobQueue &	jobQueue,
		std::string const &	strUrl,
		std::string	strUsername,
		std::string	strPassword,
		ServiceRegistry &	registry )

Definition at line 33 of file RPCSub.cpp.

◆ ~RPCSubImp()

xrpl::RPCSubImp::~RPCSubImp ( )

overridedefault

Member Function Documentation

◆ send()

void xrpl::RPCSubImp::send	(	json::Value const &	jvObj,
		bool	broadcast )

overridevirtual

Implements xrpl::InfoSub.

Definition at line 85 of file RPCSub.cpp.

◆ setUsername()

void xrpl::RPCSubImp::setUsername ( std::string const & strUsername )

overridevirtual

Implements xrpl::RPCSub.

Definition at line 105 of file RPCSub.cpp.

◆ setPassword()

void xrpl::RPCSubImp::setPassword ( std::string const & strPassword )

overridevirtual

Implements xrpl::RPCSub.

Definition at line 113 of file RPCSub.cpp.

◆ sendThread()

void xrpl::RPCSubImp::sendThread ( )

private

Definition at line 124 of file RPCSub.cpp.

◆ getConsumer()

resource::Consumer & xrpl::InfoSub::getConsumer ( )

inherited

Definition at line 132 of file libxrpl/server/InfoSub.cpp.

◆ getSeq()

std::uint64_t xrpl::InfoSub::getSeq ( ) const

nodiscardinherited

Definition at line 138 of file libxrpl/server/InfoSub.cpp.

◆ totalSubscriptionCount()

std::size_t xrpl::InfoSub::totalSubscriptionCount ( ) const

nodiscardinherited

Return the number of subscriptions currently tracked on this connection.

The combined size of the per-connection account, real-time account, and account-history subscription sets. doSubscribe reads this to enforce the per-connection subscription cap before admitting more.

Returns: The total tracked subscription count for this connection.

Note: Thread-safe: takes lock_ for the read; read-only.

Definition at line 149 of file libxrpl/server/InfoSub.cpp.

◆ tryReserveAccountSubscriptions()

bool xrpl::InfoSub::tryReserveAccountSubscriptions	(	hash_set< AccountID > const &	proposedAccounts,
		hash_set< AccountID > const &	normalAccounts,
		std::size_t	cap )

nodiscardinherited

Enforce the cap and reserve a request's net-new accounts, atomically.

Under one hold of lock_: count the net-new entries in the two sets, check the total against cap, and insert them only if it fits. All-or-nothing. Doing check and insert together stops two concurrent requests sharing an InfoSub (the admin subscribe-by-url path) from both passing the check before either records its accounts. The server-side maps are populated afterwards by subAccount, whose re-insert is a no-op.

Parameters

proposedAccounts	Real-time (accounts_proposed) ids to reserve.
normalAccounts	Normal (accounts) ids to reserve.
cap	The effective per-connection cap.

Returns: true if reserved; false if the request must be rejected.

Note: Thread-safe: takes lock_.

Definition at line 161 of file libxrpl/server/InfoSub.cpp.

◆ hasAccountHistorySubscription()

bool xrpl::InfoSub::hasAccountHistorySubscription ( AccountID const & account ) const

nodiscardinherited

Whether this connection already tracks an account-history for account.

doSubscribe reads this to charge the cap for an account_history_tx_stream only when it is net-new, matching the account branches.

Parameters

account The account an account_history_tx_stream would add.

Returns: true if account is already in the account-history set.

Note: Thread-safe: takes lock_; read-only.

Definition at line 240 of file libxrpl/server/InfoSub.cpp.

◆ onSendEmpty()

void xrpl::InfoSub::onSendEmpty ( )

inherited

Definition at line 144 of file libxrpl/server/InfoSub.cpp.

◆ insertSubAccountInfo()

void xrpl::InfoSub::insertSubAccountInfo	(	AccountID const &	account,
		bool	rt )

inherited

Definition at line 196 of file libxrpl/server/InfoSub.cpp.

◆ deleteSubAccountInfo()

void xrpl::InfoSub::deleteSubAccountInfo	(	AccountID const &	account,
		bool	rt )

inherited

Definition at line 211 of file libxrpl/server/InfoSub.cpp.

◆ insertBookSubscription()

void xrpl::InfoSub::insertBookSubscription ( Book const & book )

inherited

Record that this subscriber is following book.

Called by NetworkOPsImp::subBook so that ~InfoSub() can issue a matching unsubBook for every book this subscriber is tracking, keeping per-subscriber state symmetric with the server-side map.

Parameters

book	The order book this subscriber has just subscribed to.

Note: Idempotent: re-inserting an already-tracked book is a no-op.; Thread-safe: takes InfoSub::lock_.

Definition at line 247 of file libxrpl/server/InfoSub.cpp.

◆ deleteBookSubscription()

void xrpl::InfoSub::deleteBookSubscription ( Book const & book )

inherited

Stop tracking book for this subscriber.

Called by the unsubscribe RPC handler so that the book is not re-unsubscribed by ~InfoSub(). Pairs with insertBookSubscription.

Parameters

book	The order book to forget.

Note: No-op if book was not previously inserted.; Thread-safe: takes InfoSub::lock_.

Definition at line 254 of file libxrpl/server/InfoSub.cpp.

◆ insertSubAccountHistory()

bool xrpl::InfoSub::insertSubAccountHistory ( AccountID const & account )

inherited

Definition at line 226 of file libxrpl/server/InfoSub.cpp.

◆ deleteSubAccountHistory()

void xrpl::InfoSub::deleteSubAccountHistory ( AccountID const & account )

inherited

Definition at line 233 of file libxrpl/server/InfoSub.cpp.

◆ clearRequest()

void xrpl::InfoSub::clearRequest ( )

inherited

Definition at line 261 of file libxrpl/server/InfoSub.cpp.

◆ setRequest()

void xrpl::InfoSub::setRequest ( std::shared_ptr< InfoSubRequest > const & req )

inherited

Definition at line 267 of file libxrpl/server/InfoSub.cpp.

◆ getRequest()

std::shared_ptr< InfoSubRequest > const & xrpl::InfoSub::getRequest ( )

inherited

Definition at line 273 of file libxrpl/server/InfoSub.cpp.

◆ setApiVersion()

void xrpl::InfoSub::setApiVersion ( unsigned int apiVersion )

inherited

Definition at line 279 of file libxrpl/server/InfoSub.cpp.

◆ getApiVersion()

unsigned int xrpl::InfoSub::getApiVersion ( ) const

nodiscardnoexceptinherited

Definition at line 285 of file libxrpl/server/InfoSub.cpp.

◆ assignId()

int xrpl::InfoSub::assignId ( )

staticprivateinherited

Definition at line 433 of file InfoSub.h.

◆ getCounter()

auto & xrpl::CountedObject< InfoSub >::getCounter ( )

staticprivatenoexceptinherited

Definition at line 113 of file CountedObject.h.

Member Data Documentation

◆ ioContext_

boost::asio::io_context& xrpl::RPCSubImp::ioContext_

private

Definition at line 183 of file RPCSub.cpp.

◆ jobQueue_

JobQueue& xrpl::RPCSubImp::jobQueue_

private

Definition at line 184 of file RPCSub.cpp.

◆ url_

std::string xrpl::RPCSubImp::url_

private

Definition at line 186 of file RPCSub.cpp.

◆ ip_

std::string xrpl::RPCSubImp::ip_

private

Definition at line 187 of file RPCSub.cpp.

◆ port_

std::uint16_t xrpl::RPCSubImp::port_

private

Definition at line 188 of file RPCSub.cpp.

◆ ssl_

bool xrpl::RPCSubImp::ssl_ {false}

private

Definition at line 189 of file RPCSub.cpp.

◆ username_

std::string xrpl::RPCSubImp::username_

private

Definition at line 190 of file RPCSub.cpp.

◆ password_

std::string xrpl::RPCSubImp::password_

private

Definition at line 191 of file RPCSub.cpp.

◆ path_

std::string xrpl::RPCSubImp::path_

private

Definition at line 192 of file RPCSub.cpp.

◆ seq_

int xrpl::RPCSubImp::seq_

private

Definition at line 194 of file RPCSub.cpp.

◆ sending_

bool xrpl::RPCSubImp::sending_ {false}

private

Definition at line 196 of file RPCSub.cpp.

◆ deque_

std::deque<std::pair<int, json::Value> > xrpl::RPCSubImp::deque_

private

Definition at line 198 of file RPCSub.cpp.

◆ j_

beast::Journal const xrpl::RPCSubImp::j_

private

Definition at line 200 of file RPCSub.cpp.

◆ logs_

Logs& xrpl::RPCSubImp::logs_

private

Definition at line 201 of file RPCSub.cpp.

◆ lock_

std::mutex xrpl::InfoSub::lock_

mutableprotectedinherited

Definition at line 419 of file InfoSub.h.

◆ consumer_

Consumer xrpl::InfoSub::consumer_

privateinherited

Definition at line 422 of file InfoSub.h.

◆ source_

Source& xrpl::InfoSub::source_

privateinherited

Definition at line 423 of file InfoSub.h.

◆ realTimeSubscriptions_

hash_set<AccountID> xrpl::InfoSub::realTimeSubscriptions_

privateinherited

Definition at line 424 of file InfoSub.h.

◆ normalSubscriptions_

hash_set<AccountID> xrpl::InfoSub::normalSubscriptions_

privateinherited

Definition at line 425 of file InfoSub.h.

◆ request_

std::shared_ptr<InfoSubRequest> xrpl::InfoSub::request_

privateinherited

Definition at line 426 of file InfoSub.h.

◆ accountHistorySubscriptions_

hash_set<AccountID> xrpl::InfoSub::accountHistorySubscriptions_

privateinherited

Definition at line 428 of file InfoSub.h.

◆ bookSubscriptions_

hash_set<Book> xrpl::InfoSub::bookSubscriptions_

privateinherited

Definition at line 429 of file InfoSub.h.

◆ apiVersion_

unsigned int xrpl::InfoSub::apiVersion_ = 0

privateinherited

Definition at line 430 of file InfoSub.h.

◆ Object

friend xrpl::CountedObject< InfoSub >::InfoSub

inherited

Definition at line 138 of file CountedObject.h.

Public Types

Public Member Functions

Public Attributes

Protected Attributes

Private Member Functions

Static Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ pointer

◆ wptr

◆ ref

◆ Consumer

Constructor & Destructor Documentation

◆ RPCSubImp()

◆ ~RPCSubImp()

Member Function Documentation

◆ send()

◆ setUsername()

◆ setPassword()

◆ sendThread()

◆ getConsumer()

◆ getSeq()

◆ totalSubscriptionCount()

◆ tryReserveAccountSubscriptions()

◆ hasAccountHistorySubscription()

◆ onSendEmpty()

◆ insertSubAccountInfo()

◆ deleteSubAccountInfo()

◆ insertBookSubscription()

◆ deleteBookSubscription()

◆ insertSubAccountHistory()

◆ deleteSubAccountHistory()

◆ clearRequest()

◆ setRequest()

◆ getRequest()

◆ setApiVersion()

◆ getApiVersion()

◆ assignId()

◆ getCounter()

Member Data Documentation

◆ ioContext_

◆ jobQueue_

◆ url_

◆ ip_

◆ port_

◆ ssl_

◆ username_

◆ password_

◆ path_

◆ seq_

◆ sending_

◆ deque_

◆ j_

◆ logs_

◆ lock_

◆ consumer_

◆ source_

◆ realTimeSubscriptions_

◆ normalSubscriptions_

◆ request_

◆ accountHistorySubscriptions_

◆ bookSubscriptions_

◆ apiVersion_

◆ Object
