A pool of threads to perform work. More...

#include <JobQueue.h>

Inheritance diagram for xrpl::JobQueue:

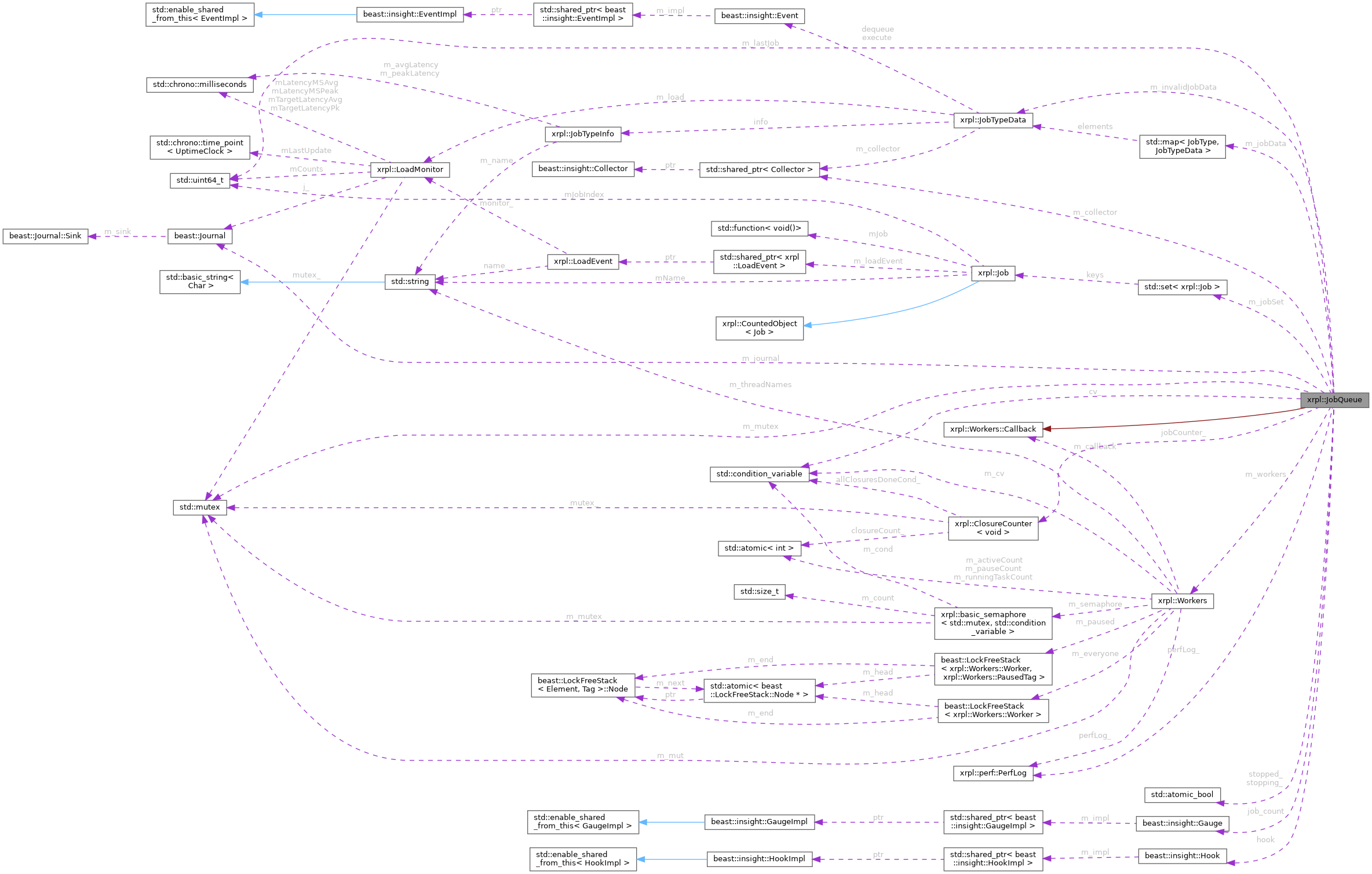

Collaboration diagram for xrpl::JobQueue:

[legend]

Classes
class	Coro
	Coroutines must run to completion. More...

Public Types
using	JobFunction = std::function<void()>

Public Member Functions
	JobQueue (int threadCount, beast::insight::Collector::ptr const &collector, beast::Journal journal, Logs &logs, perf::PerfLog &perfLog)
	~JobQueue () override
template<typename JobHandler> requires (std::is_void_v<std::invoke_result_t<JobHandler>>)
bool	addJob (JobType type, std::string const &name, JobHandler &&jobHandler)
	Adds a job to the JobQueue.
template<class F>
std::shared_ptr< Coro >	postCoro (JobType t, std::string const &name, F &&f)
	Creates a coroutine and adds a job to the queue which will run it.
int	getJobCount (JobType t) const
	Jobs waiting at this priority.
int	getJobCountTotal (JobType t) const
	Jobs waiting plus running at this priority.
int	getJobCountGE (JobType t) const
	All waiting jobs at or greater than this priority.
std::unique_ptr< LoadEvent >	makeLoadEvent (JobType t, std::string const &name)
	Return a scoped LoadEvent.
void	addLoadEvents (JobType t, int count, std::chrono::milliseconds elapsed)
	Add multiple load events.
bool	isOverloaded ()
json::Value	getJson (int c=0)
void	rendezvous ()
	Block until no jobs running.
void	stop ()
bool	isStopping () const
bool	isStopped () const

Private Types
using	JobDataMap = std::map<JobType, JobTypeData>

Private Member Functions
void	collect ()
JobTypeData &	getJobTypeData (JobType type)
bool	addRefCountedJob (JobType type, std::string const &name, JobFunction const &func)
void	getNextJob (Job &job)
void	finishJob (JobType type)
void	processTask (int instance) override
	Perform a task.

Static Private Member Functions
static int	getJobLimit (JobType type)

Private Attributes
beast::Journal	journal_
std::mutex	mutex_
std::uint64_t	lastJob_ {0}
std::set< Job >	jobSet_
JobCounter	jobCounter_
std::atomic_bool	stopping_ {false}
std::atomic_bool	stopped_ {false}
JobDataMap	jobData_
JobTypeData	invalidJobData_
int	processCount_ {0}
int	nSuspend_ = 0
Workers	workers_
perf::PerfLog &	perfLog_
beast::insight::Collector::ptr	collector_
beast::insight::Gauge	jobCount_
beast::insight::Hook	hook_
std::condition_variable	cv_

Friends
class	Coro

Detailed Description

A pool of threads to perform work.

A job posted will always run to completion.

Coroutines that are suspended must be resumed, and run to completion.

When the JobQueue stops, it waits for all jobs and coroutines to finish.

Definition at line 59 of file JobQueue.h.

Member Typedef Documentation

◆ JobFunction

using xrpl::JobQueue::JobFunction = std::function<void()>

Definition at line 155 of file JobQueue.h.

◆ JobDataMap

using xrpl::JobQueue::JobDataMap = std::map<JobType, JobTypeData>

private

Definition at line 261 of file JobQueue.h.

Constructor & Destructor Documentation

◆ JobQueue()

xrpl::JobQueue::JobQueue	(	int	threadCount,
		beast::insight::Collector::ptr const &	collector,
		beast::Journal	journal,
		Logs &	logs,
		perf::PerfLog &	perfLog )

Definition at line 24 of file JobQueue.cpp.

◆ ~JobQueue()

xrpl::JobQueue::~JobQueue ( )

override

Definition at line 59 of file JobQueue.cpp.

Member Function Documentation

◆ addJob()

template<typename JobHandler>
requires (std::is_void_v<std::invoke_result_t<JobHandler>>)

bool xrpl::JobQueue::addJob	(	JobType	type,
		std::string const &	name,
		JobHandler &&	jobHandler )

Adds a job to the JobQueue.

Parameters

type	The type of job.
name	Name of the job.
jobHandler	Callable with signature void(). Called when the job is executed.

Returns: true if jobHandler added to queue.

Definition at line 176 of file JobQueue.h.

◆ postCoro()

template<class F>

std::shared_ptr< JobQueue::Coro > xrpl::JobQueue::postCoro	(	JobType	t,
		std::string const &	name,
		F &&	f )

Creates a coroutine and adds a job to the queue which will run it.

Parameters

t	The type of job.
name	Name of the job.
f	Has a signature of void(std::shared_ptr<Coro>). Called when the job executes.

Returns: shared_ptr to posted Coro. nullptr if post was not successful.

Definition at line 428 of file JobQueue.h.

◆ getJobCount()

int xrpl::JobQueue::getJobCount ( JobType t ) const

Jobs waiting at this priority.

Definition at line 120 of file JobQueue.cpp.

◆ getJobCountTotal()

int xrpl::JobQueue::getJobCountTotal ( JobType t ) const

Jobs waiting plus running at this priority.

Definition at line 130 of file JobQueue.cpp.

◆ getJobCountGE()

int xrpl::JobQueue::getJobCountGE ( JobType t ) const

All waiting jobs at or greater than this priority.

Definition at line 140 of file JobQueue.cpp.

◆ makeLoadEvent()

std::unique_ptr< LoadEvent > xrpl::JobQueue::makeLoadEvent	(	JobType	t,
		std::string const &	name )

Return a scoped LoadEvent.

Definition at line 157 of file JobQueue.cpp.

◆ addLoadEvents()

void xrpl::JobQueue::addLoadEvents	(	JobType	t,
		int	count,
		std::chrono::milliseconds	elapsed )

Add multiple load events.

Definition at line 169 of file JobQueue.cpp.

◆ isOverloaded()

bool xrpl::JobQueue::isOverloaded ( )

Definition at line 180 of file JobQueue.cpp.

◆ getJson()

json::Value xrpl::JobQueue::getJson ( int c = 0 )

Definition at line 186 of file JobQueue.cpp.

◆ rendezvous()

void xrpl::JobQueue::rendezvous ( )

Block until no jobs running.

Definition at line 243 of file JobQueue.cpp.

◆ stop()

void xrpl::JobQueue::stop ( )

Definition at line 264 of file JobQueue.cpp.

◆ isStopping()

bool xrpl::JobQueue::isStopping ( ) const

Definition at line 248 of file JobQueue.h.

◆ isStopped()

bool xrpl::JobQueue::isStopped ( ) const

Definition at line 285 of file JobQueue.cpp.

◆ collect()

void xrpl::JobQueue::collect ( )

private

Definition at line 66 of file JobQueue.cpp.

◆ getJobTypeData()

JobTypeData & xrpl::JobQueue::getJobTypeData ( JobType type )

private

Definition at line 250 of file JobQueue.cpp.

◆ addRefCountedJob()

bool xrpl::JobQueue::addRefCountedJob	(	JobType	type,
		std::string const &	name,
		JobFunction const &	func )

private

Definition at line 73 of file JobQueue.cpp.

◆ getNextJob()

void xrpl::JobQueue::getNextJob ( Job & job )

private

Definition at line 291 of file JobQueue.cpp.

◆ finishJob()

void xrpl::JobQueue::finishJob ( JobType type )

private

Definition at line 321 of file JobQueue.cpp.

◆ processTask()

void xrpl::JobQueue::processTask ( int instance )

overrideprivatevirtual

Perform a task.

The call is made on a thread owned by Workers. It is important that you only process one task from inside your callback. Each call to addTask will result in exactly one call to processTask.

Parameters

instance The worker thread instance.

See also: Workers::addTask

Implements xrpl::Workers::Callback.

Definition at line 342 of file JobQueue.cpp.

◆ getJobLimit()

int xrpl::JobQueue::getJobLimit ( JobType type )

staticprivate

Definition at line 393 of file JobQueue.cpp.

◆ Coro

friend class Coro

friend

Definition at line 259 of file JobQueue.h.

Member Data Documentation

◆ journal_

beast::Journal xrpl::JobQueue::journal_

private

Definition at line 263 of file JobQueue.h.

◆ mutex_

std::mutex xrpl::JobQueue::mutex_

mutableprivate

Definition at line 264 of file JobQueue.h.

◆ lastJob_

std::uint64_t xrpl::JobQueue::lastJob_ {0}

private

Definition at line 265 of file JobQueue.h.

◆ jobSet_

std::set<Job> xrpl::JobQueue::jobSet_

private

Definition at line 266 of file JobQueue.h.

◆ jobCounter_

JobCounter xrpl::JobQueue::jobCounter_

private

Definition at line 267 of file JobQueue.h.

◆ stopping_

std::atomic_bool xrpl::JobQueue::stopping_ {false}

private

Definition at line 268 of file JobQueue.h.

◆ stopped_

std::atomic_bool xrpl::JobQueue::stopped_ {false}

private

Definition at line 269 of file JobQueue.h.

◆ jobData_

JobDataMap xrpl::JobQueue::jobData_

private

Definition at line 270 of file JobQueue.h.

◆ invalidJobData_

JobTypeData xrpl::JobQueue::invalidJobData_

private

Definition at line 271 of file JobQueue.h.

◆ processCount_

int xrpl::JobQueue::processCount_ {0}

private

Definition at line 274 of file JobQueue.h.

◆ nSuspend_

int xrpl::JobQueue::nSuspend_ = 0

private

Definition at line 277 of file JobQueue.h.

◆ workers_

Workers xrpl::JobQueue::workers_

private

Definition at line 279 of file JobQueue.h.

◆ perfLog_

perf::PerfLog& xrpl::JobQueue::perfLog_

private

Definition at line 282 of file JobQueue.h.

◆ collector_

beast::insight::Collector::ptr xrpl::JobQueue::collector_

private

Definition at line 283 of file JobQueue.h.

◆ jobCount_

beast::insight::Gauge xrpl::JobQueue::jobCount_

private

Definition at line 284 of file JobQueue.h.

◆ hook_

beast::insight::Hook xrpl::JobQueue::hook_

private

Definition at line 285 of file JobQueue.h.

◆ cv_

std::condition_variable xrpl::JobQueue::cv_

private

Definition at line 287 of file JobQueue.h.
