Manage the retrieval of a ledger delta (header and transactions) from the network. More...

#include <LedgerDeltaAcquire.h>

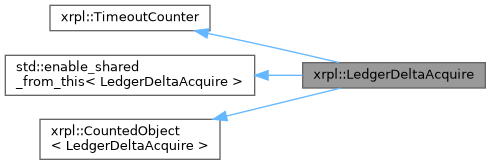

Inheritance diagram for xrpl::LedgerDeltaAcquire:

[legend]

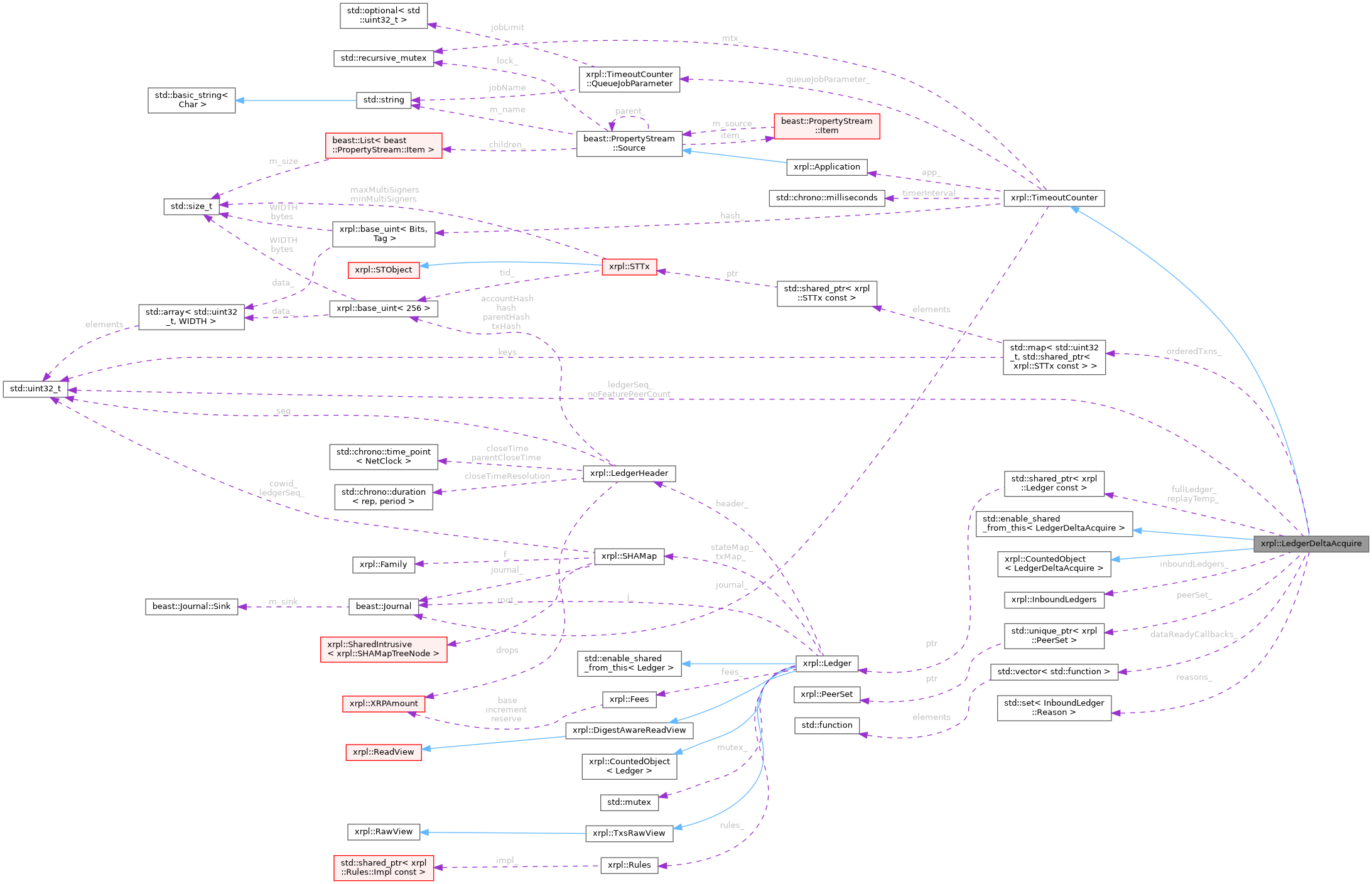

Collaboration diagram for xrpl::LedgerDeltaAcquire:

[legend]

Public Types
using	OnDeltaDataCB = std::function< void(bool successful, uint256 const &hash)>
	A callback used to notify that the delta's data is ready or failed.

Public Member Functions
	LedgerDeltaAcquire (Application &app, InboundLedgers &inboundLedgers, uint256 const &ledgerHash, std::uint32_t ledgerSeq, std::unique_ptr< PeerSet > peerSet)
	Constructor.

	~LedgerDeltaAcquire () override

void	init (int numPeers)
	Start the LedgerDeltaAcquire task.

void	processData (LedgerHeader const &info, std::map< std::uint32_t, std::shared_ptr< STTx const > > &&orderedTxns)
	Process the data extracted from a peer's reply.

std::shared_ptr< Ledger const >	tryBuild (std::shared_ptr< Ledger const > const &parent)
	Try to build the ledger if not already.

void	addDataCallback (InboundLedger::Reason reason, OnDeltaDataCB &&cb)
	Add a reason and a callback to the LedgerDeltaAcquire subtask.

virtual void	cancel ()
	Cancel the task by marking it as failed if the task is not done.

T	shared_from_this (T... args)

T	weak_from_this (T... args)

Protected Types
using	ScopedLockType = std::unique_lock< std::recursive_mutex >

Protected Member Functions
void	setTimer (ScopedLockType &)
	Schedule a call to queueJob() after mTimerInterval.

void	queueJob (ScopedLockType &)
	Queue a job to call invokeOnTimer().

bool	isDone () const

Protected Attributes
Application &	app_

beast::Journal	journal_

std::recursive_mutex	mtx_

uint256 const	hash_
	The hash of the object (in practice, always a ledger) we are trying to fetch.

int	timeouts_

bool	complete_

bool	failed_

bool	progress_
	Whether forward progress has been made.

std::chrono::milliseconds	timerInterval_
	The minimum time to wait between calls to execute().

QueueJobParameter	queueJobParameter_

Private Member Functions
void	onTimer (bool progress, ScopedLockType &peerSetLock) override
	Hook called from invokeOnTimer().

std::weak_ptr< TimeoutCounter >	pmDowncast () override
	Return a weak pointer to this.

void	trigger (std::size_t limit, ScopedLockType &sl)
	Trigger another round.

void	onLedgerBuilt (ScopedLockType &sl, std::optional< InboundLedger::Reason > reason={})
	Process a newly built ledger, such as store it.

void	notify (ScopedLockType &sl)
	Call the OnDeltaDataCB callbacks.

void	invokeOnTimer ()
	Calls onTimer() if in the right state.

Static Private Member Functions
static auto &	getCounter () noexcept

Private Attributes
InboundLedgers &	inboundLedgers_

std::uint32_t const	ledgerSeq_

std::unique_ptr< PeerSet >	peerSet_

std::shared_ptr< Ledger const >	replayTemp_ = {}

std::shared_ptr< Ledger const >	fullLedger_ = {}

std::map< std::uint32_t, std::shared_ptr< STTx const > >	orderedTxns_

std::vector< OnDeltaDataCB >	dataReadyCallbacks_

std::set< InboundLedger::Reason >	reasons_

std::uint32_t	noFeaturePeerCount = 0

bool	fallBack_ = false

boost::asio::basic_waitable_timer< std::chrono::steady_clock >	timer_

Friends
class	LedgerReplayTask

class	test::LedgerReplayClient

Detailed Description

Manage the retrieval of a ledger delta (header and transactions) from the network.

Before asking peers, always check if the local node has the ledger.

Definition at line 25 of file LedgerDeltaAcquire.h.

Member Typedef Documentation

◆ OnDeltaDataCB

using xrpl::LedgerDeltaAcquire::OnDeltaDataCB = std::function<void(bool successful, uint256 const& hash)>

A callback used to notify that the delta's data is ready or failed.

Parameters

successful	if the ledger delta data was acquired successfully
hash	hash of the ledger to build

Definition at line 36 of file LedgerDeltaAcquire.h.

◆ ScopedLockType

using xrpl::TimeoutCounter::ScopedLockType = std::unique_lock<std::recursive_mutex>

protectedinherited

Definition at line 64 of file TimeoutCounter.h.

Constructor & Destructor Documentation

◆ LedgerDeltaAcquire()

xrpl::LedgerDeltaAcquire::LedgerDeltaAcquire	(	Application &	app,
		InboundLedgers &	inboundLedgers,
		uint256 const &	ledgerHash,
		std::uint32_t	ledgerSeq,
		std::unique_ptr< PeerSet >	peerSet
	)

Constructor.

Parameters

app	Application reference
inboundLedgers	InboundLedgers reference
ledgerHash	hash of the ledger
ledgerSeq	sequence number of the ledger
peerSet	manage a set of peers that we will ask for the ledger

Definition at line 13 of file LedgerDeltaAcquire.cpp.

◆ ~LedgerDeltaAcquire()

xrpl::LedgerDeltaAcquire::~LedgerDeltaAcquire ( )

override

Definition at line 34 of file LedgerDeltaAcquire.cpp.

Member Function Documentation

◆ init()

void xrpl::LedgerDeltaAcquire::init ( int numPeers )

Start the LedgerDeltaAcquire task.

Parameters

numPeers number of peers to try initially

Definition at line 40 of file LedgerDeltaAcquire.cpp.

◆ processData()

void xrpl::LedgerDeltaAcquire::processData	(	LedgerHeader const &	info,
		std::map< std::uint32_t, std::shared_ptr< STTx const > > &&	orderedTxns
	)

Process the data extracted from a peer's reply.

Parameters

info	info (header) of the ledger
orderedTxns	set of Txns of the ledger

Note: info and Txns must have been verified against the ledger hash

Definition at line 121 of file LedgerDeltaAcquire.cpp.

◆ tryBuild()

std::shared_ptr< Ledger const > xrpl::LedgerDeltaAcquire::tryBuild ( std::shared_ptr< Ledger const > const & parent )

Try to build the ledger if not already.

Parameters

parent parent ledger

Returns: the ledger if built, nullptr otherwise (e.g. waiting for peers' replies of the ledger info (header) and Txns.)

Note: may throw runtime_error if the replay failed due to data error

Definition at line 174 of file LedgerDeltaAcquire.cpp.

◆ addDataCallback()

void xrpl::LedgerDeltaAcquire::addDataCallback	(	InboundLedger::Reason	reason,
		OnDeltaDataCB &&	cb
	)

Add a reason and a callback to the LedgerDeltaAcquire subtask.

The reason is used to process the ledger once it is replayed. The callback is called when the delta's data is ready or failed

Note: the callback will be called once and only once unless this object is destructed before the call.

Definition at line 152 of file LedgerDeltaAcquire.cpp.

◆ onTimer()

void xrpl::LedgerDeltaAcquire::onTimer	(	bool	progress,
		ScopedLockType &
	)

overrideprivatevirtual

Hook called from invokeOnTimer().

Implements xrpl::TimeoutCounter.

Definition at line 99 of file LedgerDeltaAcquire.cpp.

◆ pmDowncast()

std::weak_ptr< TimeoutCounter > xrpl::LedgerDeltaAcquire::pmDowncast ( )

overrideprivatevirtual

Return a weak pointer to this.

Implements xrpl::TimeoutCounter.

Definition at line 115 of file LedgerDeltaAcquire.cpp.

◆ trigger()

void xrpl::LedgerDeltaAcquire::trigger	(	std::size_t	limit,
		ScopedLockType &	sl
	)

private

Trigger another round.

Parameters

limit	number of new peers to send the request
sl	lock. this function must be called with the lock

Definition at line 51 of file LedgerDeltaAcquire.cpp.

◆ onLedgerBuilt()

void xrpl::LedgerDeltaAcquire::onLedgerBuilt	(	ScopedLockType &	sl,
		std::optional< InboundLedger::Reason >	reason = `{}`
	)

private

Process a newly built ledger, such as store it.

Parameters

sl	lock. this function must be called with the lock
reason	specific new reason if any

Note: this function should be called (1) when the ledger is built the first time, and (2) when a LedgerReplayTask with a new reason is added.

Definition at line 210 of file LedgerDeltaAcquire.cpp.

◆ notify()

void xrpl::LedgerDeltaAcquire::notify ( ScopedLockType & sl )

private

Call the OnDeltaDataCB callbacks.

Parameters

sl	lock. this function must be called with the lock

Definition at line 249 of file LedgerDeltaAcquire.cpp.

◆ cancel()

void xrpl::TimeoutCounter::cancel ( )

virtualinherited

Cancel the task by marking it as failed if the task is not done.

Note: this function does not attempt to cancel the scheduled timer or to remove the queued job if any. When the timer expires or the queued job starts, however, the code will see that the task is done and returns immediately, if it can lock the weak pointer of the task.

Definition at line 100 of file TimeoutCounter.cpp.

◆ setTimer()

void xrpl::TimeoutCounter::setTimer ( ScopedLockType & sl )

protectedinherited

Schedule a call to queueJob() after mTimerInterval.

Definition at line 32 of file TimeoutCounter.cpp.

◆ queueJob()

void xrpl::TimeoutCounter::queueJob ( ScopedLockType & sl )

protectedinherited

Queue a job to call invokeOnTimer().

Definition at line 51 of file TimeoutCounter.cpp.

◆ isDone()

bool xrpl::TimeoutCounter::isDone ( ) const

protectedinherited

Definition at line 99 of file TimeoutCounter.h.

◆ invokeOnTimer()

void xrpl::TimeoutCounter::invokeOnTimer ( )

privateinherited

Calls onTimer() if in the right state.

Only called by queueJob().

Definition at line 75 of file TimeoutCounter.cpp.

◆ getCounter()

static auto & xrpl::CountedObject< LedgerDeltaAcquire >::getCounter ( )

staticprivatenoexceptinherited

Definition at line 110 of file CountedObject.h.

Friends And Related Symbol Documentation

◆ LedgerReplayTask

friend class LedgerReplayTask

friend

Definition at line 141 of file LedgerDeltaAcquire.h.

◆ test::LedgerReplayClient

friend class test::LedgerReplayClient

friend

Definition at line 142 of file LedgerDeltaAcquire.h.

Member Data Documentation

◆ inboundLedgers_

InboundLedgers& xrpl::LedgerDeltaAcquire::inboundLedgers_

private

Definition at line 130 of file LedgerDeltaAcquire.h.

◆ ledgerSeq_

std::uint32_t const xrpl::LedgerDeltaAcquire::ledgerSeq_

private

Definition at line 131 of file LedgerDeltaAcquire.h.

◆ peerSet_

std::unique_ptr<PeerSet> xrpl::LedgerDeltaAcquire::peerSet_

private

Definition at line 132 of file LedgerDeltaAcquire.h.

◆ replayTemp_

std::shared_ptr<Ledger const> xrpl::LedgerDeltaAcquire::replayTemp_ = {}

private

Definition at line 133 of file LedgerDeltaAcquire.h.

◆ fullLedger_

std::shared_ptr<Ledger const> xrpl::LedgerDeltaAcquire::fullLedger_ = {}

private

Definition at line 134 of file LedgerDeltaAcquire.h.

◆ orderedTxns_

std::map<std::uint32_t, std::shared_ptr<STTx const> > xrpl::LedgerDeltaAcquire::orderedTxns_

private

Definition at line 135 of file LedgerDeltaAcquire.h.

◆ dataReadyCallbacks_

std::vector<OnDeltaDataCB> xrpl::LedgerDeltaAcquire::dataReadyCallbacks_

private

Definition at line 136 of file LedgerDeltaAcquire.h.

◆ reasons_

std::set<InboundLedger::Reason> xrpl::LedgerDeltaAcquire::reasons_

private

Definition at line 137 of file LedgerDeltaAcquire.h.

◆ noFeaturePeerCount

std::uint32_t xrpl::LedgerDeltaAcquire::noFeaturePeerCount = 0

private

Definition at line 138 of file LedgerDeltaAcquire.h.

◆ fallBack_

bool xrpl::LedgerDeltaAcquire::fallBack_ = false

private

Definition at line 139 of file LedgerDeltaAcquire.h.

◆ app_

Application& xrpl::TimeoutCounter::app_

protectedinherited

Definition at line 106 of file TimeoutCounter.h.

◆ journal_

beast::Journal xrpl::TimeoutCounter::journal_

protectedinherited

Definition at line 107 of file TimeoutCounter.h.

◆ mtx_

std::recursive_mutex xrpl::TimeoutCounter::mtx_

mutableprotectedinherited

Definition at line 108 of file TimeoutCounter.h.

◆ hash_

uint256 const xrpl::TimeoutCounter::hash_

protectedinherited

The hash of the object (in practice, always a ledger) we are trying to fetch.

Definition at line 112 of file TimeoutCounter.h.

◆ timeouts_

int xrpl::TimeoutCounter::timeouts_

protectedinherited

Definition at line 113 of file TimeoutCounter.h.

◆ complete_

bool xrpl::TimeoutCounter::complete_

protectedinherited

Definition at line 114 of file TimeoutCounter.h.

◆ failed_

bool xrpl::TimeoutCounter::failed_

protectedinherited

Definition at line 115 of file TimeoutCounter.h.

◆ progress_

bool xrpl::TimeoutCounter::progress_

protectedinherited

Whether forward progress has been made.

Definition at line 117 of file TimeoutCounter.h.

◆ timerInterval_

std::chrono::milliseconds xrpl::TimeoutCounter::timerInterval_

protectedinherited

The minimum time to wait between calls to execute().

Definition at line 119 of file TimeoutCounter.h.

◆ queueJobParameter_

QueueJobParameter xrpl::TimeoutCounter::queueJobParameter_

protectedinherited

Definition at line 121 of file TimeoutCounter.h.

◆ timer_

boost::asio::basic_waitable_timer<std::chrono::steady_clock> xrpl::TimeoutCounter::timer_

privateinherited

Definition at line 130 of file TimeoutCounter.h.

Public Types

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Private Member Functions

Static Private Member Functions

Private Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ OnDeltaDataCB

◆ ScopedLockType

Constructor & Destructor Documentation

◆ LedgerDeltaAcquire()

◆ ~LedgerDeltaAcquire()

Member Function Documentation

◆ init()

◆ processData()

◆ tryBuild()

◆ addDataCallback()

◆ onTimer()

◆ pmDowncast()

◆ trigger()

◆ onLedgerBuilt()

◆ notify()

◆ cancel()

◆ setTimer()

◆ queueJob()

◆ isDone()

◆ invokeOnTimer()

◆ getCounter()

Friends And Related Symbol Documentation

◆ LedgerReplayTask

◆ test::LedgerReplayClient

Member Data Documentation

◆ inboundLedgers_

◆ ledgerSeq_

◆ peerSet_

◆ replayTemp_

◆ fullLedger_

◆ orderedTxns_

◆ dataReadyCallbacks_

◆ reasons_

◆ noFeaturePeerCount

◆ fallBack_

◆ app_

◆ journal_

◆ mtx_

◆ hash_

◆ timeouts_

◆ complete_

◆ failed_

◆ progress_

◆ timerInterval_

◆ queueJobParameter_

◆ timer_
