#include <LedgerReplayTask.h>

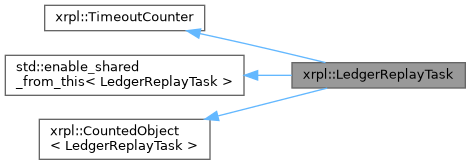

Inheritance diagram for xrpl::LedgerReplayTask:

[legend]

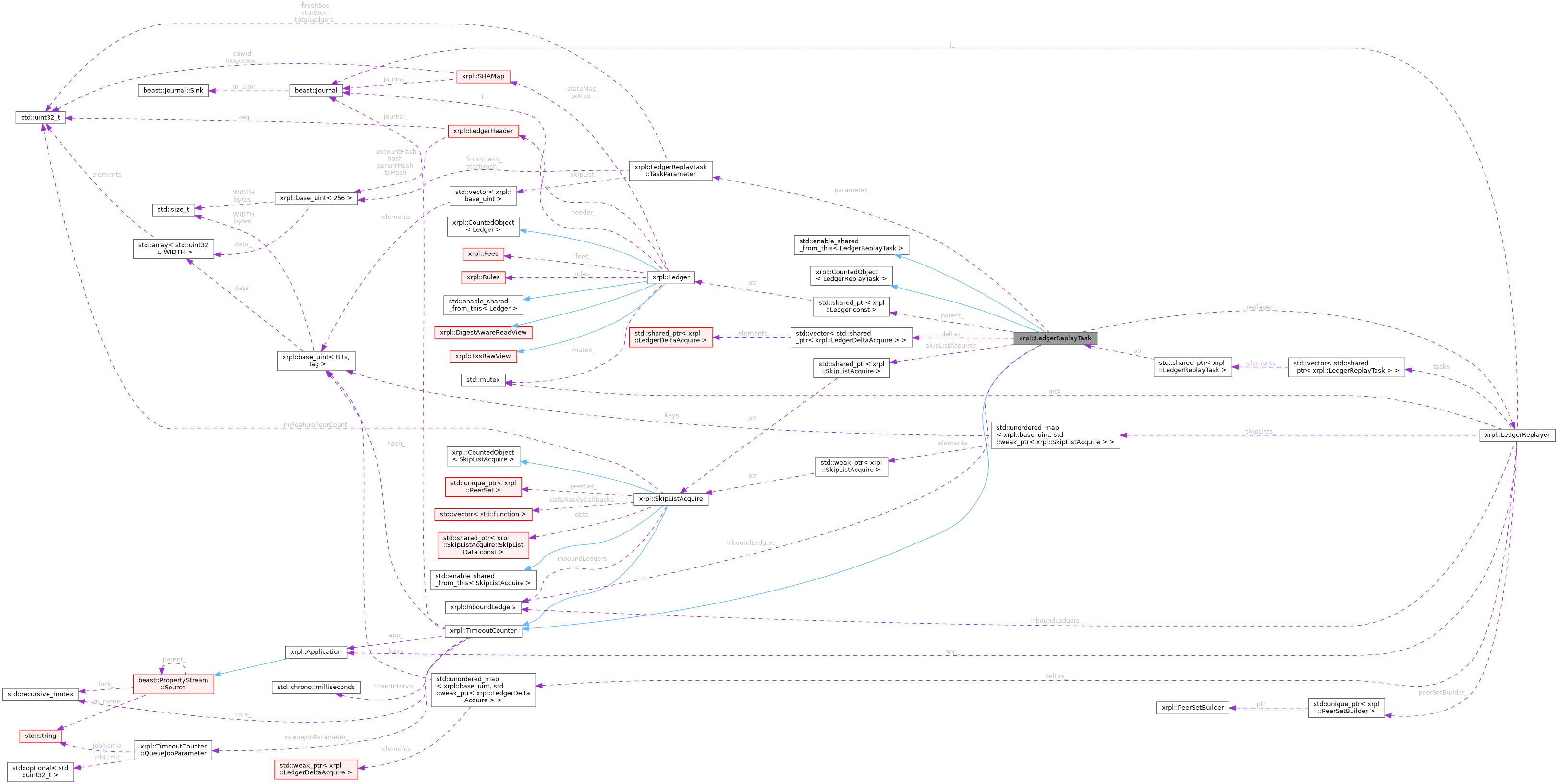

Collaboration diagram for xrpl::LedgerReplayTask:

[legend]

Classes
class	TaskParameter

Public Member Functions
	LedgerReplayTask (Application &app, InboundLedgers &inboundLedgers, LedgerReplayer &replayer, std::shared_ptr< SkipListAcquire > &skipListAcquirer, TaskParameter const &parameter)
	Constructor.
	~LedgerReplayTask () override
void	init ()
	Start the task.
void	addDelta (std::shared_ptr< LedgerDeltaAcquire > const &delta)
	add a new LedgerDeltaAcquire subtask
TaskParameter const &	getTaskParameter () const
bool	finished () const
	return if the task is finished
virtual void	cancel ()
	Cancel the task by marking it as failed if the task is not done.
T	shared_from_this (T... args)
T	weak_from_this (T... args)

Public Attributes
friend	Object

Protected Types
using	ScopedLockType = std::unique_lock<std::recursive_mutex>

Protected Member Functions
void	setTimer (ScopedLockType &)
	Schedule a call to queueJob() after timerInterval_.
void	queueJob (ScopedLockType &)
	Queue a job to call invokeOnTimer().
bool	isDone () const

Protected Attributes
Application &	app_
beast::Journal	journal_
std::recursive_mutex	mtx_
uint256 const	hash_
	The hash of the object (in practice, always a ledger) we are trying to fetch.
int	timeouts_ {0}
bool	complete_ {false}
bool	failed_ {false}
bool	progress_ {false}
	Whether forward progress has been made.
std::chrono::milliseconds	timerInterval_
	The minimum time to wait between calls to execute().
QueueJobParameter	queueJobParameter_

Private Member Functions
void	onTimer (bool progress, ScopedLockType &sl) override
	Hook called from invokeOnTimer().
std::weak_ptr< TimeoutCounter >	pmDowncast () override
	Return a weak pointer to this.
void	updateSkipList (uint256 const &hash, std::uint32_t seq, std::vector< uint256 > const &sList)
	Update this task (by a SkipListAcquire subtask) when skip list is ready.
void	deltaReady (uint256 const &deltaHash)
	Notify this task (by a LedgerDeltaAcquire subtask) that a delta is ready.
void	trigger (ScopedLockType &sl)
	Trigger another round.
void	tryAdvance (ScopedLockType &sl)
	Try to build more ledgers.
void	invokeOnTimer ()
	Calls onTimer() if in the right state.

Static Private Member Functions
static auto &	getCounter () noexcept

Private Attributes
InboundLedgers &	inboundLedgers_
LedgerReplayer &	replayer_
TaskParameter	parameter_
uint32_t	maxTimeouts_
std::shared_ptr< SkipListAcquire >	skipListAcquirer_
std::shared_ptr< Ledger const >	parent_
uint32_t	deltaToBuild_ = 0
std::vector< std::shared_ptr< LedgerDeltaAcquire > >	deltas_
boost::asio::basic_waitable_timer< std::chrono::steady_clock >	timer_

Friends
class	test::LedgerReplayClient

Detailed Description

Definition at line 19 of file LedgerReplayTask.h.

Member Typedef Documentation

◆ ScopedLockType

using xrpl::TimeoutCounter::ScopedLockType = std::unique_lock<std::recursive_mutex>

protectedinherited

Definition at line 65 of file TimeoutCounter.h.

Constructor & Destructor Documentation

◆ LedgerReplayTask()

xrpl::LedgerReplayTask::LedgerReplayTask	(	Application &	app,
		InboundLedgers &	inboundLedgers,
		LedgerReplayer &	replayer,
		std::shared_ptr< SkipListAcquire > &	skipListAcquirer,
		TaskParameter const &	parameter )

Constructor.

Parameters

app	Application reference
inboundLedgers	InboundLedgers reference
replayer	LedgerReplayer reference
skipListAcquirer	shared_ptr of SkipListAcquire subtask, to make sure it will not be destroyed.
parameter	parameter of the task

Definition at line 80 of file LedgerReplayTask.cpp.

◆ ~LedgerReplayTask()

xrpl::LedgerReplayTask::~LedgerReplayTask ( )

override

Definition at line 106 of file LedgerReplayTask.cpp.

Member Function Documentation

◆ init()

void xrpl::LedgerReplayTask::init ( )

Start the task.

Definition at line 112 of file LedgerReplayTask.cpp.

◆ addDelta()

void xrpl::LedgerReplayTask::addDelta ( std::shared_ptr< LedgerDeltaAcquire > const & delta )

add a new LedgerDeltaAcquire subtask

Parameters

delta the new LedgerDeltaAcquire subtask

Note: the LedgerDeltaAcquire subtasks must be added in order

Definition at line 263 of file LedgerReplayTask.cpp.

◆ getTaskParameter()

TaskParameter const & xrpl::LedgerReplayTask::getTaskParameter ( ) const

Definition at line 98 of file LedgerReplayTask.h.

◆ finished()

bool xrpl::LedgerReplayTask::finished ( ) const

return if the task is finished

Definition at line 294 of file LedgerReplayTask.cpp.

◆ onTimer()

void xrpl::LedgerReplayTask::onTimer	(	bool	progress,
		ScopedLockType &	)

overrideprivatevirtual

Hook called from invokeOnTimer().

Implements xrpl::TimeoutCounter.

Definition at line 242 of file LedgerReplayTask.cpp.

◆ pmDowncast()

std::weak_ptr< TimeoutCounter > xrpl::LedgerReplayTask::pmDowncast ( )

overrideprivatevirtual

Return a weak pointer to this.

Implements xrpl::TimeoutCounter.

Definition at line 257 of file LedgerReplayTask.cpp.

◆ updateSkipList()

void xrpl::LedgerReplayTask::updateSkipList	(	uint256 const &	hash,
		std::uint32_t	seq,
		std::vector< uint256 > const &	sList )

private

Update this task (by a SkipListAcquire subtask) when skip list is ready.

Parameters

hash	hash of the ledger that has the skip list
seq	sequence number of the ledger that has the skip list
sList	skip list

Definition at line 218 of file LedgerReplayTask.cpp.

◆ deltaReady()

void xrpl::LedgerReplayTask::deltaReady ( uint256 const & deltaHash )

private

Notify this task (by a LedgerDeltaAcquire subtask) that a delta is ready.

Parameters

deltaHash ledger hash of the delta

Definition at line 166 of file LedgerReplayTask.cpp.

◆ trigger()

void xrpl::LedgerReplayTask::trigger ( ScopedLockType & sl )

private

Trigger another round.

Parameters

sl	lock. this function must be called with the lock

Definition at line 141 of file LedgerReplayTask.cpp.

◆ tryAdvance()

void xrpl::LedgerReplayTask::tryAdvance ( ScopedLockType & sl )

private

Try to build more ledgers.

Parameters

sl	lock. this function must be called with the lock

Definition at line 175 of file LedgerReplayTask.cpp.

◆ cancel()

void xrpl::TimeoutCounter::cancel ( )

virtualinherited

Cancel the task by marking it as failed if the task is not done.

Note: this function does not attempt to cancel the scheduled timer or to remove the queued job if any. When the timer expires or the queued job starts, however, the code will see that the task is done and returns immediately, if it can lock the weak pointer of the task.

Definition at line 105 of file TimeoutCounter.cpp.

◆ setTimer()

void xrpl::TimeoutCounter::setTimer ( ScopedLockType & sl )

protectedinherited

Schedule a call to queueJob() after timerInterval_.

Definition at line 40 of file TimeoutCounter.cpp.

◆ queueJob()

void xrpl::TimeoutCounter::queueJob ( ScopedLockType & sl )

protectedinherited

Queue a job to call invokeOnTimer().

Definition at line 58 of file TimeoutCounter.cpp.

◆ isDone()

bool xrpl::TimeoutCounter::isDone ( ) const

protectedinherited

Definition at line 98 of file TimeoutCounter.h.

◆ invokeOnTimer()

void xrpl::TimeoutCounter::invokeOnTimer ( )

privateinherited

Calls onTimer() if in the right state.

Only called by queueJob().

Definition at line 80 of file TimeoutCounter.cpp.

◆ getCounter()

auto & xrpl::CountedObject< LedgerReplayTask >::getCounter ( )

staticprivatenoexceptinherited

Definition at line 109 of file CountedObject.h.

◆ test::LedgerReplayClient

friend class test::LedgerReplayClient

friend

Definition at line 153 of file LedgerReplayTask.h.

Member Data Documentation

◆ inboundLedgers_

InboundLedgers& xrpl::LedgerReplayTask::inboundLedgers_

private

Definition at line 144 of file LedgerReplayTask.h.

◆ replayer_

LedgerReplayer& xrpl::LedgerReplayTask::replayer_

private

Definition at line 145 of file LedgerReplayTask.h.

◆ parameter_

TaskParameter xrpl::LedgerReplayTask::parameter_

private

Definition at line 146 of file LedgerReplayTask.h.

◆ maxTimeouts_

uint32_t xrpl::LedgerReplayTask::maxTimeouts_

private

Definition at line 147 of file LedgerReplayTask.h.

◆ skipListAcquirer_

std::shared_ptr<SkipListAcquire> xrpl::LedgerReplayTask::skipListAcquirer_

private

Definition at line 148 of file LedgerReplayTask.h.

◆ parent_

std::shared_ptr<Ledger const> xrpl::LedgerReplayTask::parent_

private

Definition at line 149 of file LedgerReplayTask.h.

◆ deltaToBuild_

uint32_t xrpl::LedgerReplayTask::deltaToBuild_ = 0

private

Definition at line 150 of file LedgerReplayTask.h.

◆ deltas_

std::vector<std::shared_ptr<LedgerDeltaAcquire> > xrpl::LedgerReplayTask::deltas_

private

Definition at line 151 of file LedgerReplayTask.h.

◆ app_

Application& xrpl::TimeoutCounter::app_

protectedinherited

Definition at line 105 of file TimeoutCounter.h.

◆ journal_

beast::Journal xrpl::TimeoutCounter::journal_

protectedinherited

Definition at line 106 of file TimeoutCounter.h.

◆ mtx_

std::recursive_mutex xrpl::TimeoutCounter::mtx_

mutableprotectedinherited

Definition at line 107 of file TimeoutCounter.h.

◆ hash_

uint256 const xrpl::TimeoutCounter::hash_

protectedinherited

The hash of the object (in practice, always a ledger) we are trying to fetch.

Definition at line 111 of file TimeoutCounter.h.

◆ timeouts_

int xrpl::TimeoutCounter::timeouts_ {0}

protectedinherited

Definition at line 112 of file TimeoutCounter.h.

◆ complete_

bool xrpl::TimeoutCounter::complete_ {false}

protectedinherited

Definition at line 113 of file TimeoutCounter.h.

◆ failed_

bool xrpl::TimeoutCounter::failed_ {false}

protectedinherited

Definition at line 114 of file TimeoutCounter.h.

◆ progress_

bool xrpl::TimeoutCounter::progress_ {false}

protectedinherited

Whether forward progress has been made.

Definition at line 116 of file TimeoutCounter.h.

◆ timerInterval_

std::chrono::milliseconds xrpl::TimeoutCounter::timerInterval_

protectedinherited

The minimum time to wait between calls to execute().

Definition at line 118 of file TimeoutCounter.h.

◆ queueJobParameter_

QueueJobParameter xrpl::TimeoutCounter::queueJobParameter_

protectedinherited

Definition at line 120 of file TimeoutCounter.h.

◆ timer_

boost::asio::basic_waitable_timer<std::chrono::steady_clock> xrpl::TimeoutCounter::timer_

privateinherited

Definition at line 129 of file TimeoutCounter.h.

◆ Object

friend xrpl::CountedObject< LedgerReplayTask >::LedgerReplayTask

inherited

Definition at line 134 of file CountedObject.h.
