Public Member Functions | Protected Member Functions | Protected Attributes | Private Member Functions | Private Attributes | List of all members
xrpl::NodeStore::Database Class Referenceabstract

Persistency layer for NodeObject. More...

#include <Database.h>

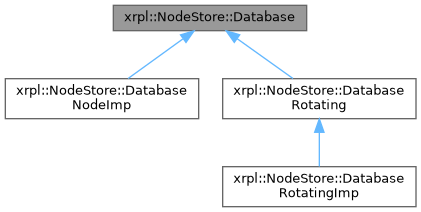

Inheritance diagram for xrpl::NodeStore::Database:
Inheritance graph
[legend]

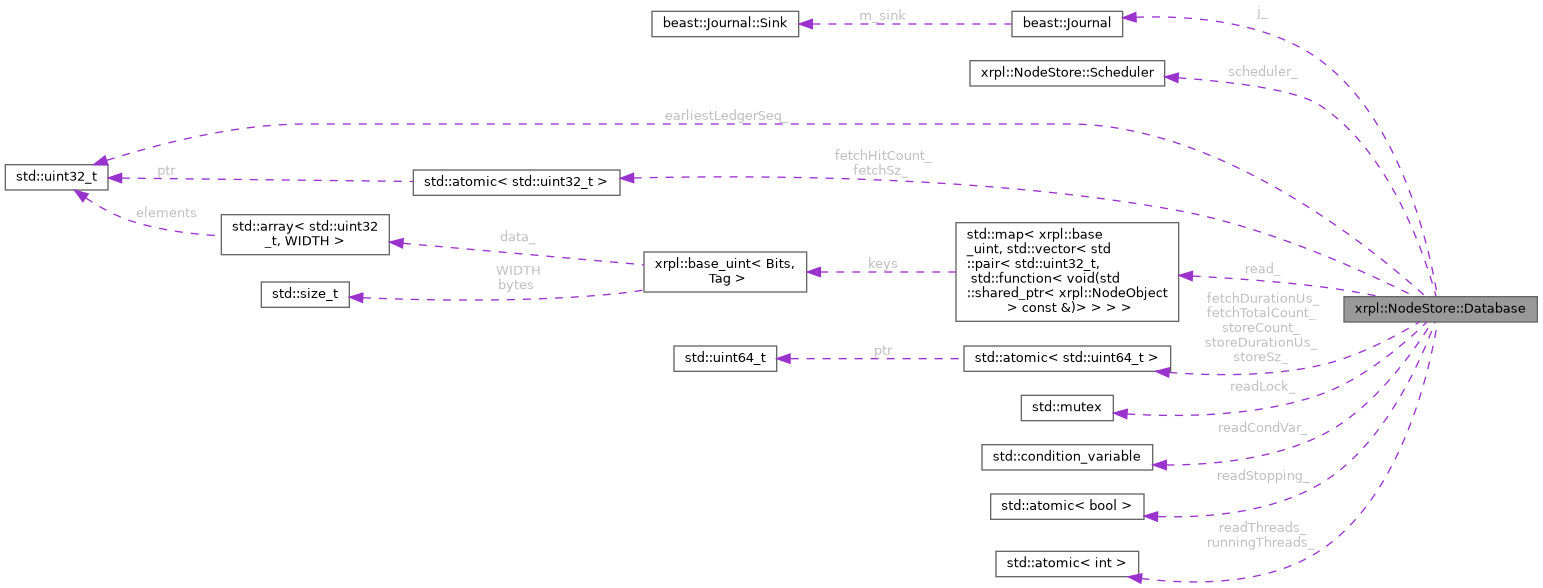

Collaboration diagram for xrpl::NodeStore::Database:
Collaboration graph
[legend]

Public Member Functions

 Database ()=delete

 Database (Scheduler &scheduler, int readThreads, Section const &config, beast::Journal j)
 Construct the node store.

virtual ~Database ()
 Destroy the node store.

virtual std::string getName () const =0
 Retrieve the name associated with this backend.

virtual void importDatabase (Database &source)=0
 Import objects from another database.

virtual std::int32_t getWriteLoad () const =0
 Retrieve the estimated number of pending write operations.

virtual void store (NodeObjectType type, Blob &&data, uint256 const &hash, std::uint32_t ledgerSeq)=0
 Store the object.

virtual bool isSameDB (std::uint32_t s1, std::uint32_t s2)=0

virtual void sync ()=0

std::shared_ptr< NodeObject > fetchNodeObject (uint256 const &hash, std::uint32_t ledgerSeq=0, FetchType fetchType=FetchType::synchronous, bool duplicate=false)
 Fetch a node object.

virtual void asyncFetch (uint256 const &hash, std::uint32_t ledgerSeq, std::function< void(std::shared_ptr< NodeObject > const &)> &&callback)
 Fetch an object without waiting.

std::uint64_t getStoreCount () const
 Gather statistics pertaining to read and write activities.

std::uint32_t getFetchTotalCount () const

std::uint32_t getFetchHitCount () const

std::uint64_t getStoreSize () const

std::uint32_t getFetchSize () const

void getCountsJson (Json::Value &obj)

int fdRequired () const
 Returns the number of file descriptors the database expects to need.

virtual void stop ()

bool isStopping () const

std::uint32_t earliestLedgerSeq () const noexcept


Protected Member Functions

void storeStats (std::uint64_t count, std::uint64_t sz)

void importInternal (Backend &dstBackend, Database &srcDB)

void updateFetchMetrics (uint64_t fetches, uint64_t hits, uint64_t duration)


Protected Attributes

beast::Journal const j_

Scheduler & scheduler_

int fdRequired_ {0}

std::atomic< std::uint32_t > fetchHitCount_ {0}

std::atomic< std::uint32_t > fetchSz_ {0}

std::uint32_t const earliestLedgerSeq_

int const requestBundle_


Private Member Functions

virtual std::shared_ptr< NodeObject > fetchNodeObject (uint256 const &hash, std::uint32_t ledgerSeq, FetchReport &fetchReport, bool duplicate)=0

virtual void for_each (std::function< void(std::shared_ptr< NodeObject >)> f)=0
 Visit every object in the database This is usually called during import.

void threadEntry ()


Private Attributes

std::atomic< std::uint64_t > storeCount_ {0}

std::atomic< std::uint64_t > storeSz_ {0}

std::atomic< std::uint64_t > fetchTotalCount_ {0}

std::atomic< std::uint64_t > fetchDurationUs_ {0}

std::atomic< std::uint64_t > storeDurationUs_ {0}

std::mutex readLock_

std::condition_variable readCondVar_

std::map< uint256, std::vector< std::pair< std::uint32_t, std::function< void(std::shared_ptr< NodeObject > const &)> > > > read_

std::atomic< bool > readStopping_ = false

std::atomic< int > readThreads_ = 0

std::atomic< int > runningThreads_ = 0


Detailed Description

Persistency layer for NodeObject.

A Node is a ledger object which is uniquely identified by a key, which is the 256-bit hash of the body of the node. The payload is a variable length block of serialized data.

All ledger data is stored as node objects and as such, needs to be persisted between launches. Furthermore, since the set of node objects will in general be larger than the amount of available memory, purged node objects which are later accessed must be retrieved from the node store.

See also
NodeObject

Definition at line 30 of file Database.h.

Constructor & Destructor Documentation

◆ Database() [1/2]

xrpl::NodeStore::Database::Database ( )
delete

◆ Database() [2/2]

xrpl::NodeStore::Database::Database ( Scheduler &  scheduler,
int  readThreads,
Section const &  config,
beast::Journal  j
)

Construct the node store.

Parameters
schedulerThe scheduler to use for performing asynchronous tasks.
readThreadsThe number of asynchronous read threads to create.
configThe configuration settings
journalDestination for logging output.

Definition at line 13 of file Database.cpp.

◆ ~Database()

xrpl::NodeStore::Database::~Database ( )
virtual

Destroy the node store.

All pending operations are completed, pending writes flushed, and files closed before this returns.

Definition at line 100 of file Database.cpp.

Member Function Documentation

◆ getName()

virtual std::string xrpl::NodeStore::Database::getName ( ) const
pure virtual

Retrieve the name associated with this backend.

This is used for diagnostics and may not reflect the actual path or paths used by the underlying backend.

Implemented in xrpl::NodeStore::DatabaseNodeImp, and xrpl::NodeStore::DatabaseRotatingImp.

◆ importDatabase()

virtual void xrpl::NodeStore::Database::importDatabase ( Database &  source)
pure virtual

Import objects from another database.

Implemented in xrpl::NodeStore::DatabaseNodeImp, and xrpl::NodeStore::DatabaseRotatingImp.

◆ getWriteLoad()

virtual std::int32_t xrpl::NodeStore::Database::getWriteLoad ( ) const
pure virtual

Retrieve the estimated number of pending write operations.

This is used for diagnostics.

Implemented in xrpl::NodeStore::DatabaseNodeImp, and xrpl::NodeStore::DatabaseRotatingImp.

◆ store()

virtual void xrpl::NodeStore::Database::store ( NodeObjectType  type,
Blob &&  data,
uint256 const &  hash,
std::uint32_t  ledgerSeq
)
pure virtual

Store the object.

The caller's Blob parameter is overwritten.

Parameters
typeThe type of object.
dataThe payload of the object. The caller's variable is overwritten.
hashThe 256-bit hash of the payload data.
ledgerSeqThe sequence of the ledger the object belongs to.
Returns
true if the object was stored?

Implemented in xrpl::NodeStore::DatabaseNodeImp, and xrpl::NodeStore::DatabaseRotatingImp.

◆ isSameDB()

virtual bool xrpl::NodeStore::Database::isSameDB ( std::uint32_t  s1,
std::uint32_t  s2
)
pure virtual

Implemented in xrpl::NodeStore::DatabaseNodeImp, and xrpl::NodeStore::DatabaseRotatingImp.

◆ sync()

virtual void xrpl::NodeStore::Database::sync ( )
pure virtual

Implemented in xrpl::NodeStore::DatabaseNodeImp, and xrpl::NodeStore::DatabaseRotatingImp.

◆ fetchNodeObject() [1/2]

std::shared_ptr< NodeObject > xrpl::NodeStore::Database::fetchNodeObject ( uint256 const &  hash,
std::uint32_t  ledgerSeq = 0,
FetchType  fetchType = FetchType::synchronous,
bool  duplicate = false
)

Fetch a node object.

If the object is known to be not in the database, isn't found in the database during the fetch, or failed to load correctly during the fetch, nullptr is returned.

Note
This can be called concurrently.
Parameters
hashThe key of the object to retrieve.
ledgerSeqThe sequence of the ledger where the object is stored.
fetchTypethe type of fetch, synchronous or asynchronous.
Returns
The object, or nullptr if it couldn't be retrieved.

Definition at line 202 of file Database.cpp.

◆ asyncFetch()

void xrpl::NodeStore::Database::asyncFetch ( uint256 const &  hash,
std::uint32_t  ledgerSeq,
std::function< void(std::shared_ptr< NodeObject > const &)> &&  callback
)
virtual

Fetch an object without waiting.

If I/O is required to determine whether or not the object is present, false is returned. Otherwise, true is returned and object is set to refer to the object, or nullptr if the object is not present. If I/O is required, the I/O is scheduled and true is returned

Note
This can be called concurrently.
Parameters
hashThe key of the object to retrieve
ledgerSeqThe sequence of the ledger where the object is stored.
callbackCallback function when read completes

Reimplemented in xrpl::NodeStore::DatabaseNodeImp.

Definition at line 149 of file Database.cpp.

◆ getStoreCount()

std::uint64_t xrpl::NodeStore::Database::getStoreCount ( ) const

Gather statistics pertaining to read and write activities.

Parameters
objJson object reference into which to place counters.

Definition at line 141 of file Database.h.

◆ getFetchTotalCount()

std::uint32_t xrpl::NodeStore::Database::getFetchTotalCount ( ) const

Definition at line 147 of file Database.h.

◆ getFetchHitCount()

std::uint32_t xrpl::NodeStore::Database::getFetchHitCount ( ) const

Definition at line 153 of file Database.h.

◆ getStoreSize()

std::uint64_t xrpl::NodeStore::Database::getStoreSize ( ) const

Definition at line 159 of file Database.h.

◆ getFetchSize()

std::uint32_t xrpl::NodeStore::Database::getFetchSize ( ) const

Definition at line 165 of file Database.h.

◆ getCountsJson()

void xrpl::NodeStore::Database::getCountsJson ( Json::Value &  obj)

Definition at line 225 of file Database.cpp.

◆ fdRequired()

int xrpl::NodeStore::Database::fdRequired ( ) const

Returns the number of file descriptors the database expects to need.

Definition at line 175 of file Database.h.

◆ stop()

void xrpl::NodeStore::Database::stop ( )
virtual

Definition at line 118 of file Database.cpp.

◆ isStopping()

bool xrpl::NodeStore::Database::isStopping ( ) const

Definition at line 112 of file Database.cpp.

◆ earliestLedgerSeq()

std::uint32_t xrpl::NodeStore::Database::earliestLedgerSeq ( ) const
noexcept
Returns
The earliest ledger sequence allowed

Definition at line 189 of file Database.h.

◆ storeStats()

void xrpl::NodeStore::Database::storeStats ( std::uint64_t  count,
std::uint64_t  sz
)
protected

Definition at line 216 of file Database.h.

◆ importInternal()

void xrpl::NodeStore::Database::importInternal ( Backend &  dstBackend,
Database &  srcDB
)
protected

Definition at line 164 of file Database.cpp.

◆ updateFetchMetrics()

void xrpl::NodeStore::Database::updateFetchMetrics ( uint64_t  fetches,
uint64_t  hits,
uint64_t  duration
)
protected

Definition at line 228 of file Database.h.

◆ fetchNodeObject() [2/2]

virtual std::shared_ptr< NodeObject > xrpl::NodeStore::Database::fetchNodeObject ( uint256 const &  hash,
std::uint32_t  ledgerSeq,
FetchReport &  fetchReport,
bool  duplicate
)
privatepure virtual

Implemented in xrpl::NodeStore::DatabaseNodeImp, and xrpl::NodeStore::DatabaseRotatingImp.

◆ for_each()

virtual void xrpl::NodeStore::Database::for_each ( std::function< void(std::shared_ptr< NodeObject >)>  f)
privatepure virtual

Visit every object in the database This is usually called during import.

Note
This routine will not be called concurrently with itself or other methods.
See also
import

Implemented in xrpl::NodeStore::DatabaseNodeImp, and xrpl::NodeStore::DatabaseRotatingImp.

◆ threadEntry()

void xrpl::NodeStore::Database::threadEntry ( )
private

Member Data Documentation

◆ j_

beast::Journal const xrpl::NodeStore::Database::j_
protected

Definition at line 195 of file Database.h.

◆ scheduler_

Scheduler& xrpl::NodeStore::Database::scheduler_
protected

Definition at line 196 of file Database.h.

◆ fdRequired_

int xrpl::NodeStore::Database::fdRequired_ {0}
protected

Definition at line 197 of file Database.h.

◆ fetchHitCount_

std::atomic<std::uint32_t> xrpl::NodeStore::Database::fetchHitCount_ {0}
protected

Definition at line 199 of file Database.h.

◆ fetchSz_

std::atomic<std::uint32_t> xrpl::NodeStore::Database::fetchSz_ {0}
protected

Definition at line 200 of file Database.h.

◆ earliestLedgerSeq_

std::uint32_t const xrpl::NodeStore::Database::earliestLedgerSeq_
protected

Definition at line 208 of file Database.h.

◆ requestBundle_

int const xrpl::NodeStore::Database::requestBundle_
protected

Definition at line 213 of file Database.h.

◆ storeCount_

std::atomic<std::uint64_t> xrpl::NodeStore::Database::storeCount_ {0}
private

Definition at line 236 of file Database.h.

◆ storeSz_

std::atomic<std::uint64_t> xrpl::NodeStore::Database::storeSz_ {0}
private

Definition at line 237 of file Database.h.

◆ fetchTotalCount_

std::atomic<std::uint64_t> xrpl::NodeStore::Database::fetchTotalCount_ {0}
private

Definition at line 238 of file Database.h.

◆ fetchDurationUs_

std::atomic<std::uint64_t> xrpl::NodeStore::Database::fetchDurationUs_ {0}
private

Definition at line 239 of file Database.h.

◆ storeDurationUs_

std::atomic<std::uint64_t> xrpl::NodeStore::Database::storeDurationUs_ {0}
private

Definition at line 240 of file Database.h.

◆ readLock_

std::mutex xrpl::NodeStore::Database::readLock_
mutableprivate

Definition at line 242 of file Database.h.

◆ readCondVar_

std::condition_variable xrpl::NodeStore::Database::readCondVar_
private

Definition at line 243 of file Database.h.

◆ read_

std::map<uint256, std::vector<std::pair<std::uint32_t, std::function<void(std::shared_ptr<NodeObject> const&)> > > > xrpl::NodeStore::Database::read_
private

Definition at line 247 of file Database.h.

◆ readStopping_

std::atomic<bool> xrpl::NodeStore::Database::readStopping_ = false
private

Definition at line 249 of file Database.h.

◆ readThreads_

std::atomic<int> xrpl::NodeStore::Database::readThreads_ = 0
private

Definition at line 250 of file Database.h.

◆ runningThreads_

std::atomic<int> xrpl::NodeStore::Database::runningThreads_ = 0
private

Definition at line 251 of file Database.h.

Generated by doxygen 1.9.8
