#include <OverlayImpl.h>

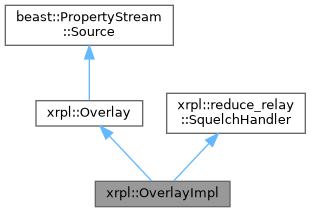

Inheritance diagram for xrpl::OverlayImpl:

[legend]

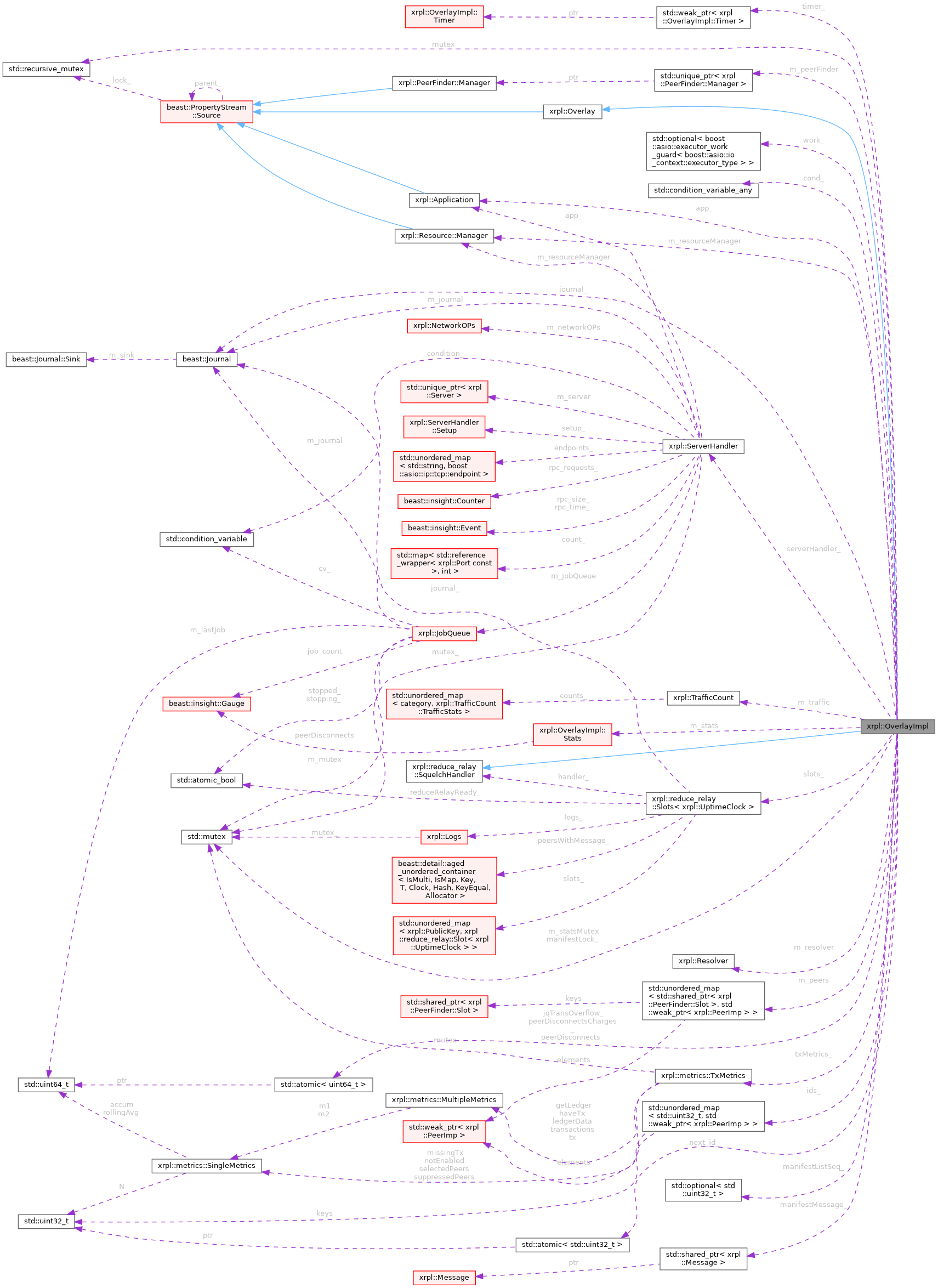

Collaboration diagram for xrpl::OverlayImpl:

[legend]

Classes
class	Child
struct	Timer
struct	TrafficGauges
struct	Stats

Public Types
enum class	Promote { Automatic , Never , Always }
using	PeerSequence = std::vector<std::shared_ptr<Peer>>

Public Member Functions
	OverlayImpl (Application &app, Setup setup, ServerHandler &serverHandler, resource::Manager &resourceManager, Resolver &resolver, boost::asio::io_context &ioContext, BasicConfig const &config, beast::insight::Collector::ptr const &collector)
	OverlayImpl (OverlayImpl const &)=delete
OverlayImpl &	operator= (OverlayImpl const &)=delete
void	start () override
void	stop () override
peer_finder::Manager &	peerFinder ()
resource::Manager &	resourceManager ()
Setup const &	setup () const
Handoff	onHandoff (std::unique_ptr< stream_type > &&bundle, http_request_type &&request, endpoint_type remoteEndpoint) override
	Conditionally accept an incoming HTTP request.
void	connect (beast::ip::Endpoint const &remoteEndpoint) override
	Establish a peer connection to the specified endpoint.
int	limit () override
	Returns the maximum number of peers we are configured to allow.
std::size_t	size () const override
	The number of active peers on the network Active peers are only those peers that have completed the handshake and are running the XRPL protocol.
json::Value	json () override
	Return diagnostics on the status of all peers.
PeerSequence	getActivePeers () const override
	Returns a sequence representing the current list of peers.
PeerSequence	getActivePeers (std::set< Peer::id_t > const &toSkip, std::size_t &active, std::size_t &disabled, std::size_t &enabledInSkip) const
	Get active peers excluding peers in toSkip.
void	checkTracking (std::uint32_t) override
	Calls the checkTracking function on each peer.
std::shared_ptr< Peer >	findPeerByShortID (Peer::id_t const &id) const override
	Returns the peer with the matching short id, or null.
std::shared_ptr< Peer >	findPeerByPublicKey (PublicKey const &pubKey) override
	Returns the peer with the matching public key, or null.
void	broadcast (protocol::TMProposeSet const &m) override
	Broadcast a proposal.
void	broadcast (protocol::TMValidation const &m) override
	Broadcast a validation.
std::set< Peer::id_t >	relay (protocol::TMProposeSet const &m, uint256 const &uid, PublicKey const &validator) override
	Relay a proposal.
std::set< Peer::id_t >	relay (protocol::TMValidation const &m, uint256 const &uid, PublicKey const &validator) override
	Relay a validation.
void	relay (uint256 const &, std::optional< std::reference_wrapper< protocol::TMTransaction > > m, std::set< Peer::id_t > const &skip) override
	Relay a transaction.
std::shared_ptr< Message >	getManifestsMessage ()
void	addActive (std::shared_ptr< PeerImp > const &peer)
void	remove (std::shared_ptr< peer_finder::Slot > const &slot)
void	activate (std::shared_ptr< PeerImp > const &peer)
	Called when a peer has connected successfully This is called after the peer handshake has been completed and during peer activation.
void	onPeerDeactivate (Peer::id_t id)
template<class UnaryFunc>
void	forEach (UnaryFunc &&f) const
void	onManifests (std::shared_ptr< protocol::TMManifests > const &m, std::shared_ptr< PeerImp > const &from)
void	reportInboundTraffic (TrafficCount::Category cat, int bytes)
void	reportOutboundTraffic (TrafficCount::Category cat, int bytes)
void	incJqTransOverflow () override
	Increment and retrieve counter for transaction job queue overflows.
std::uint64_t	getJqTransOverflow () const override
void	incPeerDisconnect () override
	Increment and retrieve counters for total peer disconnects, and disconnects we initiate for excessive resource consumption.
std::uint64_t	getPeerDisconnect () const override
void	incPeerDisconnectCharges () override
std::uint64_t	getPeerDisconnectCharges () const override
std::optional< std::uint32_t >	networkID () const override
	Returns the ID of the network this server is configured for, if any.
void	updateSlotAndSquelch (uint256 const &key, PublicKey const &validator, std::set< Peer::id_t > &&peers, protocol::MessageType type)
	Updates message count for validator/peer.
void	updateSlotAndSquelch (uint256 const &key, PublicKey const &validator, Peer::id_t peer, protocol::MessageType type)
	Overload to reduce allocation in case of single peer.
void	deletePeer (Peer::id_t id)
	Called when the peer is deleted.
json::Value	txMetrics () const override
	Returns tx reduce-relay metrics.
template<typename... Args>
void	addTxMetrics (Args... args)
	Add tx reduce-relay metrics.
template<class Function>
void	foreach (Function f) const
	Visit every active peer.
std::string const &	name () const
	Returns the name of this source.
void	add (Source &source)
	Add a child source.
template<class Derived>
Derived *	add (Derived *child)
	Add a child source by pointer.
void	remove (Source &child)
	Remove a child source from this Source.
void	removeAll ()
	Remove all child sources from this Source.
void	writeOne (PropertyStream &stream)
	Write only this Source to the stream.
void	write (PropertyStream &stream)
	write this source and all its children recursively to the stream.
void	write (PropertyStream &stream, std::string const &path)
	Parse the path and write the corresponding Source and optional children.
std::pair< Source *, bool >	find (std::string path)
	Parse the dot-delimited Source path and return the result.
Source *	findOneDeep (std::string const &name)
PropertyStream::Source *	findPath (std::string path)
PropertyStream::Source *	findOne (std::string const &name)

Static Public Member Functions
static bool	isPeerUpgrade (http_request_type const &request)
template<class Body>
static bool	isPeerUpgrade (boost::beast::http::response< Body > const &response)
template<class Fields>
static bool	isUpgrade (boost::beast::http::header< true, Fields > const &req)
template<class Fields>
static bool	isUpgrade (boost::beast::http::header< false, Fields > const &req)
static std::string	makePrefix (std::uint32_t id)
static bool	peelLeadingSlash (std::string *path)
static bool	peelTrailingSlashstar (std::string *path)
static std::string	peelName (std::string *path)

Protected Types
using	stream_type = boost::beast::ssl_stream<socket_type>

Private Types
using	clock_type = std::chrono::steady_clock
using	socket_type = boost::asio::ip::tcp::socket
using	address_type = boost::asio::ip::address
using	endpoint_type = boost::asio::ip::tcp::endpoint
using	error_code = boost::system::error_code

Private Member Functions
void	squelch (PublicKey const &validator, Peer::id_t const id, std::uint32_t squelchDuration) const override
	Squelch handler.
void	unsquelch (PublicKey const &validator, Peer::id_t id) const override
	Unsquelch handler.
std::shared_ptr< Writer >	makeRedirectResponse (std::shared_ptr< peer_finder::Slot > const &slot, http_request_type const &request, address_type remoteAddress)
bool	processCrawl (http_request_type const &req, Handoff &handoff)
	Handles crawl requests.
bool	processValidatorList (http_request_type const &req, Handoff &handoff)
	Handles validator list requests.
bool	processHealth (http_request_type const &req, Handoff &handoff)
	Handles health requests.
bool	processRequest (http_request_type const &req, Handoff &handoff)
	Handles non-peer protocol requests.
json::Value	getOverlayInfo () const
	Returns information about peers on the overlay network.
json::Value	getServerInfo ()
	Returns information about the local server.
json::Value	getServerCounts ()
	Returns information about the local server's performance counters.
json::Value	getUnlInfo ()
	Returns information about the local server's UNL.
void	onWrite (beast::PropertyStream::Map &stream) override
	Subclass override.
void	remove (Child &child)
void	stopChildren ()
void	autoConnect ()
void	sendEndpoints ()
void	sendTxQueue () const
	Send once a second transactions' hashes aggregated by peers.
void	deleteIdlePeers ()
	Check if peers stopped relaying messages and if slots stopped receiving messages from the validator.
void	collectMetrics ()

Static Private Member Functions
static std::shared_ptr< Writer >	makeErrorResponse (std::shared_ptr< peer_finder::Slot > const &slot, http_request_type const &request, address_type remoteAddress, std::string const &msg)

Private Attributes
Application &	app_
boost::asio::io_context &	ioContext_
std::optional< boost::asio::executor_work_guard< boost::asio::io_context::executor_type > >	work_
boost::asio::strand< boost::asio::io_context::executor_type >	strand_
std::recursive_mutex	mutex_
std::condition_variable_any	cond_
std::weak_ptr< Timer >	timer_
boost::container::flat_map< Child *, std::weak_ptr< Child > >	list_
Setup	setup_
beast::Journal const	journal_
ServerHandler &	serverHandler_
resource::Manager &	resourceManager_
peer_finder::StoreSqdb	store_
std::unique_ptr< peer_finder::Manager >	peerFinder_
TrafficCount	traffic_
hash_map< std::shared_ptr< peer_finder::Slot >, std::weak_ptr< PeerImp > >	peers_
hash_map< Peer::id_t, std::weak_ptr< PeerImp > >	ids_
Resolver &	resolver_
std::atomic< Peer::id_t >	nextId_
int	timerCount_ {0}
std::atomic< uint64_t >	jqTransOverflow_ {0}
std::atomic< uint64_t >	peerDisconnects_ {0}
std::atomic< uint64_t >	peerDisconnectsCharges_ {0}
reduce_relay::Slots< UptimeClock >	slots_
metrics::TxMetrics	txMetrics_
std::shared_ptr< Message >	manifestMessage_
std::optional< std::uint32_t >	manifestListSeq_
std::mutex	manifestLock_
Stats	stats_
std::mutex	statsMutex_
std::string const	name_
std::recursive_mutex	lock_
Item	item_
Source *	parent_ {nullptr}
List< Item >	children_

Detailed Description

Definition at line 69 of file OverlayImpl.h.

Member Typedef Documentation

◆ clock_type

using xrpl::OverlayImpl::clock_type = std::chrono::steady_clock

private

Definition at line 86 of file OverlayImpl.h.

◆ socket_type

using xrpl::OverlayImpl::socket_type = boost::asio::ip::tcp::socket

private

Definition at line 87 of file OverlayImpl.h.

◆ address_type

using xrpl::OverlayImpl::address_type = boost::asio::ip::address

private

Definition at line 88 of file OverlayImpl.h.

◆ endpoint_type

using xrpl::OverlayImpl::endpoint_type = boost::asio::ip::tcp::endpoint

private

Definition at line 89 of file OverlayImpl.h.

◆ error_code

using xrpl::OverlayImpl::error_code = boost::system::error_code

private

Definition at line 90 of file OverlayImpl.h.

◆ stream_type

using xrpl::Overlay::stream_type = boost::beast::ssl_stream<socket_type>

protectedinherited

Definition at line 41 of file Overlay.h.

◆ PeerSequence

using xrpl::Overlay::PeerSequence = std::vector<std::shared_ptr<Peer>>

inherited

Definition at line 66 of file Overlay.h.

Member Enumeration Documentation

◆ Promote

enum class xrpl::Overlay::Promote

stronginherited

Enumerator
Automatic
Never
Always

Definition at line 51 of file Overlay.h.

Constructor & Destructor Documentation

◆ OverlayImpl() [1/2]

xrpl::OverlayImpl::OverlayImpl	(	Application &	app,
		Setup	setup,
		ServerHandler &	serverHandler,
		resource::Manager &	resourceManager,
		Resolver &	resolver,
		boost::asio::io_context &	ioContext,
		BasicConfig const &	config,
		beast::insight::Collector::ptr const &	collector )

Definition at line 167 of file OverlayImpl.cpp.

◆ OverlayImpl() [2/2]

xrpl::OverlayImpl::OverlayImpl ( OverlayImpl const & )

delete

Member Function Documentation

◆ operator=()

OverlayImpl & xrpl::OverlayImpl::operator= ( OverlayImpl const & )

delete

◆ start()

void xrpl::OverlayImpl::start ( )

overridevirtual

Reimplemented from xrpl::Overlay.

Definition at line 510 of file OverlayImpl.cpp.

◆ stop()

void xrpl::OverlayImpl::stop ( )

overridevirtual

Reimplemented from xrpl::Overlay.

Definition at line 598 of file OverlayImpl.cpp.

◆ peerFinder()

peer_finder::Manager & xrpl::OverlayImpl::peerFinder ( )

Definition at line 169 of file OverlayImpl.h.

◆ resourceManager()

resource::Manager & xrpl::OverlayImpl::resourceManager ( )

Definition at line 175 of file OverlayImpl.h.

◆ setup()

Setup const & xrpl::OverlayImpl::setup ( ) const

Definition at line 181 of file OverlayImpl.h.

◆ onHandoff()

Handoff xrpl::OverlayImpl::onHandoff	(	std::unique_ptr< stream_type > &&	bundle,
		http_request_type &&	request,
		endpoint_type	remoteAddress )

overridevirtual

Conditionally accept an incoming HTTP request.

Implements xrpl::Overlay.

Definition at line 212 of file OverlayImpl.cpp.

◆ connect()

void xrpl::OverlayImpl::connect ( beast::ip::Endpoint const & address )

overridevirtual

Establish a peer connection to the specified endpoint.

The call returns immediately, the connection attempt is performed asynchronously.

Implements xrpl::Overlay.

Definition at line 431 of file OverlayImpl.cpp.

◆ limit()

int xrpl::OverlayImpl::limit ( )

overridevirtual

Returns the maximum number of peers we are configured to allow.

Implements xrpl::Overlay.

Definition at line 787 of file OverlayImpl.cpp.

◆ size()

std::size_t xrpl::OverlayImpl::size ( ) const

overridevirtual

The number of active peers on the network Active peers are only those peers that have completed the handshake and are running the XRPL protocol.

Implements xrpl::Overlay.

Definition at line 780 of file OverlayImpl.cpp.

◆ json()

json::Value xrpl::OverlayImpl::json ( )

overridevirtual

Return diagnostics on the status of all peers.

Implements xrpl::Overlay.

Definition at line 900 of file OverlayImpl.cpp.

◆ getActivePeers() [1/2]

Overlay::PeerSequence xrpl::OverlayImpl::getActivePeers ( ) const

overridevirtual

Returns a sequence representing the current list of peers.

The snapshot is made at the time of the call.

Implements xrpl::Overlay.

Definition at line 1123 of file OverlayImpl.cpp.

◆ getActivePeers() [2/2]

Overlay::PeerSequence xrpl::OverlayImpl::getActivePeers	(	std::set< Peer::id_t > const &	toSkip,
		std::size_t &	active,
		std::size_t &	disabled,
		std::size_t &	enabledInSkip ) const

Get active peers excluding peers in toSkip.

Parameters

toSkip	peers to skip
active	a number of active peers
disabled	a number of peers with tx reduce-relay feature disabled
enabledInSkip	a number of peers with tx reduce-relay feature enabled and in toSkip

Returns: active peers less peers in toSkip

Definition at line 1134 of file OverlayImpl.cpp.

◆ checkTracking()

void xrpl::OverlayImpl::checkTracking ( std::uint32_t index )

overridevirtual

Calls the checkTracking function on each peer.

Parameters

index the value to pass to the peer's checkTracking function

Implements xrpl::Overlay.

Definition at line 1173 of file OverlayImpl.cpp.

◆ findPeerByShortID()

std::shared_ptr< Peer > xrpl::OverlayImpl::findPeerByShortID ( Peer::id_t const & id ) const

overridevirtual

Returns the peer with the matching short id, or null.

Implements xrpl::Overlay.

Definition at line 1179 of file OverlayImpl.cpp.

◆ findPeerByPublicKey()

std::shared_ptr< Peer > xrpl::OverlayImpl::findPeerByPublicKey ( PublicKey const & pubKey )

overridevirtual

Returns the peer with the matching public key, or null.

Implements xrpl::Overlay.

Definition at line 1191 of file OverlayImpl.cpp.

◆ broadcast() [1/2]

void xrpl::OverlayImpl::broadcast ( protocol::TMProposeSet const & m )

overridevirtual

Broadcast a proposal.

Implements xrpl::Overlay.

Definition at line 1208 of file OverlayImpl.cpp.

◆ broadcast() [2/2]

void xrpl::OverlayImpl::broadcast ( protocol::TMValidation const & m )

overridevirtual

Broadcast a validation.

Implements xrpl::Overlay.

Definition at line 1230 of file OverlayImpl.cpp.

◆ relay() [1/3]

std::set< Peer::id_t > xrpl::OverlayImpl::relay	(	protocol::TMProposeSet const &	m,
		uint256 const &	uid,
		PublicKey const &	validator )

overridevirtual

Relay a proposal.

Parameters

m	the serialized proposal
uid	the id used to identify this proposal
validator	The pubkey of the validator that issued this proposal

Returns: the set of peers which have already sent us this proposal

Implements xrpl::Overlay.

Definition at line 1215 of file OverlayImpl.cpp.

◆ relay() [2/3]

std::set< Peer::id_t > xrpl::OverlayImpl::relay	(	protocol::TMValidation const &	m,
		uint256 const &	uid,
		PublicKey const &	validator )

overridevirtual

Relay a validation.

Parameters

m	the serialized validation
uid	the id used to identify this validation
validator	The pubkey of the validator that issued this validation

Returns: the set of peers which have already sent us this validation

Implements xrpl::Overlay.

Definition at line 1237 of file OverlayImpl.cpp.

◆ relay() [3/3]

void xrpl::OverlayImpl::relay	(	uint256 const &	hash,
		std::optional< std::reference_wrapper< protocol::TMTransaction > >	m,
		std::set< Peer::id_t > const &	toSkip )

overridevirtual

Relay a transaction.

If the tx reduce-relay feature is enabled then randomly select peers to relay to and queue transaction's hash for the rest of the peers.

Parameters

hash	transaction's hash
m	transaction's protocol message to relay
toSkip	peers which have already seen this transaction

Implements xrpl::Overlay.

Definition at line 1327 of file OverlayImpl.cpp.

◆ getManifestsMessage()

std::shared_ptr< Message > xrpl::OverlayImpl::getManifestsMessage ( )

Definition at line 1252 of file OverlayImpl.cpp.

◆ addActive()

void xrpl::OverlayImpl::addActive ( std::shared_ptr< PeerImp > const & peer )

Definition at line 470 of file OverlayImpl.cpp.

◆ remove() [1/3]

void xrpl::OverlayImpl::remove ( std::shared_ptr< peer_finder::Slot > const & slot )

Definition at line 501 of file OverlayImpl.cpp.

◆ activate()

void xrpl::OverlayImpl::activate ( std::shared_ptr< PeerImp > const & peer )

Called when a peer has connected successfully This is called after the peer handshake has been completed and during peer activation.

A peer has connected successfully This is called after the peer handshake has been completed and during peer activation.

At this point, the peer address and the public key are known.

Definition at line 638 of file OverlayImpl.cpp.

◆ onPeerDeactivate()

void xrpl::OverlayImpl::onPeerDeactivate ( Peer::id_t id )

Definition at line 659 of file OverlayImpl.cpp.

◆ forEach()

template<class UnaryFunc>

void xrpl::OverlayImpl::forEach ( UnaryFunc && f ) const

Definition at line 283 of file OverlayImpl.h.

◆ onManifests()

void xrpl::OverlayImpl::onManifests	(	std::shared_ptr< protocol::TMManifests > const &	m,
		std::shared_ptr< PeerImp > const &	from )

Definition at line 666 of file OverlayImpl.cpp.

◆ isPeerUpgrade() [1/2]

bool xrpl::OverlayImpl::isPeerUpgrade ( http_request_type const & request )

static

Definition at line 367 of file OverlayImpl.cpp.

◆ isPeerUpgrade() [2/2]

template<class Body>

bool xrpl::OverlayImpl::isPeerUpgrade ( boost::beast::http::response< Body > const & response )

static

Definition at line 315 of file OverlayImpl.h.

◆ isUpgrade() [1/2]

template<class Fields>

bool xrpl::OverlayImpl::isUpgrade ( boost::beast::http::header< true, Fields > const & req )

static

Definition at line 324 of file OverlayImpl.h.

◆ isUpgrade() [2/2]

template<class Fields>

bool xrpl::OverlayImpl::isUpgrade ( boost::beast::http::header< false, Fields > const & req )

static

Definition at line 337 of file OverlayImpl.h.

◆ makePrefix()

std::string xrpl::OverlayImpl::makePrefix ( std::uint32_t id )

static

Definition at line 376 of file OverlayImpl.cpp.

◆ reportInboundTraffic()

void xrpl::OverlayImpl::reportInboundTraffic	(	TrafficCount::Category	cat,
		int	bytes )

Definition at line 764 of file OverlayImpl.cpp.

◆ reportOutboundTraffic()

void xrpl::OverlayImpl::reportOutboundTraffic	(	TrafficCount::Category	cat,
		int	bytes )

Definition at line 770 of file OverlayImpl.cpp.

◆ incJqTransOverflow()

void xrpl::OverlayImpl::incJqTransOverflow ( )

overridevirtual

Increment and retrieve counter for transaction job queue overflows.

Implements xrpl::Overlay.

Definition at line 356 of file OverlayImpl.h.

◆ getJqTransOverflow()

std::uint64_t xrpl::OverlayImpl::getJqTransOverflow ( ) const

overridevirtual

Implements xrpl::Overlay.

Definition at line 362 of file OverlayImpl.h.

◆ incPeerDisconnect()

void xrpl::OverlayImpl::incPeerDisconnect ( )

overridevirtual

Increment and retrieve counters for total peer disconnects, and disconnects we initiate for excessive resource consumption.

Implements xrpl::Overlay.

Definition at line 368 of file OverlayImpl.h.

◆ getPeerDisconnect()

std::uint64_t xrpl::OverlayImpl::getPeerDisconnect ( ) const

overridevirtual

Implements xrpl::Overlay.

Definition at line 374 of file OverlayImpl.h.

◆ incPeerDisconnectCharges()

void xrpl::OverlayImpl::incPeerDisconnectCharges ( )

overridevirtual

Implements xrpl::Overlay.

Definition at line 380 of file OverlayImpl.h.

◆ getPeerDisconnectCharges()

std::uint64_t xrpl::OverlayImpl::getPeerDisconnectCharges ( ) const

overridevirtual

Implements xrpl::Overlay.

Definition at line 386 of file OverlayImpl.h.

◆ networkID()

std::optional< std::uint32_t > xrpl::OverlayImpl::networkID ( ) const

overridevirtual

Returns the ID of the network this server is configured for, if any.

The ID is just a numerical identifier, with the IDs 0, 1 and 2 used to identify the mainnet, the testnet and the devnet respectively.

Returns: The numerical identifier configured by the administrator of the server. An unseated optional, otherwise.

Implements xrpl::Overlay.

Definition at line 392 of file OverlayImpl.h.

◆ updateSlotAndSquelch() [1/2]

void xrpl::OverlayImpl::updateSlotAndSquelch	(	uint256 const &	key,
		PublicKey const &	validator,
		std::set< Peer::id_t > &&	peers,
		protocol::MessageType	type )

Updates message count for validator/peer.

Sends TMSquelch if the number of messages for N peers reaches threshold T. A message is counted if a peer receives the message for the first time and if the message has been relayed.

Parameters

key	Unique message's key
validator	Validator's public key
peers	Peers' id to update the slots for
type	Received protocol message type

Definition at line 1526 of file OverlayImpl.cpp.

◆ updateSlotAndSquelch() [2/2]

void xrpl::OverlayImpl::updateSlotAndSquelch	(	uint256 const &	key,
		PublicKey const &	validator,
		Peer::id_t	peer,
		protocol::MessageType	type )

Overload to reduce allocation in case of single peer.

Definition at line 1556 of file OverlayImpl.cpp.

◆ deletePeer()

void xrpl::OverlayImpl::deletePeer ( Peer::id_t id )

Called when the peer is deleted.

If the peer was selected to be the source of messages from the validator then squelched peers have to be unsquelched.

Parameters

id Peer's id

Definition at line 1584 of file OverlayImpl.cpp.

◆ txMetrics()

json::Value xrpl::OverlayImpl::txMetrics ( ) const

overridevirtual

Returns tx reduce-relay metrics.

Returns: json value of tx reduce-relay metrics

Implements xrpl::Overlay.

Definition at line 434 of file OverlayImpl.h.

◆ addTxMetrics()

template<typename... Args>

void xrpl::OverlayImpl::addTxMetrics ( Args... args )

Add tx reduce-relay metrics.

Definition at line 444 of file OverlayImpl.h.

◆ squelch()

void xrpl::OverlayImpl::squelch	(	PublicKey const &	validator,
		Peer::id_t const	id,
		std::uint32_t	duration ) const

overrideprivatevirtual

Squelch handler.

Parameters

validator	Public key of the source validator
id	Peer's id to squelch
duration	Squelch duration in seconds

Implements xrpl::reduce_relay::SquelchHandler.

Definition at line 1517 of file OverlayImpl.cpp.

◆ unsquelch()

void xrpl::OverlayImpl::unsquelch	(	PublicKey const &	validator,
		Peer::id_t	id ) const

overrideprivatevirtual

Unsquelch handler.

Parameters

validator	Public key of the source validator
id	Peer's id to unsquelch

Implements xrpl::reduce_relay::SquelchHandler.

Definition at line 1506 of file OverlayImpl.cpp.

◆ makeRedirectResponse()

std::shared_ptr< Writer > xrpl::OverlayImpl::makeRedirectResponse	(	std::shared_ptr< peer_finder::Slot > const &	slot,
		http_request_type const &	request,
		address_type	remoteAddress )

private

Definition at line 384 of file OverlayImpl.cpp.

◆ makeErrorResponse()

std::shared_ptr< Writer > xrpl::OverlayImpl::makeErrorResponse	(	std::shared_ptr< peer_finder::Slot > const &	slot,
		http_request_type const &	request,
		address_type	remoteAddress,
		std::string const &	msg )

staticprivate

Definition at line 411 of file OverlayImpl.cpp.

◆ processCrawl()

bool xrpl::OverlayImpl::processCrawl	(	http_request_type const &	req,
		Handoff &	handoff )

private

Handles crawl requests.

Crawl returns information about the node and its peers so crawlers can map the network.

Returns: true if the request was handled.

Definition at line 911 of file OverlayImpl.cpp.

◆ processValidatorList()

bool xrpl::OverlayImpl::processValidatorList	(	http_request_type const &	req,
		Handoff &	handoff )

private

Handles validator list requests.

Using a /vl/<hex-encoded public key> URL, will retrieve the latest validator list (or UNL) that this node has for that public key, if the node trusts that public key.

Returns: true if the request was handled.

Definition at line 947 of file OverlayImpl.cpp.

◆ processHealth()

bool xrpl::OverlayImpl::processHealth	(	http_request_type const &	req,
		Handoff &	handoff )

private

Handles health requests.

Health returns information about the health of the node.

Returns: true if the request was handled.

Definition at line 1011 of file OverlayImpl.cpp.

◆ processRequest()

bool xrpl::OverlayImpl::processRequest	(	http_request_type const &	req,
		Handoff &	handoff )

private

Handles non-peer protocol requests.

Returns: true if the request was handled.

Definition at line 1115 of file OverlayImpl.cpp.

◆ getOverlayInfo()

json::Value xrpl::OverlayImpl::getOverlayInfo ( ) const

private

Returns information about peers on the overlay network.

Reported through the /crawl API Controlled through the config section [crawl] overlay=[0|1]

Definition at line 793 of file OverlayImpl.cpp.

◆ getServerInfo()

json::Value xrpl::OverlayImpl::getServerInfo ( )

private

Returns information about the local server.

Reported through the /crawl API Controlled through the config section [crawl] server=[0|1]

Definition at line 837 of file OverlayImpl.cpp.

◆ getServerCounts()

json::Value xrpl::OverlayImpl::getServerCounts ( )

private

Returns information about the local server's performance counters.

Reported through the /crawl API Controlled through the config section [crawl] counts=[0|1]

Definition at line 864 of file OverlayImpl.cpp.

◆ getUnlInfo()

json::Value xrpl::OverlayImpl::getUnlInfo ( )

private

Returns information about the local server's UNL.

Reported through the /crawl API Controlled through the config section [crawl] unl=[0|1]

Definition at line 870 of file OverlayImpl.cpp.

◆ onWrite()

void xrpl::OverlayImpl::onWrite ( beast::PropertyStream::Map & )

overrideprivatevirtual

Subclass override.

The default version does nothing.

Reimplemented from beast::PropertyStream::Source.

Definition at line 615 of file OverlayImpl.cpp.

◆ remove() [2/3]

void xrpl::OverlayImpl::remove ( Child & child )

private

Definition at line 1419 of file OverlayImpl.cpp.

◆ stopChildren()

void xrpl::OverlayImpl::stopChildren ( )

private

Definition at line 1428 of file OverlayImpl.cpp.

◆ autoConnect()

void xrpl::OverlayImpl::autoConnect ( )

private

Definition at line 1460 of file OverlayImpl.cpp.

◆ sendEndpoints()

void xrpl::OverlayImpl::sendEndpoints ( )

private

Definition at line 1468 of file OverlayImpl.cpp.

◆ sendTxQueue()

void xrpl::OverlayImpl::sendTxQueue ( ) const

private

Send once a second transactions' hashes aggregated by peers.

Definition at line 1486 of file OverlayImpl.cpp.

◆ deleteIdlePeers()

void xrpl::OverlayImpl::deleteIdlePeers ( )

private

Check if peers stopped relaying messages and if slots stopped receiving messages from the validator.

Definition at line 1596 of file OverlayImpl.cpp.

◆ collectMetrics()

void xrpl::OverlayImpl::collectMetrics ( )

private

Definition at line 619 of file OverlayImpl.h.

◆ foreach()

template<class Function>

void xrpl::Overlay::foreach ( Function f ) const

inherited

Visit every active peer.

The visitor must be invocable as: Function(std::shared_ptr<Peer> const& peer);

Parameters

f	the invocable to call with every peer

Definition at line 200 of file Overlay.h.

◆ name()

std::string const & beast::PropertyStream::Source::name ( ) const

nodiscardinherited

Returns the name of this source.

Definition at line 168 of file beast_PropertyStream.cpp.

◆ add() [1/2]

void beast::PropertyStream::Source::add ( Source & source )

inherited

Add a child source.

Definition at line 174 of file beast_PropertyStream.cpp.

◆ add() [2/2]

template<class Derived>

Derived * beast::PropertyStream::Source::add ( Derived * child )

inherited

Add a child source by pointer.

The source pointer is returned so it can be used in ctor-initializers.

Definition at line 349 of file PropertyStream.h.

◆ remove() [3/3]

void beast::PropertyStream::Source::remove ( Source & child )

inherited

Remove a child source from this Source.

Definition at line 185 of file beast_PropertyStream.cpp.

◆ removeAll()

void beast::PropertyStream::Source::removeAll ( )

inherited

Remove all child sources from this Source.

Definition at line 196 of file beast_PropertyStream.cpp.

◆ writeOne()

void beast::PropertyStream::Source::writeOne ( PropertyStream & stream )

inherited

Write only this Source to the stream.

Definition at line 209 of file beast_PropertyStream.cpp.

◆ write() [1/2]

void beast::PropertyStream::Source::write ( PropertyStream & stream )

inherited

write this source and all its children recursively to the stream.

Definition at line 216 of file beast_PropertyStream.cpp.

◆ write() [2/2]

void beast::PropertyStream::Source::write	(	PropertyStream &	stream,
		std::string const &	path )

inherited

Parse the path and write the corresponding Source and optional children.

If the source is found, it is written. If the wildcard character '*' exists as the last character in the path, then all the children are written recursively.

Definition at line 228 of file beast_PropertyStream.cpp.

◆ find()

std::pair< PropertyStream::Source *, bool > beast::PropertyStream::Source::find ( std::string path )

inherited

Parse the dot-delimited Source path and return the result.

The first value will be a pointer to the Source object corresponding to the given path. If no Source object exists, then the first value will be nullptr and the second value will be undefined. The second value is a boolean indicating whether or not the path string specifies the wildcard character '*' as the last character.

print statement examples "parent.child" prints child and all of its children "parent.child." start at the parent and print down to child "parent.grandchild" prints nothing- grandchild not direct descendent "parent.grandchild." starts at the parent and prints down to grandchild "parent.grandchild.*" starts at parent, print through grandchild children

Definition at line 246 of file beast_PropertyStream.cpp.

◆ findOneDeep()

PropertyStream::Source * beast::PropertyStream::Source::findOneDeep ( std::string const & name )

inherited

Definition at line 317 of file beast_PropertyStream.cpp.

◆ findPath()

PropertyStream::Source * beast::PropertyStream::Source::findPath ( std::string path )

inherited

Definition at line 334 of file beast_PropertyStream.cpp.

◆ findOne()

PropertyStream::Source * beast::PropertyStream::Source::findOne ( std::string const & name )

inherited

Definition at line 352 of file beast_PropertyStream.cpp.

◆ peelLeadingSlash()

bool beast::PropertyStream::Source::peelLeadingSlash ( std::string * path )

staticinherited

Definition at line 266 of file beast_PropertyStream.cpp.

◆ peelTrailingSlashstar()

bool beast::PropertyStream::Source::peelTrailingSlashstar ( std::string * path )

staticinherited

Definition at line 277 of file beast_PropertyStream.cpp.

◆ peelName()

std::string beast::PropertyStream::Source::peelName ( std::string * path )

staticinherited

Definition at line 293 of file beast_PropertyStream.cpp.

Member Data Documentation

◆ app_

Application& xrpl::OverlayImpl::app_

private

Definition at line 109 of file OverlayImpl.h.

◆ ioContext_

boost::asio::io_context& xrpl::OverlayImpl::ioContext_

private

Definition at line 110 of file OverlayImpl.h.

◆ work_

std::optional<boost::asio::executor_work_guard<boost::asio::io_context::executor_type> > xrpl::OverlayImpl::work_

private

Definition at line 111 of file OverlayImpl.h.

◆ strand_

boost::asio::strand<boost::asio::io_context::executor_type> xrpl::OverlayImpl::strand_

private

Definition at line 112 of file OverlayImpl.h.

◆ mutex_

std::recursive_mutex xrpl::OverlayImpl::mutex_

mutableprivate

Definition at line 113 of file OverlayImpl.h.

◆ cond_

std::condition_variable_any xrpl::OverlayImpl::cond_

private

Definition at line 114 of file OverlayImpl.h.

◆ timer_

std::weak_ptr<Timer> xrpl::OverlayImpl::timer_

private

Definition at line 115 of file OverlayImpl.h.

◆ list_

boost::container::flat_map<Child*, std::weak_ptr<Child> > xrpl::OverlayImpl::list_

private

Definition at line 116 of file OverlayImpl.h.

◆ setup_

Setup xrpl::OverlayImpl::setup_

private

Definition at line 117 of file OverlayImpl.h.

◆ journal_

beast::Journal const xrpl::OverlayImpl::journal_

private

Definition at line 118 of file OverlayImpl.h.

◆ serverHandler_

ServerHandler& xrpl::OverlayImpl::serverHandler_

private

Definition at line 119 of file OverlayImpl.h.

◆ resourceManager_

resource::Manager& xrpl::OverlayImpl::resourceManager_

private

Definition at line 120 of file OverlayImpl.h.

◆ store_

peer_finder::StoreSqdb xrpl::OverlayImpl::store_

private

Definition at line 121 of file OverlayImpl.h.

◆ peerFinder_

std::unique_ptr<peer_finder::Manager> xrpl::OverlayImpl::peerFinder_

private

Definition at line 122 of file OverlayImpl.h.

◆ traffic_

TrafficCount xrpl::OverlayImpl::traffic_

private

Definition at line 123 of file OverlayImpl.h.

◆ peers_

hash_map<std::shared_ptr<peer_finder::Slot>, std::weak_ptr<PeerImp> > xrpl::OverlayImpl::peers_

private

Definition at line 124 of file OverlayImpl.h.

◆ ids_

hash_map<Peer::id_t, std::weak_ptr<PeerImp> > xrpl::OverlayImpl::ids_

private

Definition at line 125 of file OverlayImpl.h.

◆ resolver_

Resolver& xrpl::OverlayImpl::resolver_

private

Definition at line 126 of file OverlayImpl.h.

◆ nextId_

std::atomic<Peer::id_t> xrpl::OverlayImpl::nextId_

private

Definition at line 127 of file OverlayImpl.h.

◆ timerCount_

int xrpl::OverlayImpl::timerCount_ {0}

private

Definition at line 128 of file OverlayImpl.h.

◆ jqTransOverflow_

std::atomic<uint64_t> xrpl::OverlayImpl::jqTransOverflow_ {0}

private

Definition at line 129 of file OverlayImpl.h.

◆ peerDisconnects_

std::atomic<uint64_t> xrpl::OverlayImpl::peerDisconnects_ {0}

private

Definition at line 130 of file OverlayImpl.h.

◆ peerDisconnectsCharges_

std::atomic<uint64_t> xrpl::OverlayImpl::peerDisconnectsCharges_ {0}

private

Definition at line 131 of file OverlayImpl.h.

◆ slots_

reduce_relay::Slots<UptimeClock> xrpl::OverlayImpl::slots_

private

Definition at line 133 of file OverlayImpl.h.

◆ txMetrics_

metrics::TxMetrics xrpl::OverlayImpl::txMetrics_

private

Definition at line 136 of file OverlayImpl.h.

◆ manifestMessage_

std::shared_ptr<Message> xrpl::OverlayImpl::manifestMessage_

private

Definition at line 139 of file OverlayImpl.h.

◆ manifestListSeq_

std::optional<std::uint32_t> xrpl::OverlayImpl::manifestListSeq_

private

Definition at line 141 of file OverlayImpl.h.

◆ manifestLock_

std::mutex xrpl::OverlayImpl::manifestLock_

private

Definition at line 143 of file OverlayImpl.h.

◆ stats_

Stats xrpl::OverlayImpl::stats_

private

Definition at line 614 of file OverlayImpl.h.

◆ statsMutex_

std::mutex xrpl::OverlayImpl::statsMutex_

private

Definition at line 615 of file OverlayImpl.h.

◆ name_

std::string const beast::PropertyStream::Source::name_

privateinherited

Definition at line 317 of file PropertyStream.h.

◆ lock_

std::recursive_mutex beast::PropertyStream::Source::lock_

privateinherited

Definition at line 318 of file PropertyStream.h.

◆ item_

Item beast::PropertyStream::Source::item_

privateinherited

Definition at line 319 of file PropertyStream.h.

◆ parent_

Source* beast::PropertyStream::Source::parent_ {nullptr}

privateinherited

Definition at line 320 of file PropertyStream.h.

◆ children_

List<Item> beast::PropertyStream::Source::children_

privateinherited

Definition at line 321 of file PropertyStream.h.

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Private Types

Private Member Functions

Static Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ clock_type

◆ socket_type

◆ address_type

◆ endpoint_type

◆ error_code

◆ stream_type

◆ PeerSequence

Member Enumeration Documentation

◆ Promote

Constructor & Destructor Documentation

◆ OverlayImpl() [1/2]

◆ OverlayImpl() [2/2]

Member Function Documentation

◆ operator=()

◆ start()

◆ stop()

◆ peerFinder()

◆ resourceManager()

◆ setup()

◆ onHandoff()

◆ connect()

◆ limit()

◆ size()

◆ json()

◆ getActivePeers() [1/2]

◆ getActivePeers() [2/2]

◆ checkTracking()

◆ findPeerByShortID()

◆ findPeerByPublicKey()

◆ broadcast() [1/2]

◆ broadcast() [2/2]

◆ relay() [1/3]

◆ relay() [2/3]

◆ relay() [3/3]

◆ getManifestsMessage()

◆ addActive()

◆ remove() [1/3]

◆ activate()

◆ onPeerDeactivate()

◆ forEach()

◆ onManifests()

◆ isPeerUpgrade() [1/2]

◆ isPeerUpgrade() [2/2]

◆ isUpgrade() [1/2]

◆ isUpgrade() [2/2]

◆ makePrefix()

◆ reportInboundTraffic()

◆ reportOutboundTraffic()

◆ incJqTransOverflow()

◆ getJqTransOverflow()

◆ incPeerDisconnect()

◆ getPeerDisconnect()

◆ incPeerDisconnectCharges()

◆ getPeerDisconnectCharges()

◆ networkID()

◆ updateSlotAndSquelch() [1/2]

◆ updateSlotAndSquelch() [2/2]

◆ deletePeer()

◆ txMetrics()

◆ addTxMetrics()

◆ squelch()

◆ unsquelch()

◆ makeRedirectResponse()

◆ makeErrorResponse()

◆ processCrawl()

◆ processValidatorList()

◆ processHealth()

◆ processRequest()

◆ getOverlayInfo()
