Inheritance diagram for xrpl::node_store::NuDBBackend:

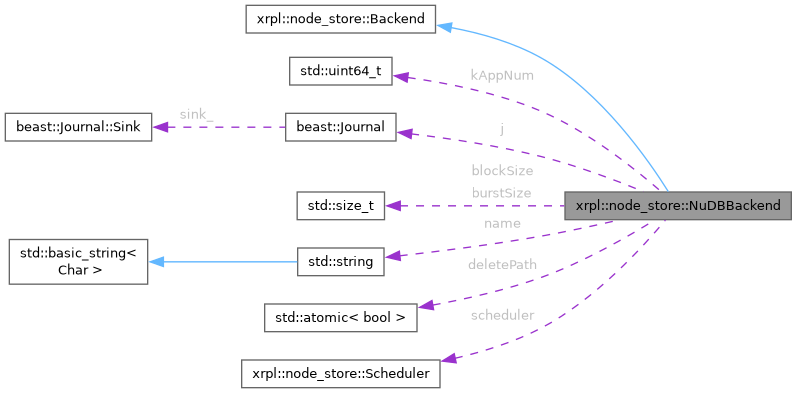

Collaboration diagram for xrpl::node_store::NuDBBackend:

[legend]

Public Member Functions
	NuDBBackend (size_t keyBytes, Section const &keyValues, std::size_t burstSize, Scheduler &scheduler, beast::Journal journal)
	NuDBBackend (size_t keyBytes, Section const &keyValues, std::size_t burstSize, Scheduler &scheduler, nudb::context &context, beast::Journal journal)
	~NuDBBackend () override
std::string	getName () override
	Get the human-readable name of this backend.
std::optional< std::size_t >	getBlockSize () const override
	Get the block size for backends that support it.
void	open (bool createIfMissing, uint64_t appType, uint64_t uid, uint64_t salt) override
	Open the backend.
bool	isOpen () override
	Returns true is the database is open.
void	open (bool createIfMissing) override
	Open the backend.
void	close () override
	Close the backend.
Status	fetch (uint256 const &hash, std::shared_ptr< NodeObject > *pno) override
	Fetch a single object.
void	doInsert (std::shared_ptr< NodeObject > const &no)
void	store (std::shared_ptr< NodeObject > const &no) override
	Store a single object.
void	storeBatch (Batch const &batch) override
	Store a group of objects.
void	sync () override
void	forEach (std::function< void(std::shared_ptr< NodeObject >)> f) override
	Visit every object in the database This is usually called during import.
int	getWriteLoad () override
	Estimate the number of write operations pending.
void	setDeletePath () override
	Remove contents on disk upon destruction.
void	verify () override
	Perform consistency checks on database.
int	fdRequired () const override
	Returns the number of file descriptors the backend expects to need.

Public Attributes
beast::Journal const	j
size_t const	keyBytes
std::size_t const	burstSize
std::string const	name
std::size_t const	blockSize
nudb::store	db
std::atomic< bool >	deletePath
Scheduler &	scheduler

Static Public Attributes
static constexpr std::uint64_t	kAppNum = 1

Static Private Member Functions
static std::size_t	parseBlockSize (std::string const &name, Section const &keyValues, beast::Journal journal)

Detailed Description

Definition at line 49 of file libxrpl/nodestore/backend/NuDBFactory.cpp.

Constructor & Destructor Documentation

◆ NuDBBackend() [1/2]

xrpl::node_store::NuDBBackend::NuDBBackend	(	size_t	keyBytes,
		Section const &	keyValues,
		std::size_t	burstSize,
		Scheduler &	scheduler,
		beast::Journal	journal )

Definition at line 67 of file libxrpl/nodestore/backend/NuDBFactory.cpp.

◆ NuDBBackend() [2/2]

xrpl::node_store::NuDBBackend::NuDBBackend	(	size_t	keyBytes,
		Section const &	keyValues,
		std::size_t	burstSize,
		Scheduler &	scheduler,
		nudb::context &	context,
		beast::Journal	journal )

Definition at line 85 of file libxrpl/nodestore/backend/NuDBFactory.cpp.

◆ ~NuDBBackend()

xrpl::node_store::NuDBBackend::~NuDBBackend ( )

override

Definition at line 105 of file libxrpl/nodestore/backend/NuDBFactory.cpp.

Member Function Documentation

◆ getName()

std::string xrpl::node_store::NuDBBackend::getName ( )

overridevirtual

Get the human-readable name of this backend.

This is used for diagnostic output.

Implements xrpl::node_store::Backend.

Definition at line 120 of file libxrpl/nodestore/backend/NuDBFactory.cpp.

◆ getBlockSize()

std::optional< std::size_t > xrpl::node_store::NuDBBackend::getBlockSize ( ) const

nodiscardoverridevirtual

Get the block size for backends that support it.

Reimplemented from xrpl::node_store::Backend.

Definition at line 126 of file libxrpl/nodestore/backend/NuDBFactory.cpp.

◆ open() [1/2]

void xrpl::node_store::NuDBBackend::open	(	bool	createIfMissing,
		uint64_t	appType,
		uint64_t	uid,
		uint64_t	salt )

overridevirtual

Open the backend.

Parameters

createIfMissing	Create the database files if necessary.
appType	Deterministic appType used to create a backend.
uid	Deterministic uid used to create a backend.
salt	Deterministic salt used to create a backend.

Exceptions

std::runtime_error is function is called not for NuDB backend.

Reimplemented from xrpl::node_store::Backend.

Definition at line 132 of file libxrpl/nodestore/backend/NuDBFactory.cpp.

◆ isOpen()

bool xrpl::node_store::NuDBBackend::isOpen ( )

overridevirtual

Returns true is the database is open.

Implements xrpl::node_store::Backend.

Definition at line 170 of file libxrpl/nodestore/backend/NuDBFactory.cpp.

◆ open() [2/2]

void xrpl::node_store::NuDBBackend::open ( bool createIfMissing )

overridevirtual

Open the backend.

Parameters

createIfMissing Create the database files if necessary. This allows the caller to catch exceptions.

Implements xrpl::node_store::Backend.

Definition at line 176 of file libxrpl/nodestore/backend/NuDBFactory.cpp.

◆ close()

void xrpl::node_store::NuDBBackend::close ( )

overridevirtual

Close the backend.

This allows the caller to catch exceptions.

Implements xrpl::node_store::Backend.

Definition at line 182 of file libxrpl/nodestore/backend/NuDBFactory.cpp.

◆ fetch()

Status xrpl::node_store::NuDBBackend::fetch	(	uint256 const &	hash,
		std::shared_ptr< NodeObject > *	pObject )

overridevirtual

Fetch a single object.

If the object is not found or an error is encountered, the result will indicate the condition.

Note: This will be called concurrently.

Parameters

hash	The hash of the object.
pObject	[out] The created object if successful.

Returns: The result of the operation.

Implements xrpl::node_store::Backend.

Definition at line 209 of file libxrpl/nodestore/backend/NuDBFactory.cpp.

◆ doInsert()

void xrpl::node_store::NuDBBackend::doInsert ( std::shared_ptr< NodeObject > const & no )

Definition at line 237 of file libxrpl/nodestore/backend/NuDBFactory.cpp.

◆ store()

void xrpl::node_store::NuDBBackend::store ( std::shared_ptr< NodeObject > const & object )

overridevirtual

Store a single object.

Depending on the implementation this may happen immediately or deferred using a scheduled task.

Note: This will be called concurrently.

Parameters

object The object to store.

Implements xrpl::node_store::Backend.

Definition at line 249 of file libxrpl/nodestore/backend/NuDBFactory.cpp.

◆ storeBatch()

void xrpl::node_store::NuDBBackend::storeBatch ( Batch const & batch )

overridevirtual

Store a group of objects.

Note: This function will not be called concurrently with itself or store.

Implements xrpl::node_store::Backend.

Definition at line 261 of file libxrpl/nodestore/backend/NuDBFactory.cpp.

◆ sync()

void xrpl::node_store::NuDBBackend::sync ( )

overridevirtual

Implements xrpl::node_store::Backend.

Definition at line 274 of file libxrpl/nodestore/backend/NuDBFactory.cpp.

◆ forEach()

void xrpl::node_store::NuDBBackend::forEach ( std::function< void(std::shared_ptr< NodeObject >)> f )

overridevirtual

Visit every object in the database This is usually called during import.

Note: This routine will not be called concurrently with itself or other methods.

See also: import

Implements xrpl::node_store::Backend.

Definition at line 279 of file libxrpl/nodestore/backend/NuDBFactory.cpp.

◆ getWriteLoad()

int xrpl::node_store::NuDBBackend::getWriteLoad ( )

overridevirtual

Estimate the number of write operations pending.

Implements xrpl::node_store::Backend.

Definition at line 316 of file libxrpl/nodestore/backend/NuDBFactory.cpp.

◆ setDeletePath()

void xrpl::node_store::NuDBBackend::setDeletePath ( )

overridevirtual

Remove contents on disk upon destruction.

Implements xrpl::node_store::Backend.

Definition at line 322 of file libxrpl/nodestore/backend/NuDBFactory.cpp.

◆ verify()

void xrpl::node_store::NuDBBackend::verify ( )

overridevirtual

Perform consistency checks on database.

This method is implemented only by NuDBBackend. It is not yet called anywhere, but it might be a good idea to one day call it at startup to avert a crash.

Reimplemented from xrpl::node_store::Backend.

Definition at line 328 of file libxrpl/nodestore/backend/NuDBFactory.cpp.
