Manages the count of available connections for the various slots. More...

#include <Counts.h>

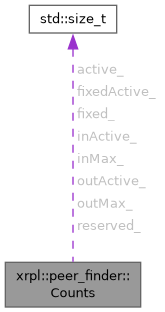

Collaboration diagram for xrpl::peer_finder::Counts:

Public Member Functions
void	add (Slot const &s)
	Adds the slot state and properties to the slot counts.
void	remove (Slot const &s)
	Removes the slot state and properties from the slot counts.
bool	canActivate (Slot const &s) const
	Returns true if the slot can become active.
std::size_t	attemptsNeeded () const
	Returns the number of attempts needed to bring us to the max.
std::size_t	attempts () const
	Returns the number of outbound connection attempts.
int	outMax () const
	Returns the total number of outbound slots.
int	outActive () const
	Returns the number of outbound peers assigned an open slot.
std::size_t	fixed () const
	Returns the number of fixed connections.
std::size_t	fixedActive () const
	Returns the number of active fixed connections.
void	onConfig (Config const &config)
	Called when the config is set or changed.
int	acceptCount () const
	Returns the number of accepted connections that haven't handshaked.
int	connectCount () const
	Returns the number of connection attempts currently active.
int	closingCount () const
	Returns the number of connections that are gracefully closing.
int	inMax () const
	Returns the total number of inbound slots.
int	inboundActive () const
	Returns the number of inbound peers assigned an open slot.
int	totalActive () const
	Returns the total number of active peers excluding fixed peers.
int	inboundSlotsFree () const
	Returns the number of unused inbound slots.
int	outboundSlotsFree () const
	Returns the number of unused outbound slots.
bool	isConnectedToNetwork () const
	Returns true if the slot logic considers us "connected" to the network.
void	onWrite (beast::PropertyStream::Map &map) const
	Output statistics.
std::string	stateString () const
	Records the state for diagnostics.

Private Member Functions
void	adjust (Slot const &s, CountAdjustment const dir)

Static Private Member Functions
template<typename T>
static void	adjustCounter (T &counter, CountAdjustment dir)
	Increments or decrements a counter based on the adjustment direction.

Private Attributes
int	attempts_ {0}
	Outbound connection attempts.
std::size_t	active_ {0}
	Active connections, including fixed and reserved.
std::size_t	inMax_ {0}
	Total number of inbound slots.
std::size_t	inActive_ {0}
	Number of inbound slots assigned to active peers.
std::size_t	outMax_ {0}
	Maximum desired outbound slots.
std::size_t	outActive_ {0}
	Active outbound slots.
std::size_t	fixed_ {0}
	Fixed connections.
std::size_t	fixedActive_ {0}
	Active fixed connections.
std::size_t	reserved_ {0}
	Reserved connections.
int	acceptCount_ {0}
int	closingCount_ {0}

Detailed Description

Manages the count of available connections for the various slots.

Definition at line 23 of file Counts.h.

Member Function Documentation

◆ add()

void xrpl::peer_finder::Counts::add ( Slot const & s )

Adds the slot state and properties to the slot counts.

Definition at line 30 of file Counts.h.

◆ remove()

void xrpl::peer_finder::Counts::remove ( Slot const & s )

Removes the slot state and properties from the slot counts.

Definition at line 39 of file Counts.h.

◆ canActivate()

bool xrpl::peer_finder::Counts::canActivate ( Slot const & s ) const

nodiscard

Returns true if the slot can become active.

Definition at line 48 of file Counts.h.

◆ attemptsNeeded()

std::size_t xrpl::peer_finder::Counts::attemptsNeeded ( ) const

nodiscard

Returns the number of attempts needed to bring us to the max.

Definition at line 68 of file Counts.h.

◆ attempts()

std::size_t xrpl::peer_finder::Counts::attempts ( ) const

nodiscard

Returns the number of outbound connection attempts.

Definition at line 79 of file Counts.h.

◆ outMax()

int xrpl::peer_finder::Counts::outMax ( ) const

nodiscard

Returns the total number of outbound slots.

Definition at line 88 of file Counts.h.

◆ outActive()

int xrpl::peer_finder::Counts::outActive ( ) const

nodiscard

Returns the number of outbound peers assigned an open slot.

Fixed peers do not count towards outbound slots used.

Definition at line 98 of file Counts.h.

◆ fixed()

std::size_t xrpl::peer_finder::Counts::fixed ( ) const

nodiscard

Returns the number of fixed connections.

Definition at line 107 of file Counts.h.

◆ fixedActive()

std::size_t xrpl::peer_finder::Counts::fixedActive ( ) const

nodiscard

Returns the number of active fixed connections.

Definition at line 116 of file Counts.h.

◆ onConfig()

void xrpl::peer_finder::Counts::onConfig ( Config const & config )

Called when the config is set or changed.

Definition at line 127 of file Counts.h.

◆ acceptCount()

int xrpl::peer_finder::Counts::acceptCount ( ) const

nodiscard

Returns the number of accepted connections that haven't handshaked.

Definition at line 138 of file Counts.h.

◆ connectCount()

int xrpl::peer_finder::Counts::connectCount ( ) const

nodiscard

Returns the number of connection attempts currently active.

Definition at line 147 of file Counts.h.

◆ closingCount()

int xrpl::peer_finder::Counts::closingCount ( ) const

nodiscard

Returns the number of connections that are gracefully closing.

Definition at line 156 of file Counts.h.

◆ inMax()

int xrpl::peer_finder::Counts::inMax ( ) const

nodiscard

Returns the total number of inbound slots.

Definition at line 165 of file Counts.h.

◆ inboundActive()

int xrpl::peer_finder::Counts::inboundActive ( ) const

nodiscard

Returns the number of inbound peers assigned an open slot.

Definition at line 174 of file Counts.h.

◆ totalActive()

int xrpl::peer_finder::Counts::totalActive ( ) const

nodiscard

Returns the total number of active peers excluding fixed peers.

Definition at line 183 of file Counts.h.

◆ inboundSlotsFree()

int xrpl::peer_finder::Counts::inboundSlotsFree ( ) const

nodiscard

Returns the number of unused inbound slots.

Fixed peers do not deduct from inbound slots or count towards totals.

Definition at line 193 of file Counts.h.

◆ outboundSlotsFree()

int xrpl::peer_finder::Counts::outboundSlotsFree ( ) const

nodiscard

Returns the number of unused outbound slots.

Fixed peers do not deduct from outbound slots or count towards totals.

Definition at line 205 of file Counts.h.

◆ isConnectedToNetwork()

bool xrpl::peer_finder::Counts::isConnectedToNetwork ( ) const

nodiscard

Returns true if the slot logic considers us "connected" to the network.

Definition at line 218 of file Counts.h.

◆ onWrite()

void xrpl::peer_finder::Counts::onWrite ( beast::PropertyStream::Map & map ) const

Output statistics.

Definition at line 233 of file Counts.h.

◆ stateString()

std::string xrpl::peer_finder::Counts::stateString ( ) const

nodiscard

Records the state for diagnostics.

Definition at line 249 of file Counts.h.

◆ adjustCounter()

template<typename T>

void xrpl::peer_finder::Counts::adjustCounter	(	T &	counter,
		CountAdjustment	dir )

staticprivate

Increments or decrements a counter based on the adjustment direction.

Definition at line 264 of file Counts.h.

◆ adjust()

void xrpl::peer_finder::Counts::adjust	(	Slot const &	s,
		CountAdjustment const	dir )

private

Definition at line 286 of file Counts.h.

Member Data Documentation

◆ attempts_

int xrpl::peer_finder::Counts::attempts_ {0}

private

Outbound connection attempts.

Definition at line 344 of file Counts.h.

◆ active_

std::size_t xrpl::peer_finder::Counts::active_ {0}

private

Active connections, including fixed and reserved.

Definition at line 349 of file Counts.h.

◆ inMax_

std::size_t xrpl::peer_finder::Counts::inMax_ {0}

private

Total number of inbound slots.

Definition at line 354 of file Counts.h.

◆ inActive_

std::size_t xrpl::peer_finder::Counts::inActive_ {0}

private

Number of inbound slots assigned to active peers.

Definition at line 359 of file Counts.h.

◆ outMax_

std::size_t xrpl::peer_finder::Counts::outMax_ {0}

private

Maximum desired outbound slots.

Definition at line 364 of file Counts.h.

◆ outActive_

std::size_t xrpl::peer_finder::Counts::outActive_ {0}

private

Active outbound slots.

Definition at line 369 of file Counts.h.

◆ fixed_

std::size_t xrpl::peer_finder::Counts::fixed_ {0}

private

Fixed connections.

Definition at line 374 of file Counts.h.

◆ fixedActive_

std::size_t xrpl::peer_finder::Counts::fixedActive_ {0}

private

Active fixed connections.

Definition at line 379 of file Counts.h.

◆ reserved_

std::size_t xrpl::peer_finder::Counts::reserved_ {0}

private

Reserved connections.

Definition at line 384 of file Counts.h.

◆ acceptCount_

int xrpl::peer_finder::Counts::acceptCount_ {0}

private

Definition at line 388 of file Counts.h.

◆ closingCount_

int xrpl::peer_finder::Counts::closingCount_ {0}

private

Definition at line 391 of file Counts.h.
