Implementation class for PerfLog. More...

#include <PerfLogImp.h>

Inheritance diagram for xrpl::perf::PerfLogImp:

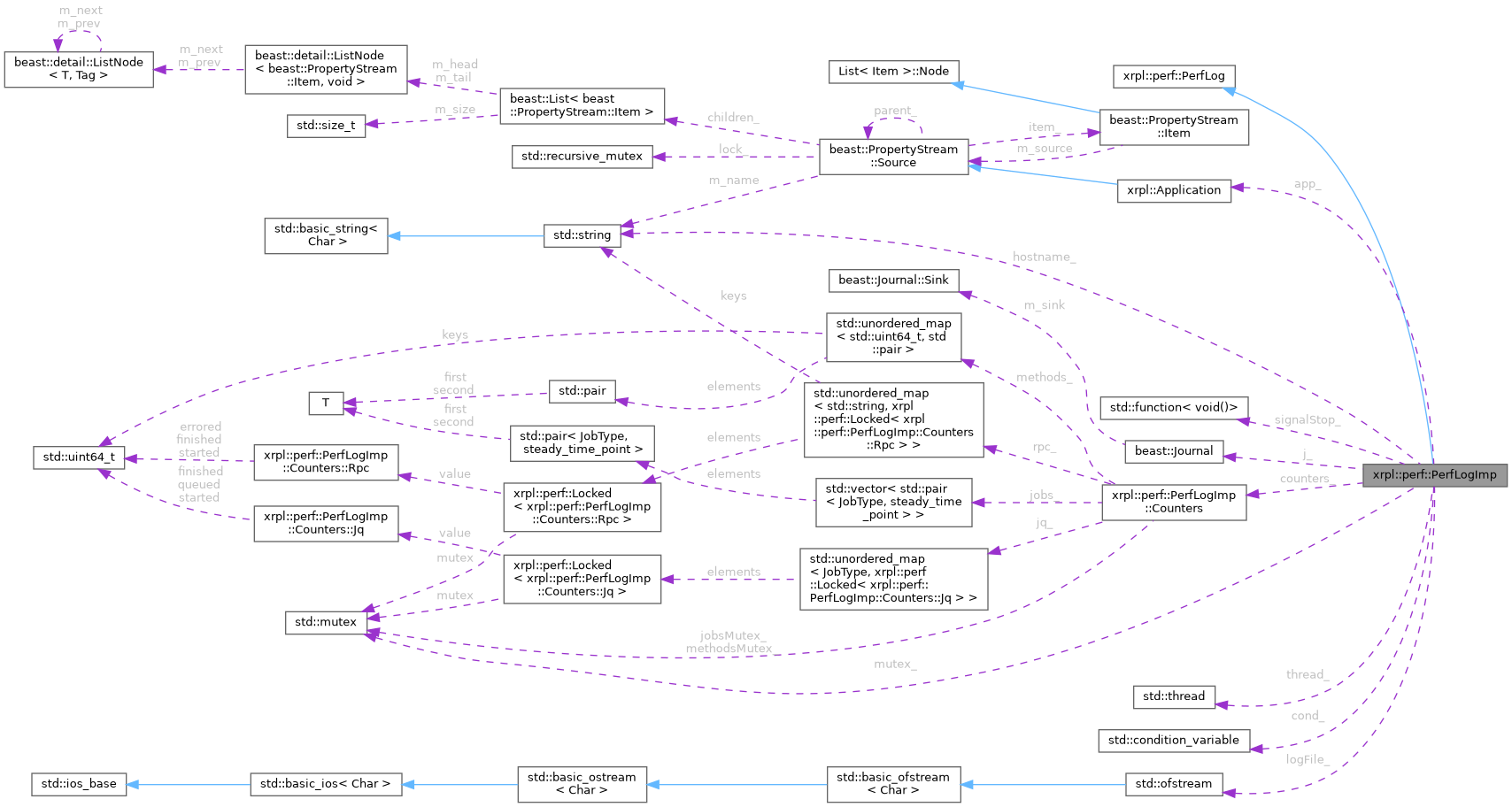

Collaboration diagram for xrpl::perf::PerfLogImp:

[legend]

Classes
struct	Counters
	Track performance counters and currently executing tasks. More...

Public Types
using	SteadyClock = std::chrono::steady_clock
using	SystemClock = std::chrono::system_clock
using	SteadyTimePoint = std::chrono::time_point<SteadyClock>
using	SystemTimePoint = std::chrono::time_point<SystemClock>
using	Seconds = std::chrono::seconds
using	Milliseconds = std::chrono::milliseconds
using	Microseconds = std::chrono::microseconds

Public Member Functions
	PerfLogImp (Setup setup, Application &app, std::span< NullTerminatedView const > methodNames, beast::Journal journal, std::function< void()> &&signalStop)
	~PerfLogImp () override
void	rpcStart (std::string_view method, std::uint64_t const requestId) override
	Log start of RPC call.
void	rpcFinish (std::string_view method, std::uint64_t const requestId) override
	Log successful finish of RPC call.
void	rpcError (std::string_view method, std::uint64_t const requestId) override
	Log errored RPC call.
void	jobQueue (JobType const type) override
	Log queued job.
void	jobStart (JobType const type, Microseconds dur, SteadyTimePoint startTime, int instance) override
	Log job executing.
void	jobFinish (JobType const type, Microseconds dur, int instance) override
	Log job finishing.
json::Value	countersJson () const override
	Render performance counters in Json.
json::Value	currentJson () const override
	Render currently executing jobs and RPC calls and durations in Json.
void	resizeJobs (int const resize) override
	Ensure enough room to store each currently executing job.
void	rotate () override
	Rotate perf log file.
void	start () override
void	stop () override

Private Member Functions
void	openLog ()
void	run ()
void	report ()
void	rpcEnd (std::string_view method, std::uint64_t const requestId, bool finish)

Private Attributes
Setup const	setup_
Application &	app_
beast::Journal const	j_
std::function< void()> const	signalStop_
Counters	counters_
std::ofstream	logFile_
std::thread	thread_
std::mutex	mutex_
std::condition_variable	cond_
SystemTimePoint	lastLog_
std::string const	hostname_ {boost::asio::ip::host_name()}
bool	stop_ {false}
bool	rotate_ {false}

Detailed Description

Implementation class for PerfLog.

Definition at line 54 of file PerfLogImp.h.

Member Typedef Documentation

◆ SteadyClock

using xrpl::perf::PerfLog::SteadyClock = std::chrono::steady_clock

inherited

Definition at line 35 of file PerfLog.h.

◆ SystemClock

using xrpl::perf::PerfLog::SystemClock = std::chrono::system_clock

inherited

Definition at line 36 of file PerfLog.h.

◆ SteadyTimePoint

using xrpl::perf::PerfLog::SteadyTimePoint = std::chrono::time_point<SteadyClock>

inherited

Definition at line 37 of file PerfLog.h.

◆ SystemTimePoint

using xrpl::perf::PerfLog::SystemTimePoint = std::chrono::time_point<SystemClock>

inherited

Definition at line 38 of file PerfLog.h.

◆ Seconds

using xrpl::perf::PerfLog::Seconds = std::chrono::seconds

inherited

Definition at line 39 of file PerfLog.h.

◆ Milliseconds

using xrpl::perf::PerfLog::Milliseconds = std::chrono::milliseconds

inherited

Definition at line 40 of file PerfLog.h.

◆ Microseconds

using xrpl::perf::PerfLog::Microseconds = std::chrono::microseconds

inherited

Definition at line 41 of file PerfLog.h.

Constructor & Destructor Documentation

◆ PerfLogImp()

xrpl::perf::PerfLogImp::PerfLogImp	(	Setup	setup,
		Application &	app,
		std::span< NullTerminatedView const >	methodNames,
		beast::Journal	journal,
		std::function< void()> &&	signalStop )

Parameters

methodNames The RPC methods to count, one counter per name. The names must outlive this object, which holds views of them. Passed in rather than looked up here so that this layer needs to know nothing about the RPC dispatch table.

Definition at line 317 of file PerfLogImp.cpp.

◆ ~PerfLogImp()

xrpl::perf::PerfLogImp::~PerfLogImp ( )

override

Definition at line 332 of file PerfLogImp.cpp.

Member Function Documentation

◆ openLog()

void xrpl::perf::PerfLogImp::openLog ( )

private

Definition at line 231 of file PerfLogImp.cpp.

◆ run()

void xrpl::perf::PerfLogImp::run ( )

private

Definition at line 264 of file PerfLogImp.cpp.

◆ report()

void xrpl::perf::PerfLogImp::report ( )

private

Definition at line 288 of file PerfLogImp.cpp.

◆ rpcEnd()

void xrpl::perf::PerfLogImp::rpcEnd	(	std::string_view	method,
		std::uint64_t const	requestId,
		bool	finish )

private

Definition at line 359 of file PerfLogImp.cpp.

◆ rpcStart()

void xrpl::perf::PerfLogImp::rpcStart	(	std::string_view	method,
		std::uint64_t const	requestId )

overridevirtual

Log start of RPC call.

Parameters

method	RPC command
requestId	Unique identifier to track command

Implements xrpl::perf::PerfLog.

Definition at line 338 of file PerfLogImp.cpp.

◆ rpcFinish()

void xrpl::perf::PerfLogImp::rpcFinish	(	std::string_view	method,
		std::uint64_t const	requestId )

overridevirtual

Log successful finish of RPC call.

Parameters

method	RPC command
requestId	Unique identifier to track command

Implements xrpl::perf::PerfLog.

Definition at line 165 of file PerfLogImp.h.

◆ rpcError()

void xrpl::perf::PerfLogImp::rpcError	(	std::string_view	method,
		std::uint64_t const	requestId )

overridevirtual

Log errored RPC call.

Parameters

method	RPC command
requestId	Unique identifier to track command

Implements xrpl::perf::PerfLog.

Definition at line 171 of file PerfLogImp.h.

◆ jobQueue()

void xrpl::perf::PerfLogImp::jobQueue ( JobType const type )

overridevirtual

Log queued job.

Parameters

type Job type

Implements xrpl::perf::PerfLog.

Definition at line 399 of file PerfLogImp.cpp.

◆ jobStart()

void xrpl::perf::PerfLogImp::jobStart	(	JobType const	type,
		Microseconds	dur,
		SteadyTimePoint	startTime,
		int	instance )

overridevirtual

Log job executing.

Parameters

type	Job type
dur	Duration enqueued in microseconds
startTime	Time that execution began
instance	JobQueue worker thread instance

Implements xrpl::perf::PerfLog.

Definition at line 414 of file PerfLogImp.cpp.

◆ jobFinish()

void xrpl::perf::PerfLogImp::jobFinish	(	JobType const	type,
		Microseconds	dur,
		int	instance )

overridevirtual

Log job finishing.

Parameters

type	Job type
dur	Duration running in microseconds
instance	Jobqueue worker thread instance

Implements xrpl::perf::PerfLog.

Definition at line 436 of file PerfLogImp.cpp.

◆ countersJson()

json::Value xrpl::perf::PerfLogImp::countersJson ( ) const

overridevirtual

Render performance counters in Json.

Returns: Counters Json object

Implements xrpl::perf::PerfLog.

Definition at line 185 of file PerfLogImp.h.

◆ currentJson()

json::Value xrpl::perf::PerfLogImp::currentJson ( ) const

overridevirtual

Render currently executing jobs and RPC calls and durations in Json.

Returns: Current executing jobs and RPC calls and durations

Implements xrpl::perf::PerfLog.

Definition at line 191 of file PerfLogImp.h.

◆ resizeJobs()

void xrpl::perf::PerfLogImp::resizeJobs ( int const resize )

overridevirtual

Ensure enough room to store each currently executing job.

Parameters

resize Number of JobQueue worker threads

Implements xrpl::perf::PerfLog.

Definition at line 458 of file PerfLogImp.cpp.

◆ rotate()

void xrpl::perf::PerfLogImp::rotate ( )

overridevirtual

Rotate perf log file.

Implements xrpl::perf::PerfLog.

Definition at line 466 of file PerfLogImp.cpp.

◆ start()

void xrpl::perf::PerfLogImp::start ( )

overridevirtual

Reimplemented from xrpl::perf::PerfLog.

Definition at line 477 of file PerfLogImp.cpp.

◆ stop()

void xrpl::perf::PerfLogImp::stop ( )

overridevirtual

Reimplemented from xrpl::perf::PerfLog.

Definition at line 484 of file PerfLogImp.cpp.

Member Data Documentation

◆ setup_

Setup const xrpl::perf::PerfLogImp::setup_

private

Definition at line 122 of file PerfLogImp.h.

◆ app_

Application& xrpl::perf::PerfLogImp::app_

private

Definition at line 123 of file PerfLogImp.h.

◆ j_

beast::Journal const xrpl::perf::PerfLogImp::j_

private

Definition at line 124 of file PerfLogImp.h.

◆ signalStop_

std::function<void()> const xrpl::perf::PerfLogImp::signalStop_

private

Definition at line 125 of file PerfLogImp.h.

◆ counters_

Counters xrpl::perf::PerfLogImp::counters_

private

Definition at line 126 of file PerfLogImp.h.

◆ logFile_

std::ofstream xrpl::perf::PerfLogImp::logFile_

private

Definition at line 127 of file PerfLogImp.h.

◆ thread_

std::thread xrpl::perf::PerfLogImp::thread_

private

Definition at line 128 of file PerfLogImp.h.

◆ mutex_

std::mutex xrpl::perf::PerfLogImp::mutex_

private

Definition at line 129 of file PerfLogImp.h.

◆ cond_

std::condition_variable xrpl::perf::PerfLogImp::cond_

private

Definition at line 130 of file PerfLogImp.h.

◆ lastLog_

SystemTimePoint xrpl::perf::PerfLogImp::lastLog_

private

Definition at line 131 of file PerfLogImp.h.

◆ hostname_

std::string const xrpl::perf::PerfLogImp::hostname_ {boost::asio::ip::host_name()}

private

Definition at line 132 of file PerfLogImp.h.

◆ stop_

bool xrpl::perf::PerfLogImp::stop_ {false}

private

Definition at line 133 of file PerfLogImp.h.

◆ rotate_

bool xrpl::perf::PerfLogImp::rotate_ {false}

private

Definition at line 134 of file PerfLogImp.h.
