A real PeerImp that captures the messages it would have sent. More...

#include <CapturePeer.h>

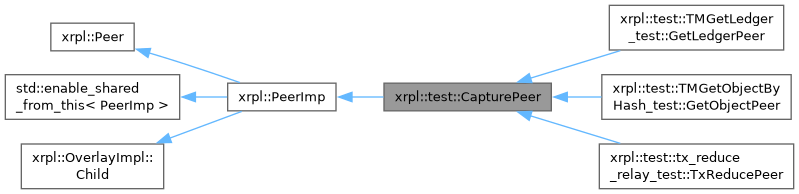

Inheritance diagram for xrpl::test::CapturePeer:

[legend]

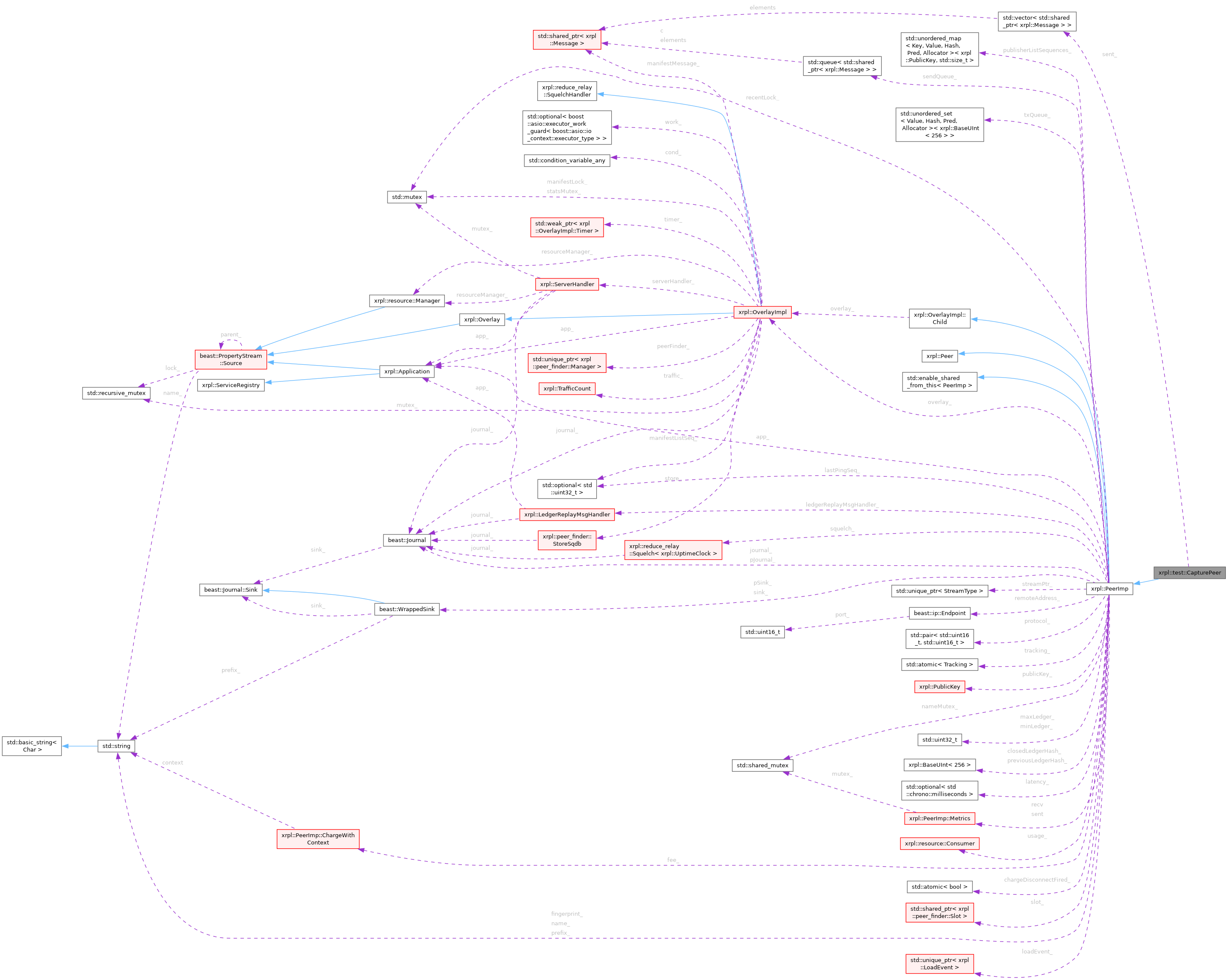

Collaboration diagram for xrpl::test::CapturePeer:

[legend]

Public Types
using	MiddleType = boost::beast::tcp_stream
using	StreamType = boost::beast::ssl_stream<MiddleType>
using	SocketType = boost::asio::ip::tcp::socket
enum class	Tracking { Diverged , Unknown , Converged }
	Whether the peer's view of the ledger converges or diverges from ours. More...
using	Ptr = std::shared_ptr<Peer>
using	ID = std::uint32_t
	Uniquely identifies a peer.

Public Member Functions
	CapturePeer (Application &app, Peer::ID id, std::shared_ptr< peer_finder::Slot > const &slot, HttpRequestType request, PublicKey const &publicKey, ProtocolVersion protocol, resource::Consumer consumer, std::unique_ptr< StreamType > streamPtr, OverlayImpl &overlay)
	Takes PeerImp's two rvalue-reference parameters by value instead, so a derived double can inherit this constructor without a never-moved-from warning.
	~CapturePeer () override=default
void	run () override
	Does nothing, so the peer stays registered.
void	send (std::shared_ptr< Message > const &m) override
	Captures the message instead of writing it, so replies are observable.
std::vector< std::shared_ptr< Message > > const &	sent () const
std::shared_ptr< Message >	lastSent () const
resource::Charge	feeCharge () const
	Reads the accumulated charge without draining it through charge().
beast::Journal const &	pJournal () const
std::shared_ptr< peer_finder::Slot > const &	slot ()
void	stop () override
void	sendTxQueue () override
	Send aggregated transactions' hashes.
void	addTxQueue (UInt256 const &hash) override
	Add transaction's hash to the transactions' hashes queue.
void	removeTxQueue (UInt256 const &hash) override
	Remove transaction's hash from the transactions' hashes queue.
template<class FwdIt> requires ( std::is_same_v< // typename std::iterator_traits<FwdIt>::value_type, peer_finder::Endpoint>)
void	sendEndpoints (FwdIt first, FwdIt last)
	Send a set of PeerFinder endpoints as a protocol message.
beast::ip::Endpoint	getRemoteAddress () const override
void	charge (resource::Charge const &fee, std::string const &context) override
	Adjust this peer's load balance based on the type of load imposed.
Peer::ID	id () const override
bool	crawl () const
	Returns true if this connection will publicly share its IP address.
bool	cluster () const override
	Returns true if this connection is a member of the cluster.
void	checkTracking (std::uint32_t validationSeq)
	Check if the peer is tracking.
void	checkTracking (std::uint32_t seq1, std::uint32_t seq2)
PublicKey const &	getNodePublic () const override
std::string	getVersion () const
	Return the version of xrpld that the peer is running, if reported.
ClockType::duration	uptime () const
json::Value	json () override
bool	supportsFeature (ProtocolFeature f) const override
std::optional< std::size_t >	publisherListSequence (PublicKey const &pubKey) const override
void	setPublisherListSequence (PublicKey const &pubKey, std::size_t const seq) override
UInt256	getClosedLedgerHash () const override
bool	hasLedger (UInt256 const &hash, std::uint32_t seq) const override
void	ledgerRange (std::uint32_t &minSeq, std::uint32_t &maxSeq) const override
bool	hasTxSet (UInt256 const &hash) const override
void	cycleStatus () override
bool	hasRange (std::uint32_t uMin, std::uint32_t uMax) override
int	getScore (bool haveItem) const override
bool	isHighLatency () const override
void	fail (std::string const &reason)
bool	compressionEnabled () const override
std::size_t	maxManifestsMessageSize () const
	Largest TMManifests message this node accepts, in bytes.
bool	txReduceRelayEnabled () const override
void	onMessageUnknown (std::uint16_t type)
void	onMessageBegin (std::uint16_t type, std::shared_ptr<::google::protobuf::Message > const &m, std::size_t size, std::size_t uncompressedSize, bool isCompressed)
void	onMessageEnd (std::uint16_t type, std::shared_ptr<::google::protobuf::Message > const &m)
void	onMessage (std::shared_ptr< protocol::TMManifests > const &m)
void	onMessage (std::shared_ptr< protocol::TMPing > const &m)
void	onMessage (std::shared_ptr< protocol::TMCluster > const &m)
void	onMessage (std::shared_ptr< protocol::TMEndpoints > const &m)
void	onMessage (std::shared_ptr< protocol::TMTransaction > const &m)
void	onMessage (std::shared_ptr< protocol::TMGetLedger > const &m)
void	onMessage (std::shared_ptr< protocol::TMLedgerData > const &m)
void	onMessage (std::shared_ptr< protocol::TMProposeSet > const &m)
void	onMessage (std::shared_ptr< protocol::TMStatusChange > const &m)
void	onMessage (std::shared_ptr< protocol::TMHaveTransactionSet > const &m)
void	onMessage (std::shared_ptr< protocol::TMValidatorListCollection > const &m)
void	onMessage (std::shared_ptr< protocol::TMValidation > const &m)
void	onMessage (std::shared_ptr< protocol::TMGetObjectByHash > const &m)
void	onMessage (std::shared_ptr< protocol::TMHaveTransactions > const &m)
void	onMessage (std::shared_ptr< protocol::TMTransactions > const &m)
void	onMessage (std::shared_ptr< protocol::TMSquelch > const &m)
void	onMessage (std::shared_ptr< protocol::TMProofPathRequest > const &m)
void	onMessage (std::shared_ptr< protocol::TMProofPathResponse > const &m)
void	onMessage (std::shared_ptr< protocol::TMReplayDeltaRequest > const &m)
void	onMessage (std::shared_ptr< protocol::TMReplayDeltaResponse > const &m)
T	shared_from_this (T... args)
T	weak_from_this (T... args)

Protected Member Functions
void	processLedgerRequest (std::shared_ptr< protocol::TMGetLedger > const &m, std::vector< SHAMapNodeID > nodeIDs)
void	processGetObjectByHash (std::shared_ptr< protocol::TMGetObjectByHash > const &m)
	Process a generic-query TMGetObjectByHash message.
resource::Charge	currentFeeCharge () const
	Read-only accessor for the accumulated peer-message charge.

Static Protected Member Functions
static resource::Charge	computeGetObjectByHashFee (int const requested, int const found)
	Compute the per-message resource charge for a TMGetObjectByHash request based on how much work was actually performed.

Private Types
using	ClockType = std::chrono::steady_clock
using	ErrorCode = boost::system::error_code
using	AddressType = boost::asio::ip::address
using	EndpointType = boost::asio::ip::tcp::endpoint
using	WaitableTimer = boost::asio::basic_waitable_timer<std::chrono::steady_clock>
using	Compressed = compression::Compressed

Private Member Functions
void	fail (std::string const &name, ErrorCode ec)
void	close ()
void	gracefulClose ()
void	setTimer ()
void	cancelTimer () noexcept
void	onTimer (boost::system::error_code const &ec)
void	onShutdown (ErrorCode ec)
void	doAccept ()
std::string	name () const
std::string	domain () const
void	doProtocolStart ()
void	onReadMessage (ErrorCode ec, std::size_t bytesTransferred)
void	onWriteMessage (ErrorCode ec, std::size_t bytesTransferred)
void	handleTransaction (std::shared_ptr< protocol::TMTransaction > const &m, bool eraseTxQueue, bool batch)
	Called from onMessage(TMTransaction(s)).
void	handleHaveTransactions (std::shared_ptr< protocol::TMHaveTransactions > const &m)
	Handle protocol message with hashes of transactions that have not been relayed by an upstream node down to its peers - request transactions, which have not been relayed to this peer.
std::string const &	fingerprint () const override
std::string const &	prefix () const
void	addLedger (UInt256 const &hash, std::scoped_lock< std::mutex > const &lockedRecentLock)
void	doFetchPack (std::shared_ptr< protocol::TMGetObjectByHash > const &packet)
void	onValidatorListMessage (std::string const &messageType, std::string const &manifest, std::uint32_t version, std::vector< ValidatorBlobInfo > const &blobs)
void	doTransactions (std::shared_ptr< protocol::TMGetObjectByHash > const &packet)
	Process peer's request to send missing transactions.
void	checkTransaction (HashRouterFlags flags, bool checkSignature, std::shared_ptr< STTx const > const &stx, bool batch)
void	checkPropose (bool isTrusted, std::shared_ptr< protocol::TMProposeSet > const &packet, RCLCxPeerPos peerPos)
void	checkValidation (std::shared_ptr< STValidation > const &val, UInt256 const &key, std::shared_ptr< protocol::TMValidation > const &packet)
void	sendLedgerBase (std::shared_ptr< Ledger const > const &ledger, protocol::TMLedgerData &ledgerData)
std::shared_ptr< Ledger const >	getLedger (std::shared_ptr< protocol::TMGetLedger > const &m)
std::shared_ptr< SHAMap const >	getTxSet (std::shared_ptr< protocol::TMGetLedger > const &m) const

Static Private Member Functions
static std::string	makePrefix (std::string const &fingerprint)

Private Attributes
std::vector< std::shared_ptr< Message > >	sent_
Application &	app_
ID const	id_
std::string	fingerprint_
std::string	prefix_
beast::WrappedSink	sink_
beast::WrappedSink	pSink_
beast::Journal const	journal_
beast::Journal const	pJournal_
std::unique_ptr< StreamType >	streamPtr_
SocketType &	socket_
StreamType &	stream_
boost::asio::strand< boost::asio::executor >	strand_
WaitableTimer	timer_
beast::ip::Endpoint const	remoteAddress_
OverlayImpl &	overlay_
bool const	inbound_
ProtocolVersion	protocol_
std::atomic< Tracking >	tracking_
ClockType::time_point	trackingTime_
bool	detaching_ = false
PublicKey const	publicKey_
std::string	name_
std::shared_mutex	nameMutex_
LedgerIndex	minLedger_ = 0
LedgerIndex	maxLedger_ = 0
UInt256	closedLedgerHash_
UInt256	previousLedgerHash_
boost::circular_buffer< UInt256 >	recentLedgers_ {128}
boost::circular_buffer< UInt256 >	recentTxSets_ {128}
std::optional< std::chrono::milliseconds >	latency_
std::optional< std::uint32_t >	lastPingSeq_
ClockType::time_point	lastPingTime_
ClockType::time_point const	creationTime_
reduce_relay::Squelch< UptimeClock >	squelch_
std::mutex	recentLock_
protocol::TMStatusChange	lastStatus_
resource::Consumer	usage_
ChargeWithContext	fee_
std::atomic< bool >	chargeDisconnectFired_ {false}
std::shared_ptr< peer_finder::Slot > const	slot_
boost::beast::multi_buffer	readBuffer_
HttpRequestType	request_
HttpResponseType	response_
boost::beast::http::fields const &	headers_
std::queue< std::shared_ptr< Message > >	sendQueue_
bool	gracefulClose_ = false
int	largeSendq_ = 0
std::unique_ptr< LoadEvent >	loadEvent_
HashMap< PublicKey, std::size_t >	publisherListSequences_
Compressed	compressionEnabled_ = Compressed::Off
HashSet< UInt256 >	txQueue_
bool	txReduceRelayEnabled_ = false
bool	ledgerReplayEnabled_ = false
LedgerReplayMsgHandler	ledgerReplayMsgHandler_
struct {
Metrics sent
Metrics recv
}	metrics_

Detailed Description

A real PeerImp that captures the messages it would have sent.

Only send and run are overridden, so onMessage runs production code. Derive from this to reach a protected PeerImp member.

Definition at line 46 of file CapturePeer.h.

Member Typedef Documentation

◆ MiddleType

using xrpl::test::CapturePeer::MiddleType = boost::beast::tcp_stream

Definition at line 49 of file CapturePeer.h.

◆ StreamType

using xrpl::test::CapturePeer::StreamType = boost::beast::ssl_stream<MiddleType>

Definition at line 50 of file CapturePeer.h.

◆ SocketType

using xrpl::test::CapturePeer::SocketType = boost::asio::ip::tcp::socket

Definition at line 51 of file CapturePeer.h.

◆ ClockType

using xrpl::PeerImp::ClockType = std::chrono::steady_clock

privateinherited

Definition at line 75 of file PeerImp.h.

◆ ErrorCode

using xrpl::PeerImp::ErrorCode = boost::system::error_code

privateinherited

Definition at line 76 of file PeerImp.h.

◆ AddressType

using xrpl::PeerImp::AddressType = boost::asio::ip::address

privateinherited

Definition at line 80 of file PeerImp.h.

◆ EndpointType

using xrpl::PeerImp::EndpointType = boost::asio::ip::tcp::endpoint

privateinherited

Definition at line 81 of file PeerImp.h.

◆ WaitableTimer

using xrpl::PeerImp::WaitableTimer = boost::asio::basic_waitable_timer<std::chrono::steady_clock>

privateinherited

Definition at line 82 of file PeerImp.h.

◆ Compressed

using xrpl::PeerImp::Compressed = compression::Compressed

privateinherited

Definition at line 83 of file PeerImp.h.

◆ Ptr

using xrpl::Peer::Ptr = std::shared_ptr<Peer>

inherited

Definition at line 33 of file xrpld/overlay/Peer.h.

◆ ID

using xrpl::Peer::ID = std::uint32_t

inherited

Uniquely identifies a peer.

This can be stored in tables to find the peer later. Callers can discover if the peer is no longer connected and make adjustments as needed.

Definition at line 41 of file xrpld/overlay/Peer.h.

Member Enumeration Documentation

◆ Tracking

enum class xrpl::PeerImp::Tracking

stronginherited

Whether the peer's view of the ledger converges or diverges from ours.

Enumerator
Diverged
Unknown
Converged

Definition at line 72 of file PeerImp.h.

Constructor & Destructor Documentation

◆ CapturePeer()

xrpl::test::CapturePeer::CapturePeer	(	Application &	app,
		Peer::ID	id,
		std::shared_ptr< peer_finder::Slot > const &	slot,
		HttpRequestType	request,
		PublicKey const &	publicKey,
		ProtocolVersion	protocol,
		resource::Consumer	consumer,
		std::unique_ptr< StreamType >	streamPtr,
		OverlayImpl &	overlay )

Takes PeerImp's two rvalue-reference parameters by value instead, so a derived double can inherit this constructor without a never-moved-from warning.

Parameters

app	The application owning the peer.
id	The connection id, unique among the overlay's peers.
slot	The peer finder slot; must be seated.
request	The handshake request.
publicKey	The peer's node public key.
protocol	The negotiated protocol version.
consumer	The resource manager endpoint for the peer.
streamPtr	The connection's ssl stream.
overlay	The overlay to register with.

Definition at line 68 of file CapturePeer.h.

◆ ~CapturePeer()

xrpl::test::CapturePeer::~CapturePeer ( )

overridedefault

Member Function Documentation

◆ run()

void xrpl::test::CapturePeer::run ( )

overridevirtual

Does nothing, so the peer stays registered.

The real run() reaches PeerImp::doAccept, which fails on an unconnected socket and detaches.

Reimplemented from xrpl::PeerImp.

Definition at line 98 of file CapturePeer.h.

◆ send()

void xrpl::test::CapturePeer::send ( std::shared_ptr< Message > const & m )

overridevirtual

Captures the message instead of writing it, so replies are observable.

Implements xrpl::Peer.

Definition at line 106 of file CapturePeer.h.

◆ sent()

std::vector< std::shared_ptr< Message > > const & xrpl::test::CapturePeer::sent ( ) const

Returns: Every message sent to this peer, in order.

Definition at line 115 of file CapturePeer.h.

◆ lastSent()

std::shared_ptr< Message > xrpl::test::CapturePeer::lastSent ( ) const

Returns: The most recent message sent, or null if there was none.

Definition at line 124 of file CapturePeer.h.

◆ feeCharge()

resource::Charge xrpl::test::CapturePeer::feeCharge ( ) const

Reads the accumulated charge without draining it through charge().

Returns: The charge accumulated on the peer so far.

Definition at line 135 of file CapturePeer.h.

◆ pJournal()

beast::Journal const & xrpl::PeerImp::pJournal ( ) const

inherited

Definition at line 290 of file PeerImp.h.

◆ slot()

std::shared_ptr< peer_finder::Slot > const & xrpl::PeerImp::slot ( )

inherited

Definition at line 296 of file PeerImp.h.

◆ stop()

void xrpl::PeerImp::stop ( )

overridevirtualinherited

Implements xrpl::OverlayImpl::Child.

Definition at line 264 of file PeerImp.cpp.

◆ sendTxQueue()

void xrpl::PeerImp::sendTxQueue ( )

overridevirtualinherited

Send aggregated transactions' hashes.

Implements xrpl::Peer.

Definition at line 338 of file PeerImp.cpp.

◆ addTxQueue()

void xrpl::PeerImp::addTxQueue ( UInt256 const & hash )

overridevirtualinherited

Add transaction's hash to the transactions' hashes queue.

Parameters

hash	transaction's hash

Implements xrpl::Peer.

Reimplemented in xrpl::test::tx_reduce_relay_test::TxReducePeer.

Definition at line 354 of file PeerImp.cpp.

◆ removeTxQueue()

void xrpl::PeerImp::removeTxQueue ( UInt256 const & hash )

overridevirtualinherited

Remove transaction's hash from the transactions' hashes queue.

Parameters

hash	transaction's hash

Implements xrpl::Peer.

Definition at line 369 of file PeerImp.cpp.

◆ sendEndpoints()

template<class FwdIt>
requires ( std::is_same_v< // typename std::iterator_traits<FwdIt>::value_type, peer_finder::Endpoint>)

void xrpl::PeerImp::sendEndpoints	(	FwdIt	first,
		FwdIt	last )

inherited

Send a set of PeerFinder endpoints as a protocol message.

Definition at line 827 of file PeerImp.h.

◆ getRemoteAddress()

beast::ip::Endpoint xrpl::PeerImp::getRemoteAddress ( ) const

overridevirtualinherited

Implements xrpl::Peer.

Definition at line 348 of file PeerImp.h.

◆ charge()

void xrpl::PeerImp::charge	(	resource::Charge const &	fee,
		std::string const &	context )

overridevirtualinherited

Adjust this peer's load balance based on the type of load imposed.

Implements xrpl::Peer.

Definition at line 378 of file PeerImp.cpp.

◆ id()

Peer::ID xrpl::PeerImp::id ( ) const

overridevirtualinherited

Implements xrpl::Peer.

Definition at line 361 of file PeerImp.h.

◆ crawl()

bool xrpl::PeerImp::crawl ( ) const

inherited

Returns true if this connection will publicly share its IP address.

Definition at line 404 of file PeerImp.cpp.

◆ cluster()

bool xrpl::PeerImp::cluster ( ) const

overridevirtualinherited

Returns true if this connection is a member of the cluster.

Implements xrpl::Peer.

Definition at line 413 of file PeerImp.cpp.

◆ checkTracking() [1/2]

void xrpl::PeerImp::checkTracking ( std::uint32_t validationSeq )

inherited

Check if the peer is tracking.

Parameters

validationSeq The ledger sequence of a recently-validated ledger

Definition at line 2177 of file PeerImp.cpp.

◆ checkTracking() [2/2]

void xrpl::PeerImp::checkTracking	(	std::uint32_t	seq1,
		std::uint32_t	seq2 )

inherited

Definition at line 2196 of file PeerImp.cpp.

◆ getNodePublic()

PublicKey const & xrpl::PeerImp::getNodePublic ( ) const

overridevirtualinherited

Implements xrpl::Peer.

Definition at line 386 of file PeerImp.h.

◆ getVersion()

std::string xrpl::PeerImp::getVersion ( ) const

inherited

Return the version of xrpld that the peer is running, if reported.

Definition at line 419 of file PeerImp.cpp.

◆ uptime()

ClockType::duration xrpl::PeerImp::uptime ( ) const

inherited

Definition at line 399 of file PeerImp.h.

◆ json()

json::Value xrpl::PeerImp::json ( )

overridevirtualinherited

Implements xrpl::Peer.

Definition at line 427 of file PeerImp.cpp.

◆ supportsFeature()

bool xrpl::PeerImp::supportsFeature ( ProtocolFeature f ) const

overridevirtualinherited

Implements xrpl::Peer.

Definition at line 541 of file PeerImp.cpp.

◆ publisherListSequence()

std::optional< std::size_t > xrpl::PeerImp::publisherListSequence ( PublicKey const & pubKey ) const

overridevirtualinherited

Implements xrpl::Peer.

Definition at line 411 of file PeerImp.h.

◆ setPublisherListSequence()

void xrpl::PeerImp::setPublisherListSequence	(	PublicKey const &	pubKey,
		std::size_t const	seq )

overridevirtualinherited

Implements xrpl::Peer.

Definition at line 422 of file PeerImp.h.

◆ getClosedLedgerHash()

UInt256 xrpl::PeerImp::getClosedLedgerHash ( ) const

overridevirtualinherited

Implements xrpl::Peer.

Definition at line 434 of file PeerImp.h.

◆ hasLedger()

bool xrpl::PeerImp::hasLedger	(	UInt256 const &	hash,
		std::uint32_t	seq ) const

overridevirtualinherited

Implements xrpl::Peer.

Definition at line 556 of file PeerImp.cpp.

◆ ledgerRange()

void xrpl::PeerImp::ledgerRange	(	std::uint32_t &	minSeq,
		std::uint32_t &	maxSeq ) const

overridevirtualinherited

Implements xrpl::Peer.

Definition at line 570 of file PeerImp.cpp.

◆ hasTxSet()

bool xrpl::PeerImp::hasTxSet ( UInt256 const & hash ) const

overridevirtualinherited

Implements xrpl::Peer.

Definition at line 579 of file PeerImp.cpp.

◆ cycleStatus()

void xrpl::PeerImp::cycleStatus ( )

overridevirtualinherited

Implements xrpl::Peer.

Definition at line 586 of file PeerImp.cpp.

◆ hasRange()

bool xrpl::PeerImp::hasRange	(	std::uint32_t	uMin,
		std::uint32_t	uMax )

overridevirtualinherited

Implements xrpl::Peer.

Definition at line 596 of file PeerImp.cpp.

◆ getScore()

int xrpl::PeerImp::getScore ( bool haveItem ) const

overridevirtualinherited

Implements xrpl::Peer.

Definition at line 3699 of file PeerImp.cpp.

◆ isHighLatency()

bool xrpl::PeerImp::isHighLatency ( ) const

overridevirtualinherited

Implements xrpl::Peer.

Definition at line 3741 of file PeerImp.cpp.

◆ fail() [1/2]

void xrpl::PeerImp::fail ( std::string const & reason )

inherited

Definition at line 622 of file PeerImp.cpp.

◆ fail() [2/2]

void xrpl::PeerImp::fail	(	std::string const &	name,
		ErrorCode	ec )

privateinherited

Definition at line 635 of file PeerImp.cpp.

◆ compressionEnabled()

bool xrpl::PeerImp::compressionEnabled ( ) const

overridevirtualinherited

Implements xrpl::Peer.

Definition at line 466 of file PeerImp.h.

◆ maxManifestsMessageSize()

std::size_t xrpl::PeerImp::maxManifestsMessageSize ( ) const

nodiscardinherited

Largest TMManifests message this node accepts, in bytes.

Read by invokeProtocolMessage to drop oversized messages before parsing. Not part of the Peer interface: the message handler is a template parameter, so only PeerImp needs to provide this.

Definition at line 479 of file PeerImp.h.

◆ txReduceRelayEnabled()

bool xrpl::PeerImp::txReduceRelayEnabled ( ) const

overridevirtualinherited

Implements xrpl::Peer.

Definition at line 487 of file PeerImp.h.

◆ close()

void xrpl::PeerImp::close ( )

privateinherited

Definition at line 605 of file PeerImp.cpp.

◆ gracefulClose()

void xrpl::PeerImp::gracefulClose ( )

privateinherited

Definition at line 647 of file PeerImp.cpp.

◆ setTimer()

void xrpl::PeerImp::setTimer ( )

privateinherited

Definition at line 662 of file PeerImp.cpp.

◆ cancelTimer()

void xrpl::PeerImp::cancelTimer ( )

privatenoexceptinherited

Definition at line 679 of file PeerImp.cpp.

◆ makePrefix()

std::string xrpl::PeerImp::makePrefix ( std::string const & fingerprint )

staticprivateinherited

Definition at line 694 of file PeerImp.cpp.

◆ onTimer()

void xrpl::PeerImp::onTimer ( boost::system::error_code const & ec )

privateinherited

Definition at line 702 of file PeerImp.cpp.

◆ onShutdown()

void xrpl::PeerImp::onShutdown ( ErrorCode ec )

privateinherited

Definition at line 762 of file PeerImp.cpp.

◆ doAccept()

void xrpl::PeerImp::doAccept ( )

privateinherited

Definition at line 788 of file PeerImp.cpp.

◆ name()

std::string xrpl::PeerImp::name ( ) const

privateinherited

Definition at line 862 of file PeerImp.cpp.

◆ domain()

std::string xrpl::PeerImp::domain ( ) const

privateinherited

Definition at line 869 of file PeerImp.cpp.

◆ doProtocolStart()

void xrpl::PeerImp::doProtocolStart ( )

privateinherited

Definition at line 879 of file PeerImp.cpp.

◆ onReadMessage()

void xrpl::PeerImp::onReadMessage	(	ErrorCode	ec,
		std::size_t	bytesTransferred )

privateinherited

Definition at line 917 of file PeerImp.cpp.

◆ onWriteMessage()

void xrpl::PeerImp::onWriteMessage	(	ErrorCode	ec,
		std::size_t	bytesTransferred )

privateinherited

Definition at line 989 of file PeerImp.cpp.

◆ handleTransaction()

void xrpl::PeerImp::handleTransaction	(	std::shared_ptr< protocol::TMTransaction > const &	m,
		bool	eraseTxQueue,
		bool	batch )

privateinherited

Called from onMessage(TMTransaction(s)).

Parameters

m	Transaction protocol message
eraseTxQueue	is true when called from onMessage(TMTransaction) and is false when called from onMessage(TMTransactions). If true then the transaction hash is erased from txQueue_. Don't need to erase from the queue when called from onMessage(TMTransactions) because this message is a response to the missing transactions request and the queue would not have any of these transactions.
batch	is false when called from onMessage(TMTransaction) and is true when called from onMessage(TMTransactions). If true, then the transaction is part of a batch, and should not be charged an extra fee.

Definition at line 1293 of file PeerImp.cpp.

◆ handleHaveTransactions()

void xrpl::PeerImp::handleHaveTransactions ( std::shared_ptr< protocol::TMHaveTransactions > const & m )

privateinherited

Handle protocol message with hashes of transactions that have not been relayed by an upstream node down to its peers - request transactions, which have not been relayed to this peer.

Parameters

m	protocol message with transactions' hashes

Definition at line 2811 of file PeerImp.cpp.

◆ fingerprint()

std::string const & xrpl::PeerImp::fingerprint ( ) const

overrideprivatevirtualinherited

Implements xrpl::Peer.

Definition at line 573 of file PeerImp.h.

◆ prefix()

std::string const & xrpl::PeerImp::prefix ( ) const

privateinherited

Definition at line 579 of file PeerImp.h.

◆ onMessageUnknown()

void xrpl::PeerImp::onMessageUnknown ( std::uint16_t type )

inherited

Definition at line 1041 of file PeerImp.cpp.

◆ onMessageBegin()

void xrpl::PeerImp::onMessageBegin	(	std::uint16_t	type,
		std::shared_ptr<::google::protobuf::Message > const &	m,
		std::size_t	size,
		std::size_t	uncompressedSize,
		bool	isCompressed )

inherited

Definition at line 1047 of file PeerImp.cpp.

◆ onMessageEnd()

void xrpl::PeerImp::onMessageEnd	(	std::uint16_t	type,
		std::shared_ptr<::google::protobuf::Message > const &	m )

inherited

Definition at line 1088 of file PeerImp.cpp.

◆ onMessage() [1/20]

void xrpl::PeerImp::onMessage ( std::shared_ptr< protocol::TMManifests > const & m )

inherited

Definition at line 1095 of file PeerImp.cpp.

◆ onMessage() [2/20]

void xrpl::PeerImp::onMessage ( std::shared_ptr< protocol::TMPing > const & m )

inherited

Definition at line 1117 of file PeerImp.cpp.

◆ onMessage() [3/20]

void xrpl::PeerImp::onMessage ( std::shared_ptr< protocol::TMCluster > const & m )

inherited

Definition at line 1161 of file PeerImp.cpp.

◆ onMessage() [4/20]

void xrpl::PeerImp::onMessage ( std::shared_ptr< protocol::TMEndpoints > const & m )

inherited

Definition at line 1230 of file PeerImp.cpp.

◆ onMessage() [5/20]

void xrpl::PeerImp::onMessage ( std::shared_ptr< protocol::TMTransaction > const & m )

inherited

Definition at line 1287 of file PeerImp.cpp.

◆ onMessage() [6/20]

void xrpl::PeerImp::onMessage ( std::shared_ptr< protocol::TMGetLedger > const & m )

inherited

Definition at line 1427 of file PeerImp.cpp.

◆ onMessage() [7/20]

void xrpl::PeerImp::onMessage ( std::shared_ptr< protocol::TMLedgerData > const & m )

inherited

Definition at line 1697 of file PeerImp.cpp.

◆ onMessage() [8/20]

void xrpl::PeerImp::onMessage ( std::shared_ptr< protocol::TMProposeSet > const & m )

inherited

Definition at line 1899 of file PeerImp.cpp.

◆ onMessage() [9/20]

void xrpl::PeerImp::onMessage ( std::shared_ptr< protocol::TMStatusChange > const & m )

inherited

Definition at line 2004 of file PeerImp.cpp.

◆ onMessage() [10/20]

void xrpl::PeerImp::onMessage ( std::shared_ptr< protocol::TMHaveTransactionSet > const & m )

inherited

Definition at line 2217 of file PeerImp.cpp.

◆ onMessage() [11/20]

void xrpl::PeerImp::onMessage ( std::shared_ptr< protocol::TMValidatorListCollection > const & m )

inherited

Definition at line 2438 of file PeerImp.cpp.

◆ onMessage() [12/20]

void xrpl::PeerImp::onMessage ( std::shared_ptr< protocol::TMValidation > const & m )

inherited

Definition at line 2463 of file PeerImp.cpp.

◆ onMessage() [13/20]

void xrpl::PeerImp::onMessage ( std::shared_ptr< protocol::TMGetObjectByHash > const & m )

inherited

Definition at line 2579 of file PeerImp.cpp.

◆ onMessage() [14/20]

void xrpl::PeerImp::onMessage ( std::shared_ptr< protocol::TMHaveTransactions > const & m )

inherited

Definition at line 2794 of file PeerImp.cpp.

◆ onMessage() [15/20]

void xrpl::PeerImp::onMessage ( std::shared_ptr< protocol::TMTransactions > const & m )

inherited

Definition at line 2857 of file PeerImp.cpp.

◆ onMessage() [16/20]

void xrpl::PeerImp::onMessage ( std::shared_ptr< protocol::TMSquelch > const & m )

inherited

Definition at line 2888 of file PeerImp.cpp.

◆ onMessage() [17/20]

void xrpl::PeerImp::onMessage ( std::shared_ptr< protocol::TMProofPathRequest > const & m )

inherited

Definition at line 1583 of file PeerImp.cpp.

◆ onMessage() [18/20]

void xrpl::PeerImp::onMessage ( std::shared_ptr< protocol::TMProofPathResponse > const & m )

inherited

Definition at line 1618 of file PeerImp.cpp.

◆ onMessage() [19/20]

void xrpl::PeerImp::onMessage ( std::shared_ptr< protocol::TMReplayDeltaRequest > const & m )

inherited

Definition at line 1640 of file PeerImp.cpp.

◆ onMessage() [20/20]

void xrpl::PeerImp::onMessage ( std::shared_ptr< protocol::TMReplayDeltaResponse > const & m )

inherited

Definition at line 1675 of file PeerImp.cpp.

◆ addLedger()

void xrpl::PeerImp::addLedger	(	UInt256 const &	hash,
		std::scoped_lock< std::mutex > const &	lockedRecentLock )

privateinherited

Definition at line 2931 of file PeerImp.cpp.

◆ doFetchPack()

void xrpl::PeerImp::doFetchPack ( std::shared_ptr< protocol::TMGetObjectByHash > const & packet )

privateinherited

Definition at line 2944 of file PeerImp.cpp.

◆ onValidatorListMessage()

void xrpl::PeerImp::onValidatorListMessage	(	std::string const &	messageType,
		std::string const &	manifest,
		std::uint32_t	version,
		std::vector< ValidatorBlobInfo > const &	blobs )

privateinherited

Definition at line 2242 of file PeerImp.cpp.

◆ doTransactions()

void xrpl::PeerImp::doTransactions ( std::shared_ptr< protocol::TMGetObjectByHash > const & packet )

privateinherited

Process peer's request to send missing transactions.

The request is sent in response to TMHaveTransactions.

Parameters

packet protocol message containing missing transactions' hashes.

Definition at line 2977 of file PeerImp.cpp.

◆ checkTransaction()

void xrpl::PeerImp::checkTransaction	(	HashRouterFlags	flags,
		bool	checkSignature,
		std::shared_ptr< STTx const > const &	stx,
		bool	batch )

privateinherited

Definition at line 3029 of file PeerImp.cpp.

◆ checkPropose()

void xrpl::PeerImp::checkPropose	(	bool	isTrusted,
		std::shared_ptr< protocol::TMProposeSet > const &	packet,
		RCLCxPeerPos	peerPos )

privateinherited

Definition at line 3174 of file PeerImp.cpp.

◆ checkValidation()

void xrpl::PeerImp::checkValidation	(	std::shared_ptr< STValidation > const &	val,
		UInt256 const &	key,
		std::shared_ptr< protocol::TMValidation > const &	packet )

privateinherited

Definition at line 3222 of file PeerImp.cpp.

◆ sendLedgerBase()

void xrpl::PeerImp::sendLedgerBase	(	std::shared_ptr< Ledger const > const &	ledger,
		protocol::TMLedgerData &	ledgerData )

privateinherited

Definition at line 3313 of file PeerImp.cpp.

◆ getLedger()

std::shared_ptr< Ledger const > xrpl::PeerImp::getLedger ( std::shared_ptr< protocol::TMGetLedger > const & m )

privateinherited

Definition at line 3350 of file PeerImp.cpp.

◆ getTxSet()

std::shared_ptr< SHAMap const > xrpl::PeerImp::getTxSet ( std::shared_ptr< protocol::TMGetLedger > const & m ) const

privateinherited

Definition at line 3434 of file PeerImp.cpp.

◆ processLedgerRequest()

void xrpl::PeerImp::processLedgerRequest	(	std::shared_ptr< protocol::TMGetLedger > const &	m,
		std::vector< SHAMapNodeID >	nodeIDs )

protectedinherited

Definition at line 3466 of file PeerImp.cpp.

◆ processGetObjectByHash()

void xrpl::PeerImp::processGetObjectByHash ( std::shared_ptr< protocol::TMGetObjectByHash > const & m )

protectedinherited

Process a generic-query TMGetObjectByHash message.

Dispatched from onMessage(TMGetObjectByHash) to the JobQueue (JtLedgerReq) so synchronous NodeStore lookups do not block the peer's I/O strand. Caps iteration at tuning::kHardMaxReplyNodes regardless of hit/miss outcome and applies differential pricing via computeGetObjectByHashFee() after the fetch loop completes.

Parameters

m	The protocol message containing requested object hashes.

Definition at line 2731 of file PeerImp.cpp.

◆ computeGetObjectByHashFee()

resource::Charge xrpl::PeerImp::computeGetObjectByHashFee	(	int const	requested,
		int const	found )

staticprotectedinherited

Compute the per-message resource charge for a TMGetObjectByHash request based on how much work was actually performed.

The charge has three components on top of the base resource::kFeeModerateBurdenPeer:

per-hit lookup cost (cheap; usually served from cache)
per-miss lookup cost (expensive node store seeks)
request-size band surcharge (escalates abusive batch sizes)

The first tuning::kFreeObjectsPerRequest objects are free so that legitimate InboundLedger::getNeededHashes() traffic (at most 8 objects) is unaffected.

Parameters

requested	Number of objects requested by the message. This value is used for request-size pricing and may exceed tuning::kHardMaxReplyNodes when this helper is called directly, even though processing caps the iterations to tuning::kHardMaxReplyNodes.
found	Number of objects successfully returned in the reply.

Returns: A resource::Charge whose cost reflects the work performed.

Definition at line 3673 of file PeerImp.cpp.

◆ currentFeeCharge()

resource::Charge xrpl::PeerImp::currentFeeCharge ( ) const

protectedinherited

Read-only accessor for the accumulated peer-message charge.

Exposed at protected scope so test subclasses can verify the oversized-request rejection path (Layer 1) without invoking the full JobQueue handler. Production callers should never read this back — the value is consumed by charge()/disconnect() internally.

Returns: The current resource::Charge accumulated on fee_.

Definition at line 756 of file PeerImp.h.

Member Data Documentation

◆ sent_

std::vector<std::shared_ptr<Message> > xrpl::test::CapturePeer::sent_

private

Definition at line 141 of file CapturePeer.h.

◆ app_

Application& xrpl::PeerImp::app_

privateinherited

Definition at line 85 of file PeerImp.h.

◆ id_

ID const xrpl::PeerImp::id_

privateinherited

Definition at line 86 of file PeerImp.h.

◆ fingerprint_

std::string xrpl::PeerImp::fingerprint_

privateinherited

Definition at line 87 of file PeerImp.h.

◆ prefix_

std::string xrpl::PeerImp::prefix_

privateinherited

Definition at line 88 of file PeerImp.h.

◆ sink_

beast::WrappedSink xrpl::PeerImp::sink_

privateinherited

Definition at line 89 of file PeerImp.h.

◆ pSink_

beast::WrappedSink xrpl::PeerImp::pSink_

privateinherited

Definition at line 90 of file PeerImp.h.

◆ journal_

beast::Journal const xrpl::PeerImp::journal_

privateinherited

Definition at line 91 of file PeerImp.h.

◆ pJournal_

beast::Journal const xrpl::PeerImp::pJournal_

privateinherited

Definition at line 92 of file PeerImp.h.

◆ streamPtr_

std::unique_ptr<StreamType> xrpl::PeerImp::streamPtr_

privateinherited

Definition at line 93 of file PeerImp.h.

◆ socket_

SocketType& xrpl::PeerImp::socket_

privateinherited

Definition at line 94 of file PeerImp.h.

◆ stream_

StreamType& xrpl::PeerImp::stream_

privateinherited

Definition at line 95 of file PeerImp.h.

◆ strand_

boost::asio::strand<boost::asio::executor> xrpl::PeerImp::strand_

privateinherited

Definition at line 96 of file PeerImp.h.

◆ timer_

WaitableTimer xrpl::PeerImp::timer_

privateinherited

Definition at line 97 of file PeerImp.h.

◆ remoteAddress_

beast::ip::Endpoint const xrpl::PeerImp::remoteAddress_

privateinherited

Definition at line 101 of file PeerImp.h.

◆ overlay_

OverlayImpl& xrpl::PeerImp::overlay_

privateinherited

Definition at line 105 of file PeerImp.h.

◆ inbound_

bool const xrpl::PeerImp::inbound_

privateinherited

Definition at line 106 of file PeerImp.h.

◆ protocol_

ProtocolVersion xrpl::PeerImp::protocol_

privateinherited

Definition at line 109 of file PeerImp.h.

◆ tracking_

std::atomic<Tracking> xrpl::PeerImp::tracking_

privateinherited

Definition at line 111 of file PeerImp.h.

◆ trackingTime_

ClockType::time_point xrpl::PeerImp::trackingTime_

privateinherited

Definition at line 112 of file PeerImp.h.

◆ detaching_

bool xrpl::PeerImp::detaching_ = false

privateinherited

Definition at line 113 of file PeerImp.h.

◆ publicKey_

PublicKey const xrpl::PeerImp::publicKey_

privateinherited

Definition at line 115 of file PeerImp.h.

◆ name_

std::string xrpl::PeerImp::name_

privateinherited

Definition at line 116 of file PeerImp.h.

◆ nameMutex_

std::shared_mutex xrpl::PeerImp::nameMutex_

mutableprivateinherited

Definition at line 117 of file PeerImp.h.

◆ minLedger_

LedgerIndex xrpl::PeerImp::minLedger_ = 0

privateinherited

Definition at line 121 of file PeerImp.h.

◆ maxLedger_

LedgerIndex xrpl::PeerImp::maxLedger_ = 0

privateinherited

Definition at line 122 of file PeerImp.h.

◆ closedLedgerHash_

UInt256 xrpl::PeerImp::closedLedgerHash_

privateinherited

Definition at line 123 of file PeerImp.h.

◆ previousLedgerHash_

UInt256 xrpl::PeerImp::previousLedgerHash_

privateinherited

Definition at line 124 of file PeerImp.h.

◆ recentLedgers_

boost::circular_buffer<UInt256> xrpl::PeerImp::recentLedgers_ {128}

privateinherited

Definition at line 126 of file PeerImp.h.

◆ recentTxSets_

boost::circular_buffer<UInt256> xrpl::PeerImp::recentTxSets_ {128}

privateinherited

Definition at line 127 of file PeerImp.h.

◆ latency_

std::optional<std::chrono::milliseconds> xrpl::PeerImp::latency_

privateinherited

Definition at line 129 of file PeerImp.h.

◆ lastPingSeq_

std::optional<std::uint32_t> xrpl::PeerImp::lastPingSeq_

privateinherited

Definition at line 130 of file PeerImp.h.

◆ lastPingTime_

ClockType::time_point xrpl::PeerImp::lastPingTime_

privateinherited

Definition at line 131 of file PeerImp.h.

◆ creationTime_

ClockType::time_point const xrpl::PeerImp::creationTime_

privateinherited

Definition at line 132 of file PeerImp.h.

◆ squelch_

reduce_relay::Squelch<UptimeClock> xrpl::PeerImp::squelch_

privateinherited

Definition at line 134 of file PeerImp.h.

◆ recentLock_

std::mutex xrpl::PeerImp::recentLock_

mutableprivateinherited

Definition at line 181 of file PeerImp.h.

◆ lastStatus_

protocol::TMStatusChange xrpl::PeerImp::lastStatus_

privateinherited

Definition at line 182 of file PeerImp.h.

◆ usage_

resource::Consumer xrpl::PeerImp::usage_

privateinherited

Definition at line 183 of file PeerImp.h.

◆ fee_

ChargeWithContext xrpl::PeerImp::fee_

privateinherited

Definition at line 184 of file PeerImp.h.

◆ chargeDisconnectFired_

std::atomic<bool> xrpl::PeerImp::chargeDisconnectFired_ {false}

privateinherited

Definition at line 190 of file PeerImp.h.

◆ slot_

std::shared_ptr<peer_finder::Slot> const xrpl::PeerImp::slot_

privateinherited

Definition at line 191 of file PeerImp.h.

◆ readBuffer_

boost::beast::multi_buffer xrpl::PeerImp::readBuffer_

privateinherited

Definition at line 192 of file PeerImp.h.

◆ request_

HttpRequestType xrpl::PeerImp::request_

privateinherited

Definition at line 193 of file PeerImp.h.

◆ response_

HttpResponseType xrpl::PeerImp::response_

privateinherited

Definition at line 194 of file PeerImp.h.

◆ headers_

boost::beast::http::fields const& xrpl::PeerImp::headers_

privateinherited

Definition at line 195 of file PeerImp.h.

◆ sendQueue_

std::queue<std::shared_ptr<Message> > xrpl::PeerImp::sendQueue_

privateinherited

Definition at line 196 of file PeerImp.h.

◆ gracefulClose_

bool xrpl::PeerImp::gracefulClose_ = false

privateinherited

Definition at line 197 of file PeerImp.h.

◆ largeSendq_

int xrpl::PeerImp::largeSendq_ = 0

privateinherited

Definition at line 198 of file PeerImp.h.

◆ loadEvent_

std::unique_ptr<LoadEvent> xrpl::PeerImp::loadEvent_

privateinherited

Definition at line 199 of file PeerImp.h.

◆ publisherListSequences_

HashMap<PublicKey, std::size_t> xrpl::PeerImp::publisherListSequences_

privateinherited

Definition at line 202 of file PeerImp.h.

◆ compressionEnabled_

Compressed xrpl::PeerImp::compressionEnabled_ = Compressed::Off

privateinherited

Definition at line 204 of file PeerImp.h.

◆ txQueue_

HashSet<UInt256> xrpl::PeerImp::txQueue_

privateinherited

Definition at line 209 of file PeerImp.h.

◆ txReduceRelayEnabled_

bool xrpl::PeerImp::txReduceRelayEnabled_ = false

privateinherited

Definition at line 211 of file PeerImp.h.

◆ ledgerReplayEnabled_

bool xrpl::PeerImp::ledgerReplayEnabled_ = false

privateinherited

Definition at line 213 of file PeerImp.h.

◆ ledgerReplayMsgHandler_

LedgerReplayMsgHandler xrpl::PeerImp::ledgerReplayMsgHandler_

privateinherited

Definition at line 214 of file PeerImp.h.

◆ sent

Metrics xrpl::PeerImp::sent

inherited

Definition at line 247 of file PeerImp.h.

◆ recv

Metrics xrpl::PeerImp::recv

inherited

Definition at line 248 of file PeerImp.h.

◆ [struct]

struct { ... } xrpl::PeerImp::metrics_

Public Types

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Private Types

Private Member Functions

Static Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ MiddleType

◆ StreamType

◆ SocketType

◆ ClockType

◆ ErrorCode

◆ AddressType

◆ EndpointType

◆ WaitableTimer

◆ Compressed

◆ Ptr

◆ ID

Member Enumeration Documentation

◆ Tracking

Constructor & Destructor Documentation

◆ CapturePeer()

◆ ~CapturePeer()

Member Function Documentation

◆ run()

◆ send()

◆ sent()

◆ lastSent()

◆ feeCharge()

◆ pJournal()

◆ slot()

◆ stop()

◆ sendTxQueue()

◆ addTxQueue()

◆ removeTxQueue()

◆ sendEndpoints()

◆ getRemoteAddress()

◆ charge()

◆ id()

◆ crawl()

◆ cluster()

◆ checkTracking() [1/2]

◆ checkTracking() [2/2]

◆ getNodePublic()

◆ getVersion()

◆ uptime()

◆ json()

◆ supportsFeature()

◆ publisherListSequence()

◆ setPublisherListSequence()

◆ getClosedLedgerHash()

◆ hasLedger()

◆ ledgerRange()

◆ hasTxSet()

◆ cycleStatus()

◆ hasRange()

◆ getScore()

◆ isHighLatency()

◆ fail() [1/2]

◆ fail() [2/2]

◆ compressionEnabled()

◆ maxManifestsMessageSize()

◆ txReduceRelayEnabled()

◆ close()

◆ gracefulClose()

◆ setTimer()

◆ cancelTimer()

◆ makePrefix()

◆ onTimer()

◆ onShutdown()

◆ doAccept()

◆ name()

◆ domain()

◆ doProtocolStart()

◆ onReadMessage()

◆ onWriteMessage()

◆ handleTransaction()
