xrpl::StrandContext Struct Reference

Context needed to build Strand Steps and for error checking. More...

#include <Steps.h>

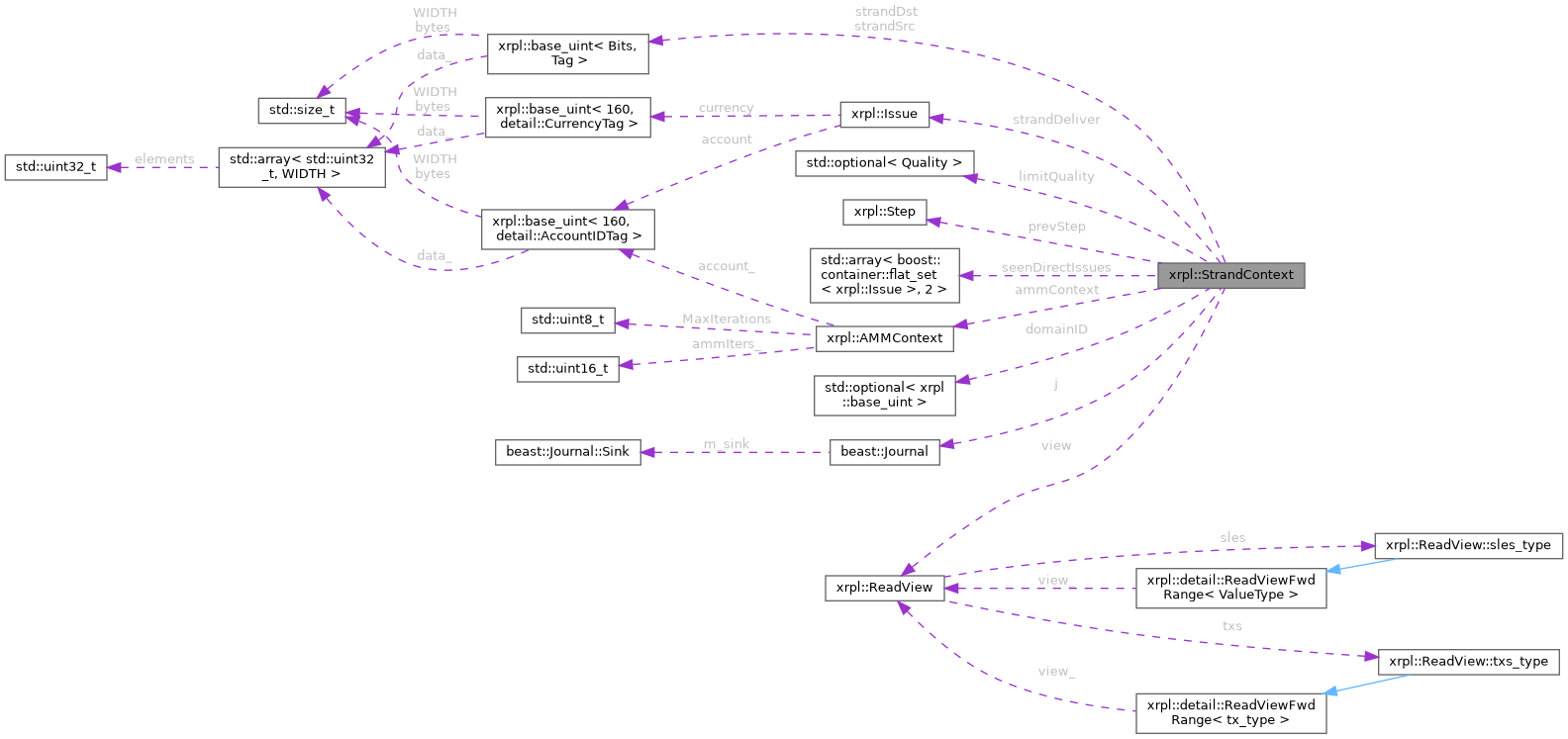

Collaboration diagram for xrpl::StrandContext:

Public Member Functions
	StrandContext (ReadView const &view, std::vector< std::unique_ptr< Step > > const &strand, AccountID const &strandSrc, AccountID const &strandDst, Asset const &strandDeliver, std::optional< Quality > const &limitQuality, bool isLast, bool ownerPaysTransferFee, OfferCrossing offerCrossing, bool isDefaultPath, std::array< boost::container::flat_set< Asset >, 2 > &seenDirectAssets, boost::container::flat_set< Asset > &seenBookOuts, AMMContext &ammContext, std::optional< uint256 > const &domainID, beast::Journal j)
	StrandContext constructor.

Public Attributes
ReadView const &	view
	Current ReadView.
AccountID const	strandSrc
	Strand source account.
AccountID const	strandDst
	Strand destination account.
Asset const	strandDeliver
	Asset strand delivers.
std::optional< Quality > const	limitQuality
	Worst accepted quality.
bool const	isFirst
	true if Step is first in Strand
bool const	isLast = false
	true if Step is last in Strand
bool const	ownerPaysTransferFee
	true if owner, not sender, pays fee
OfferCrossing const	offerCrossing
	Yes/Sell if offer crossing, not payment.
bool const	isDefaultPath
	true if Strand is default path
size_t const	strandSize
	Length of Strand.
Step const *const	prevStep = nullptr
	The previous step in the strand.
std::array< boost::container::flat_set< Asset >, 2 > &	seenDirectAssets
	A strand may not include the same account node more than once in the same currency.
boost::container::flat_set< Asset > &	seenBookOuts
	A strand may not include an offer that output the same issue more than once.
AMMContext &	ammContext
std::optional< uint256 >	domainID
beast::Journal const	j

Detailed Description

Context needed to build Strand Steps and for error checking.

Definition at line 517 of file Steps.h.

Constructor & Destructor Documentation

StrandContext()

xrpl::StrandContext::StrandContext	(	ReadView const &	view,
		std::vector< std::unique_ptr< Step > > const &	strand,
		AccountID const &	strandSrc,
		AccountID const &	strandDst,
		Asset const &	strandDeliver,
		std::optional< Quality > const &	limitQuality,
		bool	isLast,
		bool	ownerPaysTransferFee,
		OfferCrossing	offerCrossing,
		bool	isDefaultPath,
		std::array< boost::container::flat_set< Asset >, 2 > &	seenDirectAssets,
		boost::container::flat_set< Asset > &	seenBookOuts,
		AMMContext &	ammContext,
		std::optional< uint256 > const &	domainID,
		beast::Journal	j )

StrandContext constructor.

Journal for logging

Parameters

seenDirectAssets	For detecting currency loops
seenBookOuts	For detecting book loops

Definition at line 686 of file PaySteps.cpp.

Member Data Documentation

view

ReadView const& xrpl::StrandContext::view

Current ReadView.

Definition at line 519 of file Steps.h.

strandSrc

AccountID const xrpl::StrandContext::strandSrc

Strand source account.

Definition at line 520 of file Steps.h.

strandDst

AccountID const xrpl::StrandContext::strandDst

Strand destination account.

Definition at line 521 of file Steps.h.

strandDeliver

Asset const xrpl::StrandContext::strandDeliver

Asset strand delivers.

Definition at line 522 of file Steps.h.

limitQuality

std::optional<Quality> const xrpl::StrandContext::limitQuality

Worst accepted quality.

Definition at line 523 of file Steps.h.

isFirst

bool const xrpl::StrandContext::isFirst

true if Step is first in Strand

Definition at line 524 of file Steps.h.

isLast

bool const xrpl::StrandContext::isLast = false

true if Step is last in Strand

Definition at line 525 of file Steps.h.

ownerPaysTransferFee

bool const xrpl::StrandContext::ownerPaysTransferFee

true if owner, not sender, pays fee

Definition at line 526 of file Steps.h.

offerCrossing

OfferCrossing const xrpl::StrandContext::offerCrossing

Yes/Sell if offer crossing, not payment.

Definition at line 527 of file Steps.h.

isDefaultPath

bool const xrpl::StrandContext::isDefaultPath

true if Strand is default path

Definition at line 528 of file Steps.h.

strandSize

size_t const xrpl::StrandContext::strandSize

Length of Strand.

Definition at line 529 of file Steps.h.

prevStep

Step const* const xrpl::StrandContext::prevStep = nullptr

The previous step in the strand.

Needed to check the no ripple constraint

Definition at line 533 of file Steps.h.

seenDirectAssets

std::array<boost::container::flat_set<Asset>, 2>& xrpl::StrandContext::seenDirectAssets

A strand may not include the same account node more than once in the same currency.

In a direct step, an account will show up at most twice: once as a src and once as a dst (hence the two element array). The strandSrc and strandDst will only show up once each.

Definition at line 539 of file Steps.h.

seenBookOuts

boost::container::flat_set<Asset>& xrpl::StrandContext::seenBookOuts

A strand may not include an offer that output the same issue more than once.

Definition at line 543 of file Steps.h.

ammContext

AMMContext& xrpl::StrandContext::ammContext

Definition at line 544 of file Steps.h.

domainID

std::optional<uint256> xrpl::StrandContext::domainID

Definition at line 545 of file Steps.h.

j

beast::Journal const xrpl::StrandContext::j

Definition at line 546 of file Steps.h.
