Inheritance diagram for xrpl::MPTEndpointStep< TDerived >:

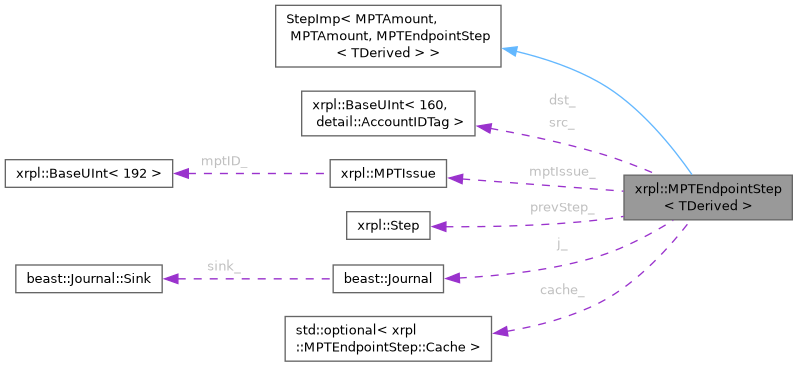

Collaboration diagram for xrpl::MPTEndpointStep< TDerived >:

[legend]

Classes
struct	Cache

Public Member Functions
AccountID const &	src () const
AccountID const &	dst () const
MPTID const &	mptID () const
std::optional< EitherAmount >	cachedIn () const override
std::optional< EitherAmount >	cachedOut () const override
std::optional< AccountID >	directStepSrcAcct () const override
std::optional< std::pair< AccountID, AccountID > >	directStepAccts () const override
DebtDirection	debtDirection (ReadView const &sb, StrandDirection dir) const override
std::uint32_t	lineQualityIn (ReadView const &v) const override
std::pair< std::optional< Quality >, DebtDirection >	qualityUpperBound (ReadView const &v, DebtDirection dir) const override
std::pair< MPTAmount, MPTAmount >	revImp (PaymentSandbox &sb, ApplyView &afView, boost::container::flat_set< UInt256 > &ofrsToRm, MPTAmount const &out)
std::pair< MPTAmount, MPTAmount >	fwdImp (PaymentSandbox &sb, ApplyView &afView, boost::container::flat_set< UInt256 > &ofrsToRm, MPTAmount const &in)
std::pair< bool, EitherAmount >	validFwd (PaymentSandbox &sb, ApplyView &afView, EitherAmount const &in) override
TER	check (StrandContext const &ctx) const
void	setCacheLimiting (MPTAmount const &fwdIn, MPTAmount const &fwdSrcToDst, MPTAmount const &fwdOut, DebtDirection srcDebtDir)

Protected Member Functions
std::pair< MPTAmount, DebtDirection >	maxPaymentFlow (ReadView const &sb) const
std::pair< std::uint32_t, std::uint32_t >	qualitiesSrcRedeems (ReadView const &sb) const
std::pair< std::uint32_t, std::uint32_t >	qualitiesSrcIssues (ReadView const &sb, DebtDirection prevStepDebtDirection) const
std::pair< std::uint32_t, std::uint32_t >	qualities (ReadView const &sb, DebtDirection srcDebtDir, StrandDirection strandDir) const
void	resetCache (DebtDirection dir)
TER	sendWithMPTCreate (ApplyView &view, AccountID const &src, AccountID const &dst, MPTAmount const &amount)
std::string	logStringImpl (char const *name) const

Protected Attributes
AccountID const	src_
AccountID const	dst_
MPTIssue const	mptIssue_
Step const *const	prevStep_ = nullptr
bool const	isLast_
bool const	isDirectBetweenHolders_ = false
beast::Journal const	j_
std::optional< Cache >	cache_

Private Member Functions
	MPTEndpointStep (StrandContext const &ctx, AccountID const &src, AccountID const &dst, MPTID const &mpt)
bool	equal (Step const &rhs) const override

Private Attributes
friend	TDerived

Friends
bool	operator== (MPTEndpointStep const &lhs, MPTEndpointStep const &rhs)
bool	operator!= (MPTEndpointStep const &lhs, MPTEndpointStep const &rhs)

Detailed Description

template<class TDerived>
class xrpl::MPTEndpointStep< TDerived >

Definition at line 37 of file MPTEndpointStep.cpp.

Constructor & Destructor Documentation

◆ MPTEndpointStep()

template<class TDerived>

xrpl::MPTEndpointStep< TDerived >::MPTEndpointStep	(	StrandContext const &	ctx,
		AccountID const &	src,
		AccountID const &	dst,
		MPTID const &	mpt )

private

Definition at line 101 of file MPTEndpointStep.cpp.

Member Function Documentation

◆ maxPaymentFlow()

template<class TDerived>

std::pair< MPTAmount, DebtDirection > xrpl::MPTEndpointStep< TDerived >::maxPaymentFlow ( ReadView const & sb ) const

nodiscardprotected

Definition at line 464 of file MPTEndpointStep.cpp.

◆ qualitiesSrcRedeems()

template<class TDerived>

std::pair< std::uint32_t, std::uint32_t > xrpl::MPTEndpointStep< TDerived >::qualitiesSrcRedeems ( ReadView const & sb ) const

nodiscardprotected

Definition at line 768 of file MPTEndpointStep.cpp.

◆ qualitiesSrcIssues()

template<class TDerived>

std::pair< std::uint32_t, std::uint32_t > xrpl::MPTEndpointStep< TDerived >::qualitiesSrcIssues	(	ReadView const &	sb,
		DebtDirection	prevStepDebtDirection ) const

nodiscardprotected

Definition at line 784 of file MPTEndpointStep.cpp.

◆ qualities()

template<class TDerived>

std::pair< std::uint32_t, std::uint32_t > xrpl::MPTEndpointStep< TDerived >::qualities	(	ReadView const &	sb,
		DebtDirection	srcDebtDir,
		StrandDirection	strandDir ) const

nodiscardprotected

Definition at line 805 of file MPTEndpointStep.cpp.

◆ resetCache()

template<class TDerived>

void xrpl::MPTEndpointStep< TDerived >::resetCache ( xrpl::DebtDirection dir )

protected

Definition at line 936 of file MPTEndpointStep.cpp.

◆ sendWithMPTCreate()

template<class TDerived>

TER xrpl::MPTEndpointStep< TDerived >::sendWithMPTCreate	(	ApplyView &	view,
		AccountID const &	src,
		AccountID const &	dst,
		MPTAmount const &	amount )

nodiscardprotected

Definition at line 440 of file MPTEndpointStep.cpp.

◆ src()

template<class TDerived>

AccountID const & xrpl::MPTEndpointStep< TDerived >::src ( ) const

nodiscard

Definition at line 124 of file MPTEndpointStep.cpp.

◆ dst()

template<class TDerived>

AccountID const & xrpl::MPTEndpointStep< TDerived >::dst ( ) const

nodiscard

Definition at line 129 of file MPTEndpointStep.cpp.

◆ mptID()

template<class TDerived>

MPTID const & xrpl::MPTEndpointStep< TDerived >::mptID ( ) const

nodiscard

Definition at line 134 of file MPTEndpointStep.cpp.

◆ cachedIn()

template<class TDerived>

std::optional< EitherAmount > xrpl::MPTEndpointStep< TDerived >::cachedIn ( ) const

nodiscardoverride

Definition at line 140 of file MPTEndpointStep.cpp.

◆ cachedOut()

template<class TDerived>

std::optional< EitherAmount > xrpl::MPTEndpointStep< TDerived >::cachedOut ( ) const

nodiscardoverride

Definition at line 148 of file MPTEndpointStep.cpp.

◆ directStepSrcAcct()

template<class TDerived>

std::optional< AccountID > xrpl::MPTEndpointStep< TDerived >::directStepSrcAcct ( ) const

nodiscardoverride

Definition at line 156 of file MPTEndpointStep.cpp.

◆ directStepAccts()

template<class TDerived>

std::optional< std::pair< AccountID, AccountID > > xrpl::MPTEndpointStep< TDerived >::directStepAccts ( ) const

nodiscardoverride

Definition at line 162 of file MPTEndpointStep.cpp.

◆ debtDirection()

template<class TDerived>

DebtDirection xrpl::MPTEndpointStep< TDerived >::debtDirection	(	ReadView const &	sb,
		StrandDirection	dir ) const

nodiscardoverride

Definition at line 495 of file MPTEndpointStep.cpp.

◆ lineQualityIn()

template<class TDerived>

std::uint32_t xrpl::MPTEndpointStep< TDerived >::lineQualityIn ( ReadView const & v ) const

nodiscardoverride

Definition at line 825 of file MPTEndpointStep.cpp.

◆ qualityUpperBound()

template<class TDerived>

std::pair< std::optional< Quality >, DebtDirection > xrpl::MPTEndpointStep< TDerived >::qualityUpperBound	(	ReadView const &	v,
		DebtDirection	dir ) const

nodiscardoverride

Definition at line 833 of file MPTEndpointStep.cpp.

◆ revImp()

template<class TDerived>

std::pair< MPTAmount, MPTAmount > xrpl::MPTEndpointStep< TDerived >::revImp	(	PaymentSandbox &	sb,
		ApplyView &	afView,
		boost::container::flat_set< UInt256 > &	ofrsToRm,
		MPTAmount const &	out )

Definition at line 505 of file MPTEndpointStep.cpp.

◆ fwdImp()

template<class TDerived>

std::pair< MPTAmount, MPTAmount > xrpl::MPTEndpointStep< TDerived >::fwdImp	(	PaymentSandbox &	sb,
		ApplyView &	afView,
		boost::container::flat_set< UInt256 > &	ofrsToRm,
		MPTAmount const &	in )

Definition at line 615 of file MPTEndpointStep.cpp.

◆ validFwd()

template<class TDerived>

std::pair< bool, EitherAmount > xrpl::MPTEndpointStep< TDerived >::validFwd	(	PaymentSandbox &	sb,
		ApplyView &	afView,
		EitherAmount const &	in )

override

Definition at line 717 of file MPTEndpointStep.cpp.

◆ check()

template<class TDerived>

TER xrpl::MPTEndpointStep< TDerived >::check ( StrandContext const & ctx ) const

nodiscard

Definition at line 853 of file MPTEndpointStep.cpp.

◆ setCacheLimiting()

template<class TDerived>

void xrpl::MPTEndpointStep< TDerived >::setCacheLimiting	(	MPTAmount const &	fwdIn,
		MPTAmount const &	fwdSrcToDst,
		MPTAmount const &	fwdOut,
		DebtDirection	srcDebtDir )

Definition at line 573 of file MPTEndpointStep.cpp.

◆ logStringImpl()

template<class TDerived>

std::string xrpl::MPTEndpointStep< TDerived >::logStringImpl ( char const * name ) const

protected

Definition at line 219 of file MPTEndpointStep.cpp.

◆ equal()

template<class TDerived>

bool xrpl::MPTEndpointStep< TDerived >::equal ( Step const & rhs ) const

nodiscardoverrideprivate

Definition at line 229 of file MPTEndpointStep.cpp.

◆ operator==

template<class TDerived>

bool operator==	(	MPTEndpointStep< TDerived > const &	lhs,
		MPTEndpointStep< TDerived > const &	rhs )

friend

Definition at line 206 of file MPTEndpointStep.cpp.

◆ operator!=

template<class TDerived>

bool operator!=	(	MPTEndpointStep< TDerived > const &	lhs,
		MPTEndpointStep< TDerived > const &	rhs )

friend

Definition at line 212 of file MPTEndpointStep.cpp.

Member Data Documentation

◆ src_

template<class TDerived>

AccountID const xrpl::MPTEndpointStep< TDerived >::src_

protected

Definition at line 40 of file MPTEndpointStep.cpp.

◆ dst_

template<class TDerived>

AccountID const xrpl::MPTEndpointStep< TDerived >::dst_

protected

Definition at line 41 of file MPTEndpointStep.cpp.

◆ mptIssue_

template<class TDerived>

MPTIssue const xrpl::MPTEndpointStep< TDerived >::mptIssue_

protected

Definition at line 42 of file MPTEndpointStep.cpp.

◆ prevStep_

template<class TDerived>

Step const* const xrpl::MPTEndpointStep< TDerived >::prevStep_ = nullptr

protected

Definition at line 45 of file MPTEndpointStep.cpp.

◆ isLast_

template<class TDerived>

bool const xrpl::MPTEndpointStep< TDerived >::isLast_

protected

Definition at line 46 of file MPTEndpointStep.cpp.

◆ isDirectBetweenHolders_

template<class TDerived>

bool const xrpl::MPTEndpointStep< TDerived >::isDirectBetweenHolders_ = false

protected

Definition at line 49 of file MPTEndpointStep.cpp.

◆ j_

template<class TDerived>

beast::Journal const xrpl::MPTEndpointStep< TDerived >::j_

protected

Definition at line 50 of file MPTEndpointStep.cpp.

◆ cache_

template<class TDerived>

std::optional<Cache> xrpl::MPTEndpointStep< TDerived >::cache_

protected

Definition at line 69 of file MPTEndpointStep.cpp.

◆ TDerived

template<class TDerived>

friend xrpl::MPTEndpointStep< TDerived >::TDerived

private

Definition at line 238 of file MPTEndpointStep.cpp.
