Concrete NetworkOPs: server sequencer, network tracker, and owner of all client subscription state (accounts, books, MPTs, streams). More...

Inheritance diagram for xrpl::NetworkOPsImp:

[legend]

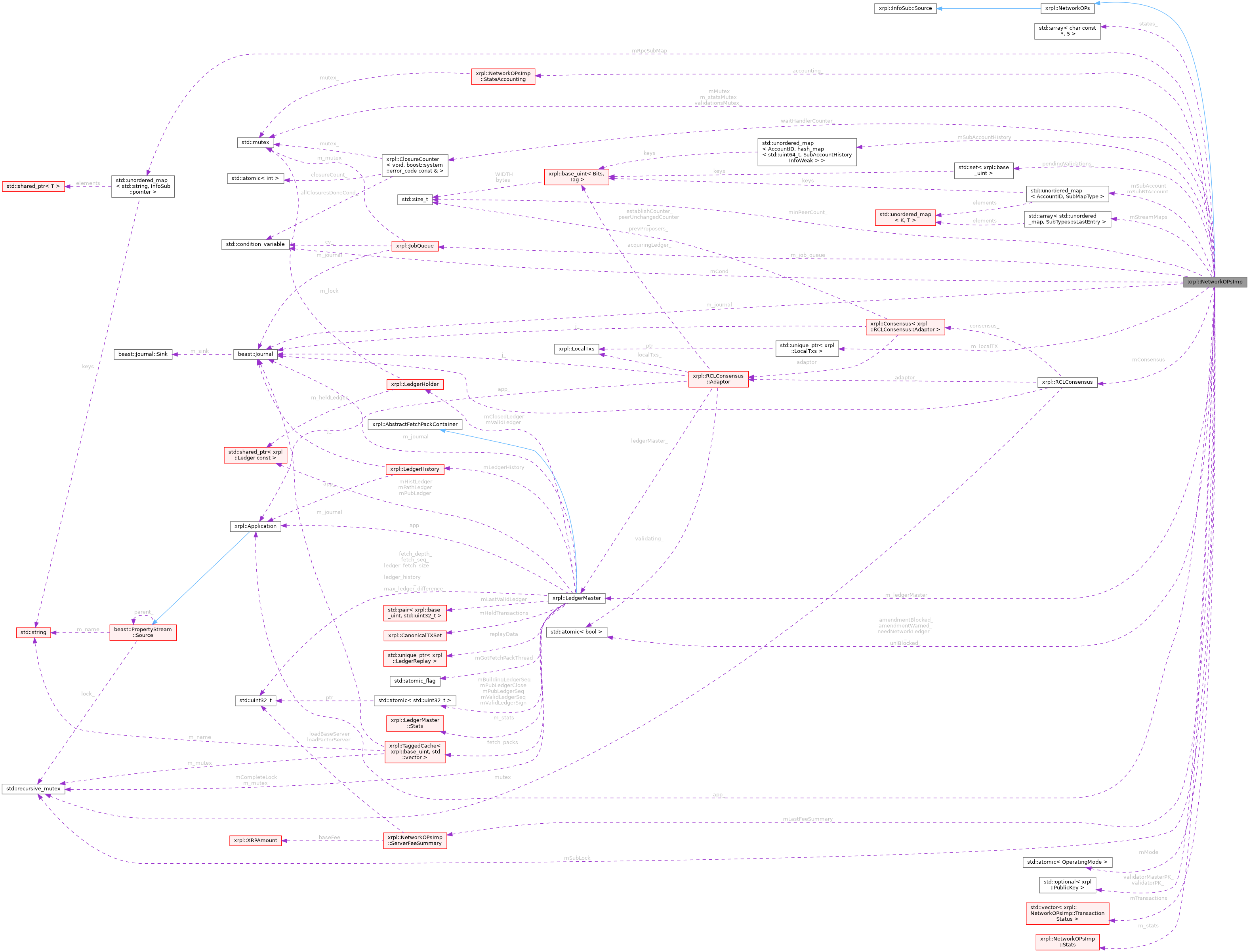

Collaboration diagram for xrpl::NetworkOPsImp:

[legend]

Classes
class	TransactionStatus
	Transaction with input flags and results to be applied in batches. More...
class	StateAccounting
	State accounting records two attributes for each possible server state: 1) Amount of time spent in each state (in microseconds). More...
struct	ServerFeeSummary
	Server fees published on server subscription. More...
struct	SubAccountHistoryIndex
struct	SubAccountHistoryInfo
struct	SubAccountHistoryInfoWeak
struct	Stats

Public Types
enum class	FailHard : unsigned char { No , Yes }
using	ClockType = beast::AbstractClock<std::chrono::steady_clock>

Public Member Functions
	NetworkOPsImp (ServiceRegistry &registry, NetworkOPs::ClockType &clock, bool standalone, std::size_t minPeerCount, bool startValid, JobQueue &jobQueue, LedgerMaster &ledgerMaster, ValidatorKeys const &validatorKeys, boost::asio::io_context &ioCtx, beast::Journal journal, beast::insight::Collector::Ptr const &collector)
	~NetworkOPsImp () override
OperatingMode	getOperatingMode () const override
std::string	strOperatingMode (OperatingMode const mode, bool const admin) const override
std::string	strOperatingMode (bool const admin=false) const override
void	submitTransaction (std::shared_ptr< STTx const > const &) override
void	processTransaction (std::shared_ptr< Transaction > &transaction, bool bUnlimited, bool bLocal, FailHard failType) override
	Process transactions as they arrive from the network or which are submitted by clients.
void	processTransactionSet (CanonicalTXSet const &set) override
	Process a set of transactions synchronously, and ensuring that they are processed in one batch.
void	doTransactionSync (std::shared_ptr< Transaction > transaction, bool bUnlimited, FailHard failType)
	For transactions submitted directly by a client, apply batch of transactions and wait for this transaction to complete.
void	doTransactionAsync (std::shared_ptr< Transaction > transaction, bool bUnlimited, FailHard failtype)
	For transactions not submitted by a locally connected client, fire and forget.
void	transactionBatch ()
	Apply transactions in batches.
void	apply (std::unique_lock< std::mutex > &batchLock)
	Attempt to apply transactions and post-process based on the results.
json::Value	getOwnerInfo (std::shared_ptr< ReadView const > lpLedger, AccountID const &account) override
void	getBookPage (std::shared_ptr< ReadView const > &lpLedger, Book const &, AccountID const &uTakerID, bool const bProof, unsigned int iLimit, json::Value const &jvMarker, json::Value &jvResult) override
bool	processTrustedProposal (RCLCxPeerPos proposal) override
bool	recvValidation (std::shared_ptr< STValidation > const &val, std::string const &source) override
void	mapComplete (std::shared_ptr< SHAMap > const &map, bool fromAcquire) override
bool	beginConsensus (UInt256 const &networkClosed, std::unique_ptr< std::stringstream > const &clog) override
void	endConsensus (std::unique_ptr< std::stringstream > const &clog) override
void	setStandAlone () override
void	setStateTimer () override
	Called to initially start our timers.
void	setNeedNetworkLedger () override
void	clearNeedNetworkLedger () override
bool	isNeedNetworkLedger () override
bool	isFull () override
void	setMode (OperatingMode om) override
bool	isBlocked () override
bool	isAmendmentBlocked () override
void	setAmendmentBlocked () override
bool	isAmendmentWarned () override
void	setAmendmentWarned () override
void	clearAmendmentWarned () override
bool	isUNLBlocked () override
void	setUNLBlocked () override
void	clearUNLBlocked () override
void	consensusViewChange () override
json::Value	getConsensusInfo () override
json::Value	getServerInfo (bool human, bool admin, bool counters) override
void	clearLedgerFetch () override
json::Value	getLedgerFetchInfo () override
std::uint32_t	acceptLedger (std::optional< std::chrono::milliseconds > consensusDelay) override
	Accepts the current transaction tree, return the new ledger's sequence.
void	reportFeeChange () override
void	reportConsensusStateChange (ConsensusPhase phase)
void	updateLocalTx (ReadView const &view) override
std::size_t	getLocalTxCount () override
std::size_t	getBookSubscribersCount () override
	Total number of (book, subscriber) entries currently tracked.
void	pubLedger (std::shared_ptr< ReadView const > const &lpAccepted) override
void	pubProposedTransaction (std::shared_ptr< ReadView const > const &ledger, std::shared_ptr< STTx const > const &transaction, TER result) override
void	pubValidation (std::shared_ptr< STValidation > const &val) override
void	subAccount (InfoSub::Ref ispListener, HashSet< AccountID > const &vnaAccountIDs, bool rt) override
void	unsubAccount (InfoSub::Ref ispListener, HashSet< AccountID > const &vnaAccountIDs, bool rt) override
void	unsubAccountInternal (std::uint64_t seq, HashSet< AccountID > const &vnaAccountIDs, bool rt) override
void	subMPT (InfoSub::Ref ispListener, HashSet< MPTID > const &mptIDs) override
void	unsubMPT (InfoSub::Ref ispListener, HashSet< MPTID > const &mptIDs) override
void	unsubMPTInternal (std::uint64_t seq, MPTID const &mptID) override
	Remove an MPT issuance subscription during InfoSub teardown.
ErrorCodeI	subAccountHistory (InfoSub::Ref ispListener, AccountID const &account) override
	subscribe an account's new transactions and retrieve the account's historical transactions
void	unsubAccountHistory (InfoSub::Ref ispListener, AccountID const &account, bool historyOnly) override
	unsubscribe an account's transactions
void	unsubAccountHistoryInternal (std::uint64_t seq, AccountID const &account, bool historyOnly) override
void	scheduleAccountCleanup (std::uint64_t seq, HashSet< AccountID > rtAccounts, HashSet< AccountID > normalAccounts, HashSet< AccountID > historyAccounts) override
	Schedule the server-side teardown of a disconnecting connection's account subscriptions off the destructor thread.
bool	subLedger (InfoSub::Ref ispListener, json::Value &jvResult) override
bool	unsubLedger (std::uint64_t uListener) override
bool	subBookChanges (InfoSub::Ref ispListener) override
bool	unsubBookChanges (std::uint64_t uListener) override
bool	subServer (InfoSub::Ref ispListener, json::Value &jvResult, bool admin) override
bool	unsubServer (std::uint64_t uListener) override
bool	subBook (InfoSub::Ref ispListener, Book const &) override
bool	unsubBook (InfoSub::Ref ispListener, Book const &) override
	Remove a book subscription for a live subscriber.
bool	unsubBookInternal (std::uint64_t uListener, Book const &) override
	Remove a book subscription during InfoSub teardown.
bool	subManifests (InfoSub::Ref ispListener) override
bool	unsubManifests (std::uint64_t uListener) override
void	pubManifest (Manifest const &) override
bool	subTransactions (InfoSub::Ref ispListener) override
bool	unsubTransactions (std::uint64_t uListener) override
bool	subRTTransactions (InfoSub::Ref ispListener) override
bool	unsubRTTransactions (std::uint64_t uListener) override
bool	subValidations (InfoSub::Ref ispListener) override
bool	unsubValidations (std::uint64_t uListener) override
bool	subPeerStatus (InfoSub::Ref ispListener) override
bool	unsubPeerStatus (std::uint64_t uListener) override
void	pubPeerStatus (std::function< json::Value(void)> const &) override
bool	subConsensus (InfoSub::Ref ispListener) override
bool	unsubConsensus (std::uint64_t uListener) override
InfoSub::pointer	findRpcSub (std::string const &strUrl) override
InfoSub::pointer	addRpcSub (std::string const &strUrl, InfoSub::Ref) override
bool	tryRemoveRpcSub (std::string const &strUrl) override
InfoSub::pointer	findRpcSubLocked (std::string const &strUrl)
	Look up an RPC subscription without taking streamLock_.
beast::Journal const &	journal () const override
	Journal used by InfoSub for diagnostics that occur after the owning subsystem (e.g.
void	stop () override
void	stateAccounting (json::Value &obj) override

Static Public Member Functions
static FailHard	doFailHard (bool noMeansDont)

Private Types
enum class	DispatchState : unsigned char { None , Scheduled , Running }
	Synchronization states for transaction batches. More...
enum	SubTypes { SLedger , SManifests , SServer , STransactions , SRtTransactions , SValidations , SPeerStatus , SConsensusPhase , SBookChanges , SLastEntry }
using	SubMapType = HashMap<std::uint64_t, InfoSub::Wptr>
using	SubInfoMapType = HashMap<AccountID, SubMapType>
using	SubRpcMapType = HashMap<std::string, InfoSub::pointer>
using	SubMPTInfoMapType = HashMap<MPTID, SubMapType>
using	SubAccountHistoryMapType
using	SubBookMapType = HashMap<Book, SubMapType>
	Maps each order book to its current set of subscribers.

Private Member Functions
bool	preProcessTransaction (std::shared_ptr< Transaction > &transaction)
void	doTransactionSyncBatch (std::unique_lock< std::mutex > &lock, std::function< bool(std::unique_lock< std::mutex > const &)> retryCallback)
void	switchLastClosedLedger (std::shared_ptr< Ledger const > const &newLCL)
bool	checkLastClosedLedger (Overlay::PeerSequence const &, UInt256 &networkClosed)
void	setTimer (boost::asio::steady_timer &timer, std::chrono::milliseconds const &expiryTime, std::function< void()> onExpire, std::function< void()> onError)
void	setHeartbeatTimer ()
void	setClusterTimer ()
void	processHeartbeatTimer ()
void	processClusterTimer ()
MultiApiJson	transJson (std::shared_ptr< STTx const > const &transaction, TER result, bool validated, std::shared_ptr< ReadView const > const &ledger, std::optional< std::reference_wrapper< TxMeta const > > meta)
void	pubValidatedTransaction (std::shared_ptr< ReadView const > const &ledger, AcceptedLedgerTx const &transaction, bool last)
void	pubAccountTransaction (std::shared_ptr< ReadView const > const &ledger, AcceptedLedgerTx const &transaction, bool last)
void	pubBookTransaction (AcceptedLedgerTx const &transaction, MultiApiJson const &jvObj)
	Fan transaction notifications out to all book subscribers.
void	pubProposedAccountTransaction (std::shared_ptr< ReadView const > const &ledger, std::shared_ptr< STTx const > const &transaction, TER result)
void	publishLedgerStreams (std::shared_ptr< ReadView const > const &lpAccepted, std::shared_ptr< AcceptedLedger const > const &alpAccepted)
	Send the ledgerClosed and book-changes stream updates for a ledger.
void	kickoffAccountHistory (std::shared_ptr< AcceptedLedger const > const &alpAccepted)
	On the first published ledger only, start the delayed account-history streaming for any subscriptions that were registered before a validated ledger existed.
void	pubServer ()
void	pubConsensus (ConsensusPhase phase)
void	pubMPTTransaction (AcceptedLedgerTx const &transaction, MultiApiJson const &jvObj)
std::string	getHostId (bool forAdmin)
void	subAccountHistoryStart (std::shared_ptr< ReadView const > const &ledger, SubAccountHistoryInfoWeak &subInfo)
void	addAccountHistoryJob (SubAccountHistoryInfoWeak subInfo)
void	setAccountHistoryJobTimer (SubAccountHistoryInfoWeak subInfo)
template<typename OuterMap, typename BeforeErase>
void	cleanupSubscriptionMap (std::uint64_t seq, HashSet< AccountID > const &accounts, OuterMap &outerMap, BeforeErase &&beforeErase)
	Erase one connection's entries from a subscription map in accountLock_-bounded chunks.
void	cleanupAccountSubscriptions (std::uint64_t seq, HashSet< AccountID > const &accounts, SubInfoMapType &subMap)
	Erase one connection's entries from the given account map (subAccount_ or subRTAccount_) in accountLock_-bounded chunks.
void	cleanupAccountHistorySubscriptions (std::uint64_t seq, HashSet< AccountID > const &accounts)
	Erase one connection's entries from subAccountHistory_ in accountLock_-bounded chunks.
void	collectMetrics ()

Private Attributes
std::reference_wrapper< ServiceRegistry >	registry_
beast::Journal	journal_
std::unique_ptr< LocalTxs >	localTX_
std::mutex	accountLock_
	Guards subAccount_, subRTAccount_, subAccountHistory_.
std::mutex	bookLock_
	Guards subBook_.
std::mutex	mptLock_
	Guards subMPT_.
std::mutex	streamLock_
	Guards streamMaps_[] and rpcSubMap_.
std::atomic< OperatingMode >	mode_
std::atomic< bool >	needNetworkLedger_ {false}
std::atomic< bool >	amendmentBlocked_ {false}
std::atomic< bool >	amendmentWarned_ {false}
std::atomic< bool >	unlBlocked_ {false}
ClosureCounter< void, boost::system::error_code const & >	waitHandlerCounter_
boost::asio::steady_timer	heartbeatTimer_
boost::asio::steady_timer	clusterTimer_
boost::asio::steady_timer	accountHistoryTxTimer_
RCLConsensus	consensus_
std::optional< PublicKey > const	validatorPK_
std::optional< PublicKey > const	validatorMasterPK_
ConsensusPhase	lastConsensusPhase_ {ConsensusPhase::Open}
LedgerMaster &	ledgerMaster_
SubInfoMapType	subAccount_
SubInfoMapType	subRTAccount_
SubBookMapType	subBook_
	Guarded by bookLock_.
SubMPTInfoMapType	subMPT_
	Guarded by mptLock_.
SubRpcMapType	rpcSubMap_
SubAccountHistoryMapType	subAccountHistory_
std::array< SubMapType, SubTypes::SLastEntry >	streamMaps_
	One weak_ptr subscriber map per stream type.
ServerFeeSummary	lastFeeSummary_
JobQueue &	jobQueue_
bool const	standalone_
std::size_t const	minPeerCount_
std::condition_variable	cond_
std::mutex	mutex_
DispatchState	dispatchState_ = DispatchState::None
std::vector< TransactionStatus >	transactions_
StateAccounting	accounting_
std::set< UInt256 >	pendingValidations_
std::mutex	validationsMutex_
std::mutex	statsMutex_
Stats	stats_

Static Private Attributes
static std::array< char const *, 5 > const	kStates = kStateNames
static constexpr std::size_t	kAccountCleanupChunk = 4096
	Maximum number of account entries erased per accountLock_ acquisition during disconnect-time cleanup.

Detailed Description

Concrete NetworkOPs: server sequencer, network tracker, and owner of all client subscription state (accounts, books, MPTs, streams).

Subscriptions use four independent non-recursive locks (accountLock_, bookLock_, mptLock_, streamLock_); see their declarations for the locking and deferred-destruction rules.

Definition at line 167 of file NetworkOPs.cpp.

Member Typedef Documentation

◆ SubMapType

using xrpl::NetworkOPsImp::SubMapType = HashMap<std::uint64_t, InfoSub::Wptr>

private

Definition at line 818 of file NetworkOPs.cpp.

◆ SubInfoMapType

using xrpl::NetworkOPsImp::SubInfoMapType = HashMap<AccountID, SubMapType>

private

Definition at line 819 of file NetworkOPs.cpp.

◆ SubRpcMapType

using xrpl::NetworkOPsImp::SubRpcMapType = HashMap<std::string, InfoSub::pointer>

private

Definition at line 820 of file NetworkOPs.cpp.

◆ SubMPTInfoMapType

using xrpl::NetworkOPsImp::SubMPTInfoMapType = HashMap<MPTID, SubMapType>

private

Definition at line 821 of file NetworkOPs.cpp.

◆ SubAccountHistoryMapType

using xrpl::NetworkOPsImp::SubAccountHistoryMapType

private

Initial value:

HashMap<AccountID, HashMap<std::uint64_t, SubAccountHistoryInfoWeak>>

xrpl::HashMap

std::unordered_map< Key, Value, Hash, Pred, Allocator > HashMap

Definition UnorderedContainers.h:36

Definition at line 858 of file NetworkOPs.cpp.

◆ SubBookMapType

using xrpl::NetworkOPsImp::SubBookMapType = HashMap<Book, SubMapType>

private

Maps each order book to its current set of subscribers.

Outer key: the Book (currency pair + optional domain). Inner key: InfoSub::seq (unique per connection). Inner value: weak_ptr so that a dropped connection does not prevent the InfoSub from being destroyed; expired entries are pruned lazily by pubBookTransaction and eagerly by unsubBookInternal (~InfoSub path). Guarded by bookLock_.

Definition at line 987 of file NetworkOPs.cpp.

◆ ClockType

using xrpl::NetworkOPs::ClockType = beast::AbstractClock<std::chrono::steady_clock>

inherited

Definition at line 84 of file NetworkOPs.h.

Member Enumeration Documentation

◆ DispatchState

enum class xrpl::NetworkOPsImp::DispatchState : unsigned char

strongprivate

Synchronization states for transaction batches.

Enumerator
None
Scheduled
Running

Definition at line 196 of file NetworkOPs.cpp.

◆ SubTypes

enum xrpl::NetworkOPsImp::SubTypes

private

Enumerator
SLedger
SManifests
SServer
STransactions
SRtTransactions
SValidations
SPeerStatus
SConsensusPhase
SBookChanges
SLastEntry

Definition at line 1000 of file NetworkOPs.cpp.

◆ FailHard

enum class xrpl::NetworkOPs::FailHard : unsigned char

stronginherited

Enumerator
No
Yes

Definition at line 86 of file NetworkOPs.h.

Constructor & Destructor Documentation

◆ NetworkOPsImp()

xrpl::NetworkOPsImp::NetworkOPsImp	(	ServiceRegistry &	registry,
		NetworkOPs::ClockType &	clock,
		bool	standalone,
		std::size_t	minPeerCount,
		bool	startValid,
		JobQueue &	jobQueue,
		LedgerMaster &	ledgerMaster,
		ValidatorKeys const &	validatorKeys,
		boost::asio::io_context &	ioCtx,
		beast::Journal	journal,
		beast::insight::Collector::Ptr const &	collector )

Definition at line 306 of file NetworkOPs.cpp.

◆ ~NetworkOPsImp()

xrpl::NetworkOPsImp::~NetworkOPsImp ( )

override

Definition at line 349 of file NetworkOPs.cpp.

Member Function Documentation

◆ getOperatingMode()

OperatingMode xrpl::NetworkOPsImp::getOperatingMode ( ) const

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 1103 of file NetworkOPs.cpp.

◆ strOperatingMode() [1/2]

std::string xrpl::NetworkOPsImp::strOperatingMode	(	OperatingMode const	mode,
		bool const	admin ) const

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 1372 of file NetworkOPs.cpp.

◆ strOperatingMode() [2/2]

std::string xrpl::NetworkOPsImp::strOperatingMode ( bool const admin = false ) const

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 1109 of file NetworkOPs.cpp.

◆ submitTransaction()

void xrpl::NetworkOPsImp::submitTransaction ( std::shared_ptr< STTx const > const & iTrans )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 1391 of file NetworkOPs.cpp.

◆ processTransaction()

void xrpl::NetworkOPsImp::processTransaction	(	std::shared_ptr< Transaction > &	transaction,
		bool	bUnlimited,
		bool	bLocal,
		FailHard	failType )

overridevirtual

Process transactions as they arrive from the network or which are submitted by clients.

Process local transactions synchronously

Parameters

transaction	Transaction object
bUnlimited	Whether a privileged client connection submitted it.
bLocal	Client submission.
failType	fail_hard setting from transaction submission.

Implements xrpl::NetworkOPs.

Definition at line 1514 of file NetworkOPs.cpp.

◆ processTransactionSet()

void xrpl::NetworkOPsImp::processTransactionSet ( CanonicalTXSet const & set )

overridevirtual

Process a set of transactions synchronously, and ensuring that they are processed in one batch.

Parameters

set	Transaction object set

Implements xrpl::NetworkOPs.

Definition at line 1607 of file NetworkOPs.cpp.

◆ doTransactionSync()

void xrpl::NetworkOPsImp::doTransactionSync	(	std::shared_ptr< Transaction >	transaction,
		bool	bUnlimited,
		FailHard	failType )

For transactions submitted directly by a client, apply batch of transactions and wait for this transaction to complete.

Parameters

transaction	Transaction object.
bUnlimited	Whether a privileged client connection submitted it.
failType	fail_hard setting from transaction submission.

Definition at line 1560 of file NetworkOPs.cpp.

◆ doTransactionAsync()

void xrpl::NetworkOPsImp::doTransactionAsync	(	std::shared_ptr< Transaction >	transaction,
		bool	bUnlimited,
		FailHard	failtype )

For transactions not submitted by a locally connected client, fire and forget.

Add to batch and trigger it to be processed if there's no batch currently being applied.

Parameters

transaction	Transaction object
bUnlimited	Whether a privileged client connection submitted it.
failType	fail_hard setting from transaction submission.

Definition at line 1537 of file NetworkOPs.cpp.

◆ preProcessTransaction()

bool xrpl::NetworkOPsImp::preProcessTransaction ( std::shared_ptr< Transaction > & transaction )

private

Definition at line 1448 of file NetworkOPs.cpp.

◆ doTransactionSyncBatch()

void xrpl::NetworkOPsImp::doTransactionSyncBatch	(	std::unique_lock< std::mutex > &	lock,
		std::function< bool(std::unique_lock< std::mutex > const &)>	retryCallback )

private

Definition at line 1579 of file NetworkOPs.cpp.

◆ transactionBatch()

void xrpl::NetworkOPsImp::transactionBatch ( )

Apply transactions in batches.

Continue until none are queued.

Definition at line 1672 of file NetworkOPs.cpp.

◆ apply()

void xrpl::NetworkOPsImp::apply ( std::unique_lock< std::mutex > & batchLock )

Attempt to apply transactions and post-process based on the results.

Parameters

Lock	that protects the transaction batching

Definition at line 1686 of file NetworkOPs.cpp.

◆ getOwnerInfo()

json::Value xrpl::NetworkOPsImp::getOwnerInfo	(	std::shared_ptr< ReadView const >	lpLedger,
		AccountID const &	account )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 1951 of file NetworkOPs.cpp.

◆ getBookPage()

void xrpl::NetworkOPsImp::getBookPage	(	std::shared_ptr< ReadView const > &	lpLedger,
		Book const &	book,
		AccountID const &	uTakerID,
		bool const	bProof,
		unsigned int	iLimit,
		json::Value const &	jvMarker,
		json::Value &	jvResult )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 4931 of file NetworkOPs.cpp.

◆ processTrustedProposal()

bool xrpl::NetworkOPsImp::processTrustedProposal ( RCLCxPeerPos proposal )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 2304 of file NetworkOPs.cpp.

◆ recvValidation()

bool xrpl::NetworkOPsImp::recvValidation	(	std::shared_ptr< STValidation > const &	val,
		std::string const &	source )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 2768 of file NetworkOPs.cpp.

◆ mapComplete()

void xrpl::NetworkOPsImp::mapComplete	(	std::shared_ptr< SHAMap > const &	map,
		bool	fromAcquire )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 2329 of file NetworkOPs.cpp.

◆ switchLastClosedLedger()

void xrpl::NetworkOPsImp::switchLastClosedLedger ( std::shared_ptr< Ledger const > const & newLCL )

private

Definition at line 2177 of file NetworkOPs.cpp.

◆ checkLastClosedLedger()

bool xrpl::NetworkOPsImp::checkLastClosedLedger	(	Overlay::PeerSequence const &	peerList,
		UInt256 &	networkClosed )

private

Definition at line 2072 of file NetworkOPs.cpp.

◆ beginConsensus()

bool xrpl::NetworkOPsImp::beginConsensus	(	UInt256 const &	networkClosed,
		std::unique_ptr< std::stringstream > const &	clog )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 2232 of file NetworkOPs.cpp.

◆ endConsensus()

void xrpl::NetworkOPsImp::endConsensus ( std::unique_ptr< std::stringstream > const & clog )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 2345 of file NetworkOPs.cpp.

◆ setStandAlone()

void xrpl::NetworkOPsImp::setStandAlone ( )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 1115 of file NetworkOPs.cpp.

◆ setStateTimer()

void xrpl::NetworkOPsImp::setStateTimer ( )

overridevirtual

Called to initially start our timers.

Not called for stand-alone mode.

Implements xrpl::NetworkOPs.

Definition at line 1164 of file NetworkOPs.cpp.

◆ setNeedNetworkLedger()

void xrpl::NetworkOPsImp::setNeedNetworkLedger ( )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 1121 of file NetworkOPs.cpp.

◆ clearNeedNetworkLedger()

void xrpl::NetworkOPsImp::clearNeedNetworkLedger ( )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 1127 of file NetworkOPs.cpp.

◆ isNeedNetworkLedger()

bool xrpl::NetworkOPsImp::isNeedNetworkLedger ( )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 1133 of file NetworkOPs.cpp.

◆ isFull()

bool xrpl::NetworkOPsImp::isFull ( )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 1139 of file NetworkOPs.cpp.

◆ setMode()

void xrpl::NetworkOPsImp::setMode ( OperatingMode om )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 2739 of file NetworkOPs.cpp.

◆ isBlocked()

bool xrpl::NetworkOPsImp::isBlocked ( )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 2016 of file NetworkOPs.cpp.

◆ isAmendmentBlocked()

bool xrpl::NetworkOPsImp::isAmendmentBlocked ( )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 2022 of file NetworkOPs.cpp.

◆ setAmendmentBlocked()

void xrpl::NetworkOPsImp::setAmendmentBlocked ( )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 2028 of file NetworkOPs.cpp.

◆ isAmendmentWarned()

bool xrpl::NetworkOPsImp::isAmendmentWarned ( )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 2035 of file NetworkOPs.cpp.

◆ setAmendmentWarned()

void xrpl::NetworkOPsImp::setAmendmentWarned ( )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 2041 of file NetworkOPs.cpp.

◆ clearAmendmentWarned()

void xrpl::NetworkOPsImp::clearAmendmentWarned ( )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 2047 of file NetworkOPs.cpp.

◆ isUNLBlocked()

bool xrpl::NetworkOPsImp::isUNLBlocked ( )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 2053 of file NetworkOPs.cpp.

◆ setUNLBlocked()

void xrpl::NetworkOPsImp::setUNLBlocked ( )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 2059 of file NetworkOPs.cpp.

◆ clearUNLBlocked()

void xrpl::NetworkOPsImp::clearUNLBlocked ( )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 2066 of file NetworkOPs.cpp.

◆ consensusViewChange()

void xrpl::NetworkOPsImp::consensusViewChange ( )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 2400 of file NetworkOPs.cpp.

◆ getConsensusInfo()

json::Value xrpl::NetworkOPsImp::getConsensusInfo ( )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 2826 of file NetworkOPs.cpp.

◆ getServerInfo()

json::Value xrpl::NetworkOPsImp::getServerInfo	(	bool	human,
		bool	admin,
		bool	counters )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 2832 of file NetworkOPs.cpp.

◆ clearLedgerFetch()

void xrpl::NetworkOPsImp::clearLedgerFetch ( )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 3244 of file NetworkOPs.cpp.

◆ getLedgerFetchInfo()

json::Value xrpl::NetworkOPsImp::getLedgerFetchInfo ( )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 3250 of file NetworkOPs.cpp.

◆ acceptLedger()

std::uint32_t xrpl::NetworkOPsImp::acceptLedger ( std::optional< std::chrono::milliseconds > consensusDelay )

overridevirtual

Accepts the current transaction tree, return the new ledger's sequence.

This API is only used via RPC with the server in STANDALONE mode and performs a virtual consensus round, with all the transactions we are proposing being accepted.

Implements xrpl::NetworkOPs.

Definition at line 4663 of file NetworkOPs.cpp.

◆ reportFeeChange()

void xrpl::NetworkOPsImp::reportFeeChange ( )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 3440 of file NetworkOPs.cpp.

◆ reportConsensusStateChange()

void xrpl::NetworkOPsImp::reportConsensusStateChange ( ConsensusPhase phase )

Definition at line 3455 of file NetworkOPs.cpp.

◆ updateLocalTx()

void xrpl::NetworkOPsImp::updateLocalTx ( ReadView const & view )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 3461 of file NetworkOPs.cpp.

◆ getLocalTxCount()

std::size_t xrpl::NetworkOPsImp::getLocalTxCount ( )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 3466 of file NetworkOPs.cpp.

◆ getBookSubscribersCount()

std::size_t xrpl::NetworkOPsImp::getBookSubscribersCount ( )

overridevirtual

Total number of (book, subscriber) entries currently tracked.

Counts every weak_ptr stored across every book in subBook_, NOT the number of distinct subscribers and NOT the number of distinct books: a single subscriber following N books contributes N entries.

Note: Diagnostic accessor; intended for tests and operator visibility into per-book subscription state. The returned value is a snapshot under the subscription lock.

Implements xrpl::NetworkOPs.

Definition at line 3472 of file NetworkOPs.cpp.

◆ pubLedger()

void xrpl::NetworkOPsImp::pubLedger ( std::shared_ptr< ReadView const > const & lpAccepted )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 3303 of file NetworkOPs.cpp.

◆ pubProposedTransaction()

void xrpl::NetworkOPsImp::pubProposedTransaction	(	std::shared_ptr< ReadView const > const &	ledger,
		std::shared_ptr< STTx const > const &	transaction,
		TER	result )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 3256 of file NetworkOPs.cpp.

◆ pubValidation()

void xrpl::NetworkOPsImp::pubValidation ( std::shared_ptr< STValidation > const & val )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 2593 of file NetworkOPs.cpp.

◆ subAccount()

void xrpl::NetworkOPsImp::subAccount	(	InfoSub::Ref	ispListener,
		HashSet< AccountID > const &	vnaAccountIDs,
		bool	rt )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 3948 of file NetworkOPs.cpp.

◆ unsubAccount()

void xrpl::NetworkOPsImp::unsubAccount	(	InfoSub::Ref	ispListener,
		HashSet< AccountID > const &	vnaAccountIDs,
		bool	rt )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 3984 of file NetworkOPs.cpp.

◆ unsubAccountInternal()

void xrpl::NetworkOPsImp::unsubAccountInternal	(	std::uint64_t	seq,
		HashSet< AccountID > const &	vnaAccountIDs,
		bool	rt )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 4000 of file NetworkOPs.cpp.

◆ subMPT()

void xrpl::NetworkOPsImp::subMPT	(	InfoSub::Ref	ispListener,
		HashSet< MPTID > const &	mptIDs )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 4207 of file NetworkOPs.cpp.

◆ unsubMPT()

void xrpl::NetworkOPsImp::unsubMPT	(	InfoSub::Ref	ispListener,
		HashSet< MPTID > const &	mptIDs )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 4240 of file NetworkOPs.cpp.

◆ unsubMPTInternal()

void xrpl::NetworkOPsImp::unsubMPTInternal	(	std::uint64_t	uListener,
		MPTID const &	mptID )

overridevirtual

Remove an MPT issuance subscription during InfoSub teardown.

Removes only the server-side entry from subMPT_. Does NOT touch InfoSub::mptSubscriptions_ because the InfoSub is being destroyed. Called by ~InfoSub() for each issuance in mptSubscriptions_.

Parameters

uListener	The sequence number of the subscriber being torn down.
mptID	The MPT issuance to remove.

Note: Thread-safety: acquires mptLock_ internally.

Implements xrpl::InfoSub::Source.

Definition at line 4253 of file NetworkOPs.cpp.

◆ subAccountHistory()

ErrorCodeI xrpl::NetworkOPsImp::subAccountHistory	(	InfoSub::Ref	ispListener,
		AccountID const &	account )

overridevirtual

subscribe an account's new transactions and retrieve the account's historical transactions

Returns: rpcSUCCESS if successful, otherwise an error code

Implements xrpl::InfoSub::Source.

Definition at line 4543 of file NetworkOPs.cpp.

◆ unsubAccountHistory()

void xrpl::NetworkOPsImp::unsubAccountHistory	(	InfoSub::Ref	ispListener,
		AccountID const &	account,
		bool	historyOnly )

overridevirtual

unsubscribe an account's transactions

Parameters

historyOnly if true, only stop historical transactions

Note: once a client receives enough historical transactions, it should unsubscribe with historyOnly == true to stop receiving more historical transactions. It will continue to receive new transactions.

Implements xrpl::InfoSub::Source.

Definition at line 4584 of file NetworkOPs.cpp.

◆ unsubAccountHistoryInternal()

void xrpl::NetworkOPsImp::unsubAccountHistoryInternal	(	std::uint64_t	seq,
		AccountID const &	account,
		bool	historyOnly )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 4595 of file NetworkOPs.cpp.

◆ scheduleAccountCleanup()

void xrpl::NetworkOPsImp::scheduleAccountCleanup	(	std::uint64_t	seq,
		HashSet< AccountID >	rtAccounts,
		HashSet< AccountID >	normalAccounts,
		HashSet< AccountID >	historyAccounts )

overridevirtual

Schedule the server-side teardown of a disconnecting connection's account subscriptions off the destructor thread.

The implementation posts a low-priority JobQueue task that erases the entries in bounded chunks, so ~InfoSub returns immediately instead of running the erase loop inline. The sets are taken by value so the job owns its copies and never references the destroyed InfoSub. Cleanup is keyed on seq (unique per connection), so deferring it cannot disturb a reconnected client reusing the same accounts.

Parameters

seq	The disconnecting connection's unique subscription id.
rtAccounts	Real-time account subscriptions to remove.
normalAccounts	Normal account subscriptions to remove.
historyAccounts	Account-history subscriptions to remove.

Note: The implementing Source must outlive any job it posts. If the JobQueue is already stopping (process shutdown), the job is not enqueued; the cleanup is skipped because the server-side maps are about to be destroyed and no publishing can run.

Implements xrpl::InfoSub::Source.

Definition at line 4094 of file NetworkOPs.cpp.

◆ subLedger()

bool xrpl::NetworkOPsImp::subLedger	(	InfoSub::Ref	ispListener,
		json::Value &	jvResult )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 4681 of file NetworkOPs.cpp.

◆ unsubLedger()

bool xrpl::NetworkOPsImp::unsubLedger ( std::uint64_t uListener )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 4716 of file NetworkOPs.cpp.

◆ subBookChanges()

bool xrpl::NetworkOPsImp::subBookChanges ( InfoSub::Ref ispListener )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 4708 of file NetworkOPs.cpp.

◆ unsubBookChanges()

bool xrpl::NetworkOPsImp::unsubBookChanges ( std::uint64_t uListener )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 4724 of file NetworkOPs.cpp.

◆ subServer()

bool xrpl::NetworkOPsImp::subServer	(	InfoSub::Ref	ispListener,
		json::Value &	jvResult,
		bool	admin )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 4748 of file NetworkOPs.cpp.

◆ unsubServer()

bool xrpl::NetworkOPsImp::unsubServer ( std::uint64_t uListener )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 4773 of file NetworkOPs.cpp.

◆ subBook()

bool xrpl::NetworkOPsImp::subBook	(	InfoSub::Ref	ispListener,
		Book const &	book )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 4625 of file NetworkOPs.cpp.

◆ unsubBook()

bool xrpl::NetworkOPsImp::unsubBook	(	InfoSub::Ref	ispListener,
		Book const &	)

overridevirtual

Remove a book subscription for a live subscriber.

Clears the book from the subscriber's own tracking set (InfoSub::bookSubscriptions_) and then removes the server-side entry from subBook_. Call this from RPC unsubscribe handlers.

Parameters

ispListener	The subscriber requesting removal.
book	The order book to unsubscribe from.

Returns: true if the entry was present and removed, false if the subscriber was not subscribed to book.

Note: Thread-safety: acquires bookLock_ internally.; Do NOT call from ~InfoSub(). Use unsubBookInternal instead to avoid a redundant write-back to bookSubscriptions_ on a partially-destroyed object.

Implements xrpl::InfoSub::Source.

Definition at line 4640 of file NetworkOPs.cpp.

◆ unsubBookInternal()

bool xrpl::NetworkOPsImp::unsubBookInternal	(	std::uint64_t	uListener,
		Book const &	)

overridevirtual

Remove a book subscription during InfoSub teardown.

Removes only the server-side entry from subBook_. Does NOT touch InfoSub::bookSubscriptions_ because the InfoSub is being destroyed. Called by ~InfoSub() for each book in bookSubscriptions_.

Parameters

uListener	The sequence number of the subscriber being torn down.
book	The order book entry to remove.

Returns: true if the entry was present and removed, false otherwise (e.g., already removed by a concurrent RPC unsubscribe).

Note: Thread-safety: acquires bookLock_ internally.

Implements xrpl::InfoSub::Source.

Definition at line 4650 of file NetworkOPs.cpp.

◆ subManifests()

bool xrpl::NetworkOPsImp::subManifests ( InfoSub::Ref ispListener )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 4732 of file NetworkOPs.cpp.

◆ unsubManifests()

bool xrpl::NetworkOPsImp::unsubManifests ( std::uint64_t uListener )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 4740 of file NetworkOPs.cpp.

◆ pubManifest()

void xrpl::NetworkOPsImp::pubManifest ( Manifest const & mo )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 2409 of file NetworkOPs.cpp.

◆ subTransactions()

bool xrpl::NetworkOPsImp::subTransactions ( InfoSub::Ref ispListener )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 4781 of file NetworkOPs.cpp.

◆ unsubTransactions()

bool xrpl::NetworkOPsImp::unsubTransactions ( std::uint64_t uListener )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 4789 of file NetworkOPs.cpp.

◆ subRTTransactions()

bool xrpl::NetworkOPsImp::subRTTransactions ( InfoSub::Ref ispListener )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 4797 of file NetworkOPs.cpp.

◆ unsubRTTransactions()

bool xrpl::NetworkOPsImp::unsubRTTransactions ( std::uint64_t uListener )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 4805 of file NetworkOPs.cpp.

◆ subValidations()

bool xrpl::NetworkOPsImp::subValidations ( InfoSub::Ref ispListener )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 4813 of file NetworkOPs.cpp.

◆ unsubValidations()

bool xrpl::NetworkOPsImp::unsubValidations ( std::uint64_t uListener )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 4827 of file NetworkOPs.cpp.

◆ subPeerStatus()

bool xrpl::NetworkOPsImp::subPeerStatus ( InfoSub::Ref ispListener )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 4835 of file NetworkOPs.cpp.

◆ unsubPeerStatus()

bool xrpl::NetworkOPsImp::unsubPeerStatus ( std::uint64_t uListener )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 4843 of file NetworkOPs.cpp.

◆ pubPeerStatus()

void xrpl::NetworkOPsImp::pubPeerStatus ( std::function< json::Value(void)> const & func )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 2705 of file NetworkOPs.cpp.

◆ subConsensus()

bool xrpl::NetworkOPsImp::subConsensus ( InfoSub::Ref ispListener )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 4851 of file NetworkOPs.cpp.

◆ unsubConsensus()

bool xrpl::NetworkOPsImp::unsubConsensus ( std::uint64_t uListener )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 4859 of file NetworkOPs.cpp.

◆ findRpcSub()

InfoSub::pointer xrpl::NetworkOPsImp::findRpcSub ( std::string const & strUrl )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 4878 of file NetworkOPs.cpp.

◆ addRpcSub()

InfoSub::pointer xrpl::NetworkOPsImp::addRpcSub	(	std::string const &	strUrl,
		InfoSub::Ref	rspEntry )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 4885 of file NetworkOPs.cpp.

◆ tryRemoveRpcSub()

bool xrpl::NetworkOPsImp::tryRemoveRpcSub ( std::string const & strUrl )

overridevirtual

Implements xrpl::InfoSub::Source.

Definition at line 4895 of file NetworkOPs.cpp.

◆ findRpcSubLocked()

InfoSub::pointer xrpl::NetworkOPsImp::findRpcSubLocked ( std::string const & strUrl )

Look up an RPC subscription without taking streamLock_.

Callers MUST already hold streamLock_. This exists so tryRemoveRpcSub can reuse the lookup while holding the lock; the plain std::mutex is not recursive, so calling the public findRpcSub (which locks) from under the lock would self-deadlock.

Parameters

strUrl The subscription URL key into rpcSubMap_.

Returns: The matching InfoSub, or an empty pointer if not found.

Definition at line 4866 of file NetworkOPs.cpp.

◆ journal()

beast::Journal const & xrpl::NetworkOPsImp::journal ( ) const

overridevirtual

Journal used by InfoSub for diagnostics that occur after the owning subsystem (e.g.

application-level Logs) is the only surviving sink — primarily destructor-time cleanup failures.

Implements xrpl::InfoSub::Source.

Definition at line 677 of file NetworkOPs.cpp.

◆ stop()

void xrpl::NetworkOPsImp::stop ( )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 683 of file NetworkOPs.cpp.

◆ stateAccounting()

void xrpl::NetworkOPsImp::stateAccounting ( json::Value & obj )

overridevirtual

Implements xrpl::NetworkOPs.

Definition at line 4820 of file NetworkOPs.cpp.

◆ setTimer()

void xrpl::NetworkOPsImp::setTimer	(	boost::asio::steady_timer &	timer,
		std::chrono::milliseconds const &	expiryTime,
		std::function< void()>	onExpire,
		std::function< void()>	onError )

private

Definition at line 1174 of file NetworkOPs.cpp.

◆ setHeartbeatTimer()

void xrpl::NetworkOPsImp::setHeartbeatTimer ( )

private

Definition at line 1204 of file NetworkOPs.cpp.

◆ setClusterTimer()

void xrpl::NetworkOPsImp::setClusterTimer ( )

private

Definition at line 1216 of file NetworkOPs.cpp.

◆ processHeartbeatTimer()

void xrpl::NetworkOPsImp::processHeartbeatTimer ( )

private

Definition at line 1243 of file NetworkOPs.cpp.

◆ processClusterTimer()

void xrpl::NetworkOPsImp::processClusterTimer ( )

private

Definition at line 1325 of file NetworkOPs.cpp.

◆ transJson()

MultiApiJson xrpl::NetworkOPsImp::transJson	(	std::shared_ptr< STTx const > const &	transaction,
		TER	result,
		bool	validated,
		std::shared_ptr< ReadView const > const &	ledger,
		std::optional< std::reference_wrapper< TxMeta const > >	meta )

private

Definition at line 3484 of file NetworkOPs.cpp.

◆ pubValidatedTransaction()

void xrpl::NetworkOPsImp::pubValidatedTransaction	(	std::shared_ptr< ReadView const > const &	ledger,
		AcceptedLedgerTx const &	transaction,
		bool	last )

private

Definition at line 3586 of file NetworkOPs.cpp.

◆ pubAccountTransaction()

void xrpl::NetworkOPsImp::pubAccountTransaction	(	std::shared_ptr< ReadView const > const &	ledger,
		AcceptedLedgerTx const &	transaction,
		bool	last )

private

Definition at line 3733 of file NetworkOPs.cpp.

◆ pubBookTransaction()

void xrpl::NetworkOPsImp::pubBookTransaction	(	AcceptedLedgerTx const &	transaction,
		MultiApiJson const &	jvObj )

private

Fan transaction notifications out to all book subscribers.

Extracts the set of order books affected by transaction, then delivers jvObj to every live subscriber of those books.

Uses a two-pass design to keep bookLock_ hold time short:

Under bookLock_, collect strong InfoSub pointers for all live subscribers and prune any expired weak_ptrs encountered.
Release bookLock_, then call send() on each collected pointer.

Parameters

transaction	The accepted ledger transaction to inspect.
jvObj	JSON representation of the transaction to deliver.

Note: Thread-safety: acquires bookLock_ for the collection pass only. send() is intentionally called outside the lock to avoid blocking other book sub/unsub/publish paths while I/O is in progress.; Contention: bookLock_ guards only book subscriptions, so this pass no longer competes with account or stream traffic. On high-throughput nodes processing multi-hop payments that touch many offer nodes, it still holds bookLock_ longer than the old per-book BookListeners locks did. This is an accepted trade-off for lock-domain simplicity.

Definition at line 3655 of file NetworkOPs.cpp.

◆ pubProposedAccountTransaction()

void xrpl::NetworkOPsImp::pubProposedAccountTransaction	(	std::shared_ptr< ReadView const > const &	ledger,
		std::shared_ptr< STTx const > const &	transaction,
		TER	result )

private

Definition at line 3867 of file NetworkOPs.cpp.

◆ publishLedgerStreams()

void xrpl::NetworkOPsImp::publishLedgerStreams	(	std::shared_ptr< ReadView const > const &	lpAccepted,
		std::shared_ptr< AcceptedLedger const > const &	alpAccepted )

private

Send the ledgerClosed and book-changes stream updates for a ledger.

Takes streamLock_ only.

Definition at line 3340 of file NetworkOPs.cpp.

◆ kickoffAccountHistory()

void xrpl::NetworkOPsImp::kickoffAccountHistory ( std::shared_ptr< AcceptedLedger const > const & alpAccepted )

private

On the first published ledger only, start the delayed account-history streaming for any subscriptions that were registered before a validated ledger existed.

Takes accountLock_ only.

Definition at line 3416 of file NetworkOPs.cpp.

◆ pubServer()

void xrpl::NetworkOPsImp::pubServer ( )

private

Definition at line 2491 of file NetworkOPs.cpp.

◆ pubConsensus()

void xrpl::NetworkOPsImp::pubConsensus ( ConsensusPhase phase )

private

Definition at line 2560 of file NetworkOPs.cpp.

◆ pubMPTTransaction()

void xrpl::NetworkOPsImp::pubMPTTransaction	(	AcceptedLedgerTx const &	transaction,
		MultiApiJson const &	jvObj )

private

Definition at line 4144 of file NetworkOPs.cpp.

◆ getHostId()

std::string xrpl::NetworkOPsImp::getHostId ( bool forAdmin )

private

Definition at line 1145 of file NetworkOPs.cpp.

◆ subAccountHistoryStart()

void xrpl::NetworkOPsImp::subAccountHistoryStart	(	std::shared_ptr< ReadView const > const &	ledger,
		SubAccountHistoryInfoWeak &	subInfo )

private

Note: called while holding accountLock_ (it only touches subAccountHistory_ and posts a JobQueue task; it never reacquires a subscription lock nor touches the stream maps).

Definition at line 4498 of file NetworkOPs.cpp.

◆ addAccountHistoryJob()

void xrpl::NetworkOPsImp::addAccountHistoryJob ( SubAccountHistoryInfoWeak subInfo )

private

Definition at line 4271 of file NetworkOPs.cpp.

◆ setAccountHistoryJobTimer()

void xrpl::NetworkOPsImp::setAccountHistoryJobTimer ( SubAccountHistoryInfoWeak subInfo )

private

Definition at line 1230 of file NetworkOPs.cpp.

◆ cleanupSubscriptionMap()

template<typename OuterMap, typename BeforeErase>

void xrpl::NetworkOPsImp::cleanupSubscriptionMap	(	std::uint64_t	seq,
		HashSet< AccountID > const &	accounts,
		OuterMap &	outerMap,
		BeforeErase &&	beforeErase )

private

Erase one connection's entries from a subscription map in accountLock_-bounded chunks.

Shared engine behind cleanupAccountSubscriptions and cleanupAccountHistorySubscriptions: both walk accounts, and for each remove this connection's seq from the inner per-account map, dropping the outer entry once its last subscriber leaves. The lock is released between chunks so a competing publish can interleave; no iterator is held across the unlock, so a concurrent mutation cannot dangle.

Template Parameters

OuterMap	HashMap<AccountID, HashMap<seq, value>>.
BeforeErase	Invoked with the inner value about to be erased, for per-entry teardown the plain account maps do not need (the history map uses it to stop its paging job).

Parameters

seq	The disconnecting connection's subscription id.
accounts	The accounts this connection was subscribed to.
outerMap	The subscription map to erase from.
beforeErase	Called on each inner value just before it is erased. See kAccountCleanupChunk.

Definition at line 4029 of file NetworkOPs.cpp.

◆ cleanupAccountSubscriptions()

void xrpl::NetworkOPsImp::cleanupAccountSubscriptions	(	std::uint64_t	seq,
		HashSet< AccountID > const &	accounts,
		SubInfoMapType &	subMap )

private

Erase one connection's entries from the given account map (subAccount_ or subRTAccount_) in accountLock_-bounded chunks.

The caller selects the map, so this need not know about the real-time/normal distinction. Keyed on seq, so it only removes the disconnecting connection's entries. See kAccountCleanupChunk.

Definition at line 4069 of file NetworkOPs.cpp.

◆ cleanupAccountHistorySubscriptions()

void xrpl::NetworkOPsImp::cleanupAccountHistorySubscriptions	(	std::uint64_t	seq,
		HashSet< AccountID > const &	accounts )

private

Erase one connection's entries from subAccountHistory_ in accountLock_-bounded chunks.

Keyed on seq. See kAccountCleanupChunk.

Definition at line 4079 of file NetworkOPs.cpp.

◆ collectMetrics()

void xrpl::NetworkOPsImp::collectMetrics ( )

private

Definition at line 5322 of file NetworkOPs.cpp.

◆ doFailHard()

FailHard xrpl::NetworkOPs::doFailHard ( bool noMeansDont )

staticinherited

Definition at line 88 of file NetworkOPs.h.

Member Data Documentation

◆ kStates

std::array< char const *, 5 > const xrpl::NetworkOPsImp::kStates = kStateNames

staticprivate

Definition at line 202 of file NetworkOPs.cpp.

◆ kAccountCleanupChunk

std::size_t xrpl::NetworkOPsImp::kAccountCleanupChunk = 4096

staticconstexprprivate

Maximum number of account entries erased per accountLock_ acquisition during disconnect-time cleanup.

The cleanup erase loops drop and reacquire accountLock_ after every chunk of this many accounts, bounding how long a large teardown holds the lock. A concurrent publish may interleave between chunks; that is safe because publishing tolerates a partially-cleaned map (a dead subscriber is simply not notified).

Definition at line 885 of file NetworkOPs.cpp.

◆ registry_

std::reference_wrapper<ServiceRegistry> xrpl::NetworkOPsImp::registry_

private

Definition at line 936 of file NetworkOPs.cpp.

◆ journal_

beast::Journal xrpl::NetworkOPsImp::journal_

private

Definition at line 937 of file NetworkOPs.cpp.

◆ localTX_

std::unique_ptr<LocalTxs> xrpl::NetworkOPsImp::localTX_

private

Definition at line 939 of file NetworkOPs.cpp.

◆ accountLock_

std::mutex xrpl::NetworkOPsImp::accountLock_

private

Guards subAccount_, subRTAccount_, subAccountHistory_.

Definition at line 952 of file NetworkOPs.cpp.

◆ bookLock_

std::mutex xrpl::NetworkOPsImp::bookLock_

private

Guards subBook_.

Definition at line 953 of file NetworkOPs.cpp.

◆ mptLock_

std::mutex xrpl::NetworkOPsImp::mptLock_

private

Guards subMPT_.

Definition at line 954 of file NetworkOPs.cpp.

◆ streamLock_

std::mutex xrpl::NetworkOPsImp::streamLock_

private

Guards streamMaps_[] and rpcSubMap_.

Definition at line 955 of file NetworkOPs.cpp.

◆ mode_

std::atomic<OperatingMode> xrpl::NetworkOPsImp::mode_

private

Definition at line 957 of file NetworkOPs.cpp.

◆ needNetworkLedger_

std::atomic<bool> xrpl::NetworkOPsImp::needNetworkLedger_ {false}

private

Definition at line 959 of file NetworkOPs.cpp.

◆ amendmentBlocked_

std::atomic<bool> xrpl::NetworkOPsImp::amendmentBlocked_ {false}

private

Definition at line 960 of file NetworkOPs.cpp.

◆ amendmentWarned_

std::atomic<bool> xrpl::NetworkOPsImp::amendmentWarned_ {false}

private

Definition at line 961 of file NetworkOPs.cpp.

◆ unlBlocked_

std::atomic<bool> xrpl::NetworkOPsImp::unlBlocked_ {false}

private

Definition at line 962 of file NetworkOPs.cpp.

◆ waitHandlerCounter_

ClosureCounter<void, boost::system::error_code const&> xrpl::NetworkOPsImp::waitHandlerCounter_

private

Definition at line 964 of file NetworkOPs.cpp.

◆ heartbeatTimer_

boost::asio::steady_timer xrpl::NetworkOPsImp::heartbeatTimer_

private

Definition at line 965 of file NetworkOPs.cpp.

◆ clusterTimer_

boost::asio::steady_timer xrpl::NetworkOPsImp::clusterTimer_

private

Definition at line 966 of file NetworkOPs.cpp.

◆ accountHistoryTxTimer_

boost::asio::steady_timer xrpl::NetworkOPsImp::accountHistoryTxTimer_

private

Definition at line 967 of file NetworkOPs.cpp.

◆ consensus_

RCLConsensus xrpl::NetworkOPsImp::consensus_

private

Definition at line 969 of file NetworkOPs.cpp.

◆ validatorPK_

std::optional<PublicKey> const xrpl::NetworkOPsImp::validatorPK_

private

Definition at line 971 of file NetworkOPs.cpp.

◆ validatorMasterPK_

std::optional<PublicKey> const xrpl::NetworkOPsImp::validatorMasterPK_

private

Definition at line 972 of file NetworkOPs.cpp.

◆ lastConsensusPhase_

ConsensusPhase xrpl::NetworkOPsImp::lastConsensusPhase_ {ConsensusPhase::Open}

private

Definition at line 974 of file NetworkOPs.cpp.

◆ ledgerMaster_

LedgerMaster& xrpl::NetworkOPsImp::ledgerMaster_

private

Definition at line 976 of file NetworkOPs.cpp.

◆ subAccount_

SubInfoMapType xrpl::NetworkOPsImp::subAccount_

private

Definition at line 989 of file NetworkOPs.cpp.

◆ subRTAccount_

SubInfoMapType xrpl::NetworkOPsImp::subRTAccount_

private

Definition at line 990 of file NetworkOPs.cpp.

◆ subBook_

SubBookMapType xrpl::NetworkOPsImp::subBook_

private

Guarded by bookLock_.

Definition at line 991 of file NetworkOPs.cpp.

◆ subMPT_

SubMPTInfoMapType xrpl::NetworkOPsImp::subMPT_

private

Guarded by mptLock_.

Definition at line 992 of file NetworkOPs.cpp.

◆ rpcSubMap_

SubRpcMapType xrpl::NetworkOPsImp::rpcSubMap_

private

Definition at line 994 of file NetworkOPs.cpp.

◆ subAccountHistory_

SubAccountHistoryMapType xrpl::NetworkOPsImp::subAccountHistory_

private

Definition at line 996 of file NetworkOPs.cpp.

◆ streamMaps_

std::array<SubMapType, SubTypes::SLastEntry> xrpl::NetworkOPsImp::streamMaps_

private

One weak_ptr subscriber map per stream type.

Guarded by streamLock_; subject to its deferred-destruction rule (see pubServer).

Definition at line 1017 of file NetworkOPs.cpp.

◆ lastFeeSummary_

ServerFeeSummary xrpl::NetworkOPsImp::lastFeeSummary_

private

Definition at line 1019 of file NetworkOPs.cpp.

◆ jobQueue_

JobQueue& xrpl::NetworkOPsImp::jobQueue_

private

Definition at line 1021 of file NetworkOPs.cpp.

◆ standalone_

bool const xrpl::NetworkOPsImp::standalone_

private

Definition at line 1024 of file NetworkOPs.cpp.

◆ minPeerCount_

std::size_t const xrpl::NetworkOPsImp::minPeerCount_

private

Definition at line 1027 of file NetworkOPs.cpp.

◆ cond_

std::condition_variable xrpl::NetworkOPsImp::cond_

private

Definition at line 1030 of file NetworkOPs.cpp.

◆ mutex_

std::mutex xrpl::NetworkOPsImp::mutex_

private

Definition at line 1031 of file NetworkOPs.cpp.

◆ dispatchState_

DispatchState xrpl::NetworkOPsImp::dispatchState_ = DispatchState::None

private

Definition at line 1032 of file NetworkOPs.cpp.

◆ transactions_

std::vector<TransactionStatus> xrpl::NetworkOPsImp::transactions_

private

Definition at line 1033 of file NetworkOPs.cpp.

◆ accounting_

StateAccounting xrpl::NetworkOPsImp::accounting_

private

Definition at line 1035 of file NetworkOPs.cpp.

◆ pendingValidations_

std::set<UInt256> xrpl::NetworkOPsImp::pendingValidations_

private

Definition at line 1037 of file NetworkOPs.cpp.

◆ validationsMutex_

std::mutex xrpl::NetworkOPsImp::validationsMutex_

private

Definition at line 1038 of file NetworkOPs.cpp.

◆ statsMutex_

std::mutex xrpl::NetworkOPsImp::statsMutex_

private

Definition at line 1076 of file NetworkOPs.cpp.

◆ stats_

Stats xrpl::NetworkOPsImp::stats_

private

Definition at line 1077 of file NetworkOPs.cpp.

Classes

Public Types

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Member Typedef Documentation

◆ SubMapType

◆ SubInfoMapType

◆ SubRpcMapType

◆ SubMPTInfoMapType

◆ SubAccountHistoryMapType

◆ SubBookMapType

◆ ClockType

Member Enumeration Documentation

◆ DispatchState

◆ SubTypes

◆ FailHard

Constructor & Destructor Documentation

◆ NetworkOPsImp()

◆ ~NetworkOPsImp()

Member Function Documentation

◆ getOperatingMode()

◆ strOperatingMode() [1/2]

◆ strOperatingMode() [2/2]

◆ submitTransaction()

◆ processTransaction()

◆ processTransactionSet()

◆ doTransactionSync()

◆ doTransactionAsync()

◆ preProcessTransaction()

◆ doTransactionSyncBatch()

◆ transactionBatch()

◆ apply()

◆ getOwnerInfo()

◆ getBookPage()

◆ processTrustedProposal()

◆ recvValidation()

◆ mapComplete()

◆ switchLastClosedLedger()

◆ checkLastClosedLedger()

◆ beginConsensus()

◆ endConsensus()

◆ setStandAlone()

◆ setStateTimer()

◆ setNeedNetworkLedger()

◆ clearNeedNetworkLedger()

◆ isNeedNetworkLedger()

◆ isFull()

◆ setMode()

◆ isBlocked()

◆ isAmendmentBlocked()

◆ setAmendmentBlocked()

◆ isAmendmentWarned()

◆ setAmendmentWarned()

◆ clearAmendmentWarned()

◆ isUNLBlocked()

◆ setUNLBlocked()

◆ clearUNLBlocked()

◆ consensusViewChange()

◆ getConsensusInfo()

◆ getServerInfo()

◆ clearLedgerFetch()

◆ getLedgerFetchInfo()

◆ acceptLedger()

◆ reportFeeChange()

◆ reportConsensusStateChange()

◆ updateLocalTx()

◆ getLocalTxCount()

◆ getBookSubscribersCount()

◆ pubLedger()

◆ pubProposedTransaction()

◆ pubValidation()

◆ subAccount()

◆ unsubAccount()

◆ unsubAccountInternal()

◆ subMPT()
